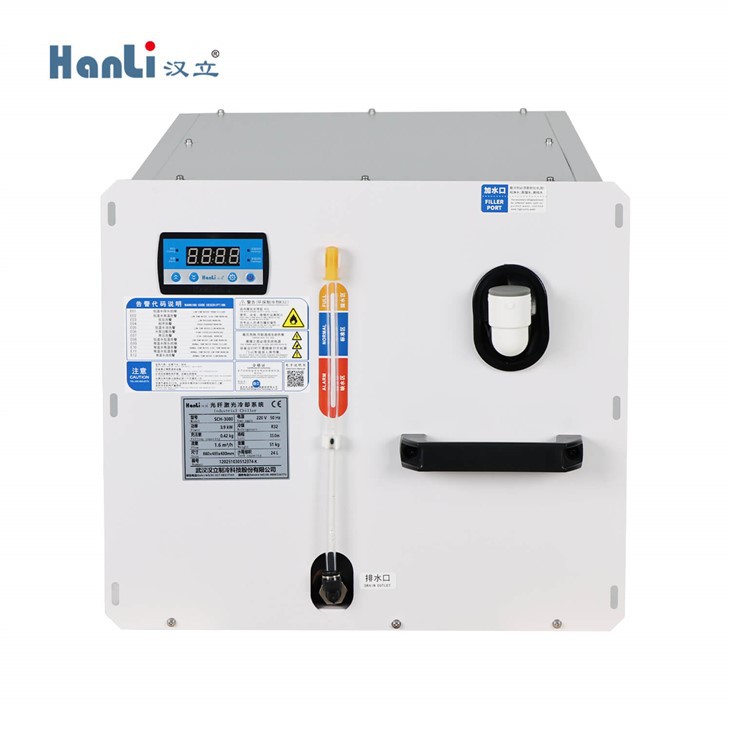

Chilling Equipment SCH-3000 for3KW Handheld Laser Welding Machine
The SCH-3000 water chiller is an ideal solution for applications that require the use of two separate temperature-controlled systems. Its advanced features and intelligent controls make it a reliable and efficient cooling solution for a variety of industrial and scientific applications The dual...
- Product Introduction
The SCH-3000 water chiller is an ideal solution for applications that require the use of two separate temperature-controlled systems.
Its advanced features and intelligent controls make it a reliable and efficient cooling solution for a variety of industrial and scientific applications
The dual water inlet and outlet ensure that both the laser and optics receive consistent and stable temperature control.
|
Model |
SCH-3000 |
|
|
Voltage & Frequency |
AC 1P 220 V |
|
|
Working power |
50Hz |
60Hz |
|
Working current |
14A |
14 A |
|
Machine power |
3.1 kW |
3.1 kW |
|
Application environment |
0℃＜ambient temperature＜45℃, Relative humidity＜95% |
|
|
Tempe.control accuracy |
±1 ℃ |
|
|
Coolant |
R32 |
|
|
Cooling capacity |
7.3 kW |
|
|
Electric heating power |
800W (normal temperature) |
|
|
Rated flow of water pump |
1.6 m³/h |
|
|
Max.pump lift |
68m |
|
|
Pump power |
0.36 kW |
|
|
Tank volume |
24 L |
|
|
Laser nozzle interface |
G1/2*φ20 mm Pagoda joint |
|
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
|
|
Dimension |
860×485×430 (mm) |
|
|
N.W |
48 kg |
|
|
Packing size |
920×510×560(mm) |
|
|
G.W |
57 kg |
|
|
Matching laser source |
3000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
|
