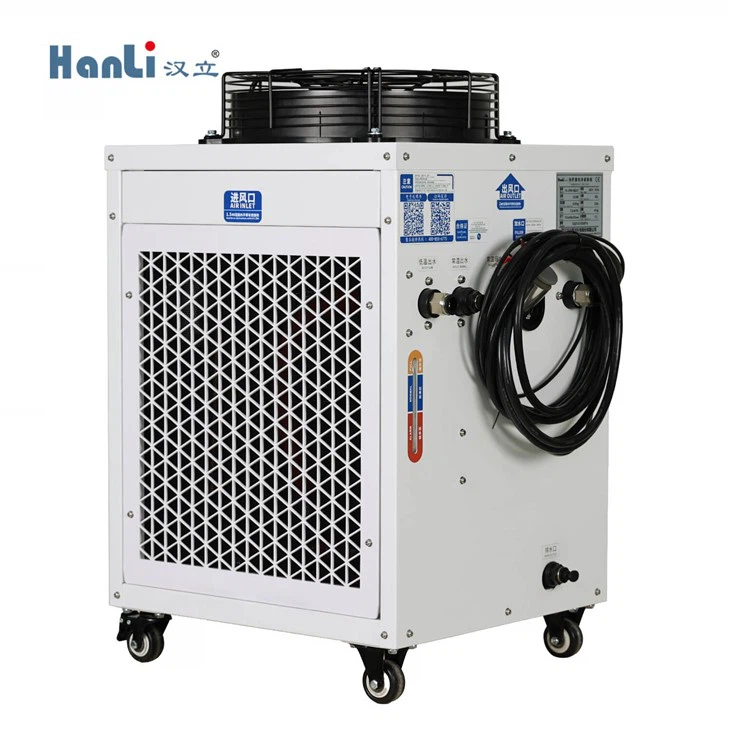

2000w Water Chiller for Laser Cutting Machine K Model
A laser chiller is the main component and the most important device used in managing laser temperature to insure high quality performance and long life of industrial lasers, medical lasers, military lasers and other laser systems.
- Product Introduction
Product Features
A laser chiller is the main component and the most important device used in managing laser temperature to insure high quality performance and long life of industrial lasers, medical lasers, military lasers and other laser systems.
These chillers are designed to control the temperature of water or other cooling fluids that circulate through the laser system. The chiller typically contains a compressor, heat exchanger, and circulation pump to maintain optimal temperatures for the laser.
What are the benefits of using a laser chiller?
Using a chiller for lasers offers several benefits, including:
1. Improved performance: Lasers operate at their best when they are at a stable temperature. By using a chiller, you can ensure that the laser performs consistently and delivers the highest-quality results.
2. Increased lifespan: High temperatures can cause damage to laser components over time. By using a chiller to manage temperatures, you can extend the lifespan of your laser.
3. Lower maintenance costs: Lasers that operate at higher temperatures may require more frequent maintenance to keep them functioning properly. By using a chiller, you can reduce the frequency of maintenance and repair, saving you time and money.
4. Energy efficiency: Using a chiller can also help to reduce energy consumption in the laser system. By maintaining the temperature of the cooling fluid, the chiller can help to reduce the load on the laser's cooling system and reduce overall energy usage.
In conclusion, a laser chiller is an essential component for managing the temperature of a laser system. By using a chiller, you can improve performance, increase lifespan, lower maintenance costs, and improve energy efficiency. When selecting a chiller, it's important to choose one that is the right size and capacity for your specific laser system to ensure optimal performance.
2000w Hanli Chiller Specification
|
|
Uint |
|
HL-2000-QG2/2 |
|
Voltage & Frequency |
1p 220V/50Hz |
||
|
Rated power |
kW |
2.8 |
|
|
maximum current |
A |
12.8 |
|
|
Cooling capacity |
kW |
6.7 |
|
|
Compressor power |
kW |
1.32 |
|
|
Electric heating power |
kW |
0.9 |
|
|
Pump power |
kW |
0.36 |
|
|
Fan power |
kW |
0.1 |
|
|
Maximum air volume of the fan |
m³/h |
1920 |
|
|
Rated Flow of the low temperature end |
L/min |
22～24 |
|
|
Rated pressure of the low temperature end |
bar |
3.0 |
|
|
Maximum pressure of low temperature end |
bar |
5.6 |
|
|
Dimensions of the low temperature end interface |
G1/2-Φ16mm quick connector |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
1.2～1.5 |
|
|
Rated pressure of the high temperature end |
bar |
3.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ10mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5℃ |
|
|
Water Tank |
L |
15 |
|
|
Application environment |
℃ |
-20～40℃ |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈64 |
|
|
Machine dimension |
mm |
515×430×725 |
|
|
Net Weight |
kg |
41 |
|
|
Packing dimension |
mm |
555×490×870 |
|
|
Gross Weight |
kg |
47 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
