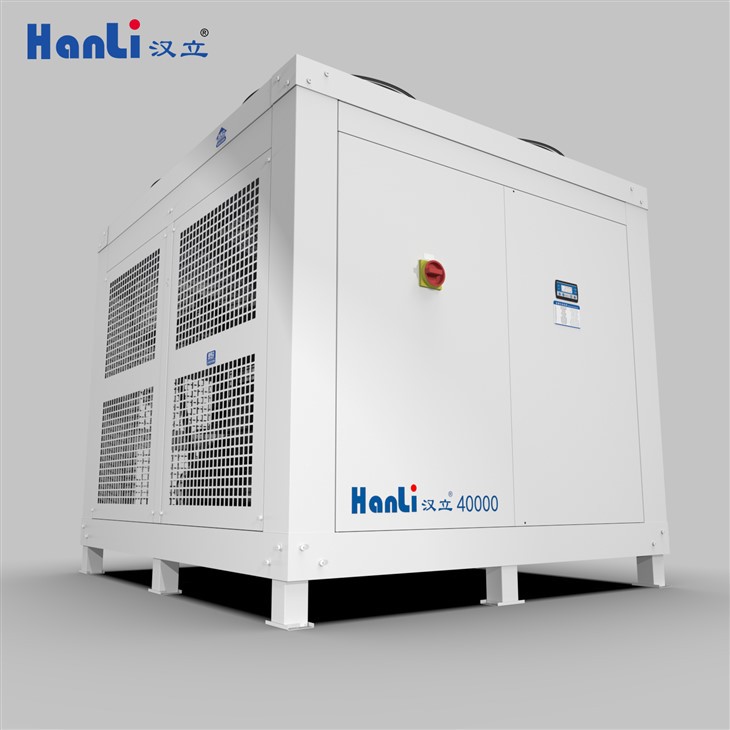

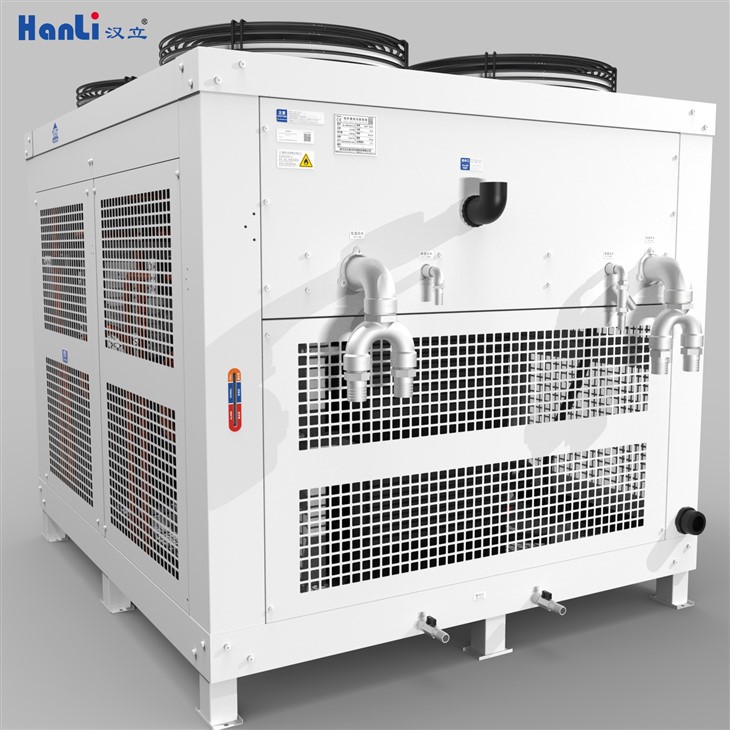

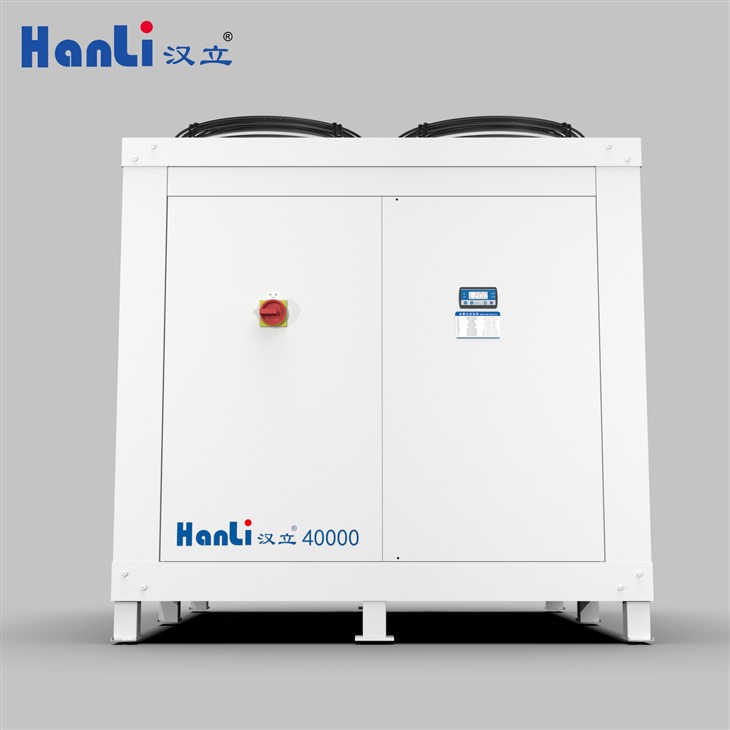

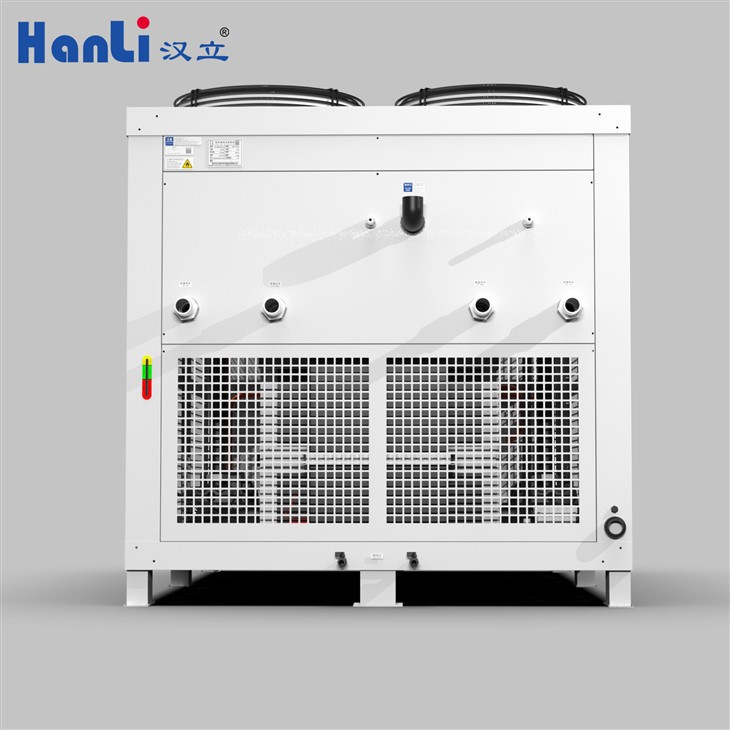

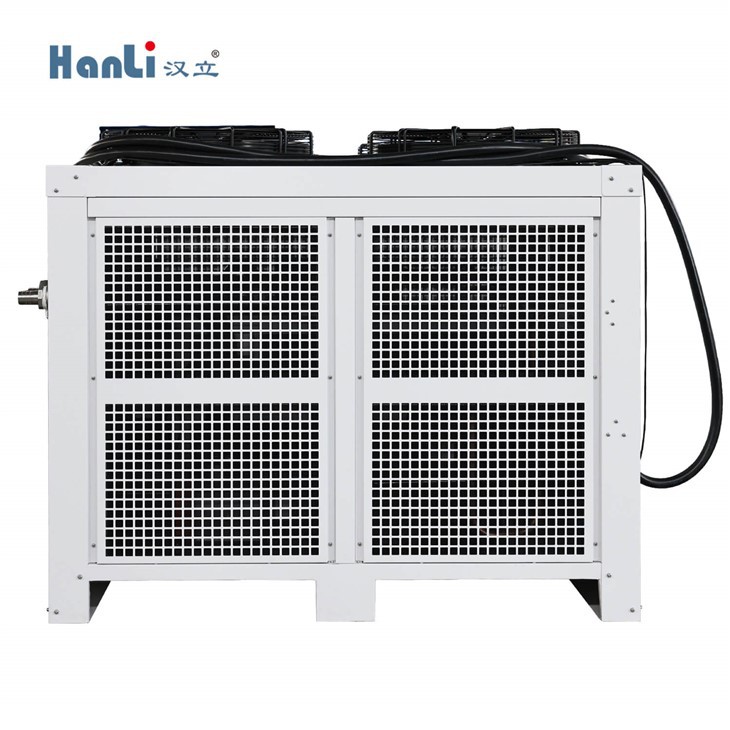

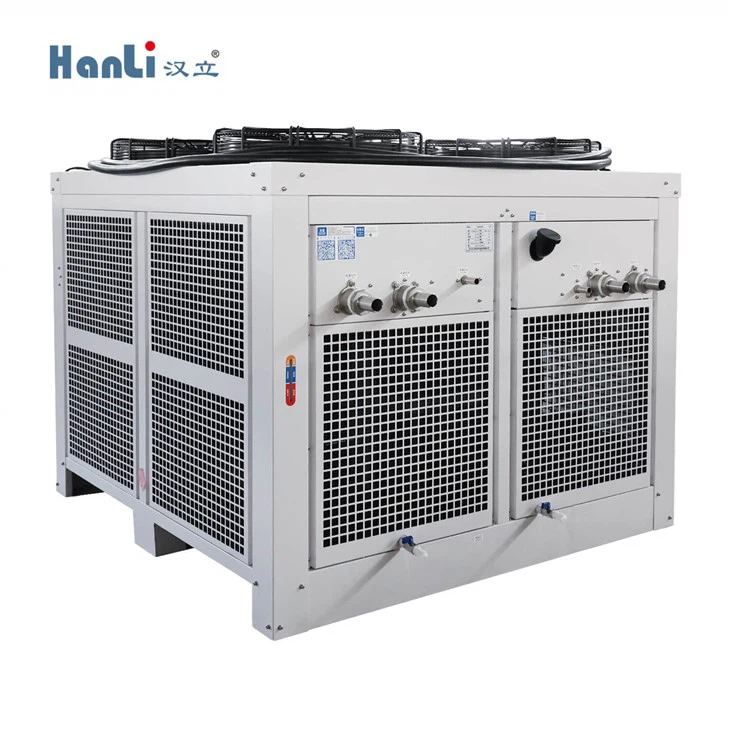

Hanli Water Cooled Chillers 40000W High Efficiency
including high and low-pressure alarms, anti-freezing protection, and water flow protection. The water chiller has a compact design and is easy to install, operate, and maintain. It is suitable for cooling high-power fiber laser systems and other industrial equipment that require precise and...
- Product Introduction
including high and low-pressure alarms, anti-freezing protection, and water flow protection. The water chiller has a compact design and is easy to install, operate, and maintain. It is suitable for cooling high-power fiber laser systems and other industrial equipment that require precise and stable temperature control. With a cooling capacity of 96,000 watts, this water chiller is capable of maintaining a stable temperature range of 0-45°C. It has a high-quality compressor, evaporator, and condenser that ensure efficient and reliable cooling performance. The water chiller has a stainless steel water tank and piping that is corrosion-resistant and durable.
The HL-40000-QG2/2 is a high-performance industrial water chiller that provides optimum cooling solutions for a wide range of industrial applications.
|
|
Uint |
HL-40000-QG2/2 |
HL-40000-EH-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
|
Rated power |
kW |
40 |
42 |
|
maximum current |
A |
75 |
78 |
|
Cooling capacity |
kW |
97 |
97 |
|
Compressor power |
kW |
9.820×2 |
9.303×2 |
|
Electric heating power |
kW |
0.8/15.0 |
|
|
Pump power |
kW |
0.36/3.5×2 |
0.36/3×2 |
|
Fan power |
kW |
0.65×4 |
0.75×4 |
|
Maximum air volume of the fan |
m³/h |
8400×4 |
8450×4 |
|
Rated Flow of the low temperature end |
L/min |
≥400 |
|
|
Rated pressure of the low temperature end |
bar |
5.0 |
|
|
Maximum pressure of low temperature end |
bar |
6.5 |
|
|
Dimensions of the low temperature end interface |
G2-Φ38mm Pagoda joints*4 |
||
|
Water temperature setting range of low temperature end |
℃ |
21-26 |
|
|
Rated Flow of the high temperature end |
L/min |
5 |
|
|
Rated pressure of the high temperature end |
bar |
5.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ20mm quick connector*2 |
||
|
Water temperature setting range of high temperature end |
℃ |
26-35 |
|
|
Water temperature control accuracy |
℃ |
±1 |
|
|
Water Tank |
L |
360 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈76 |
|
|
Machine dimension |
mm |
624 |
|
|
Net Weight |
kg |
1670×1515× 1295 |
|
|
Packing dimension |
mm |
645 |
|
|
Gross Weight |
kg |
1770×1560×1335 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
