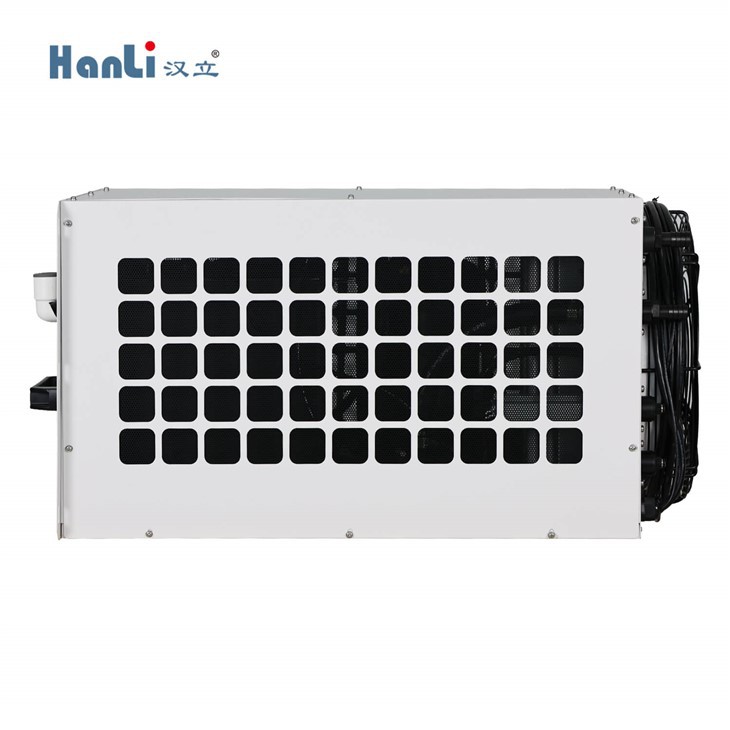

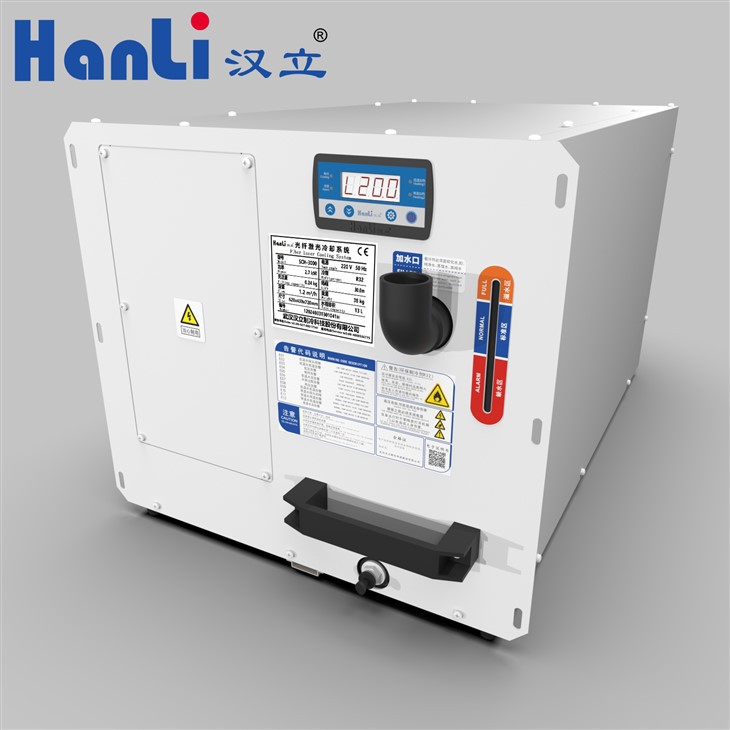

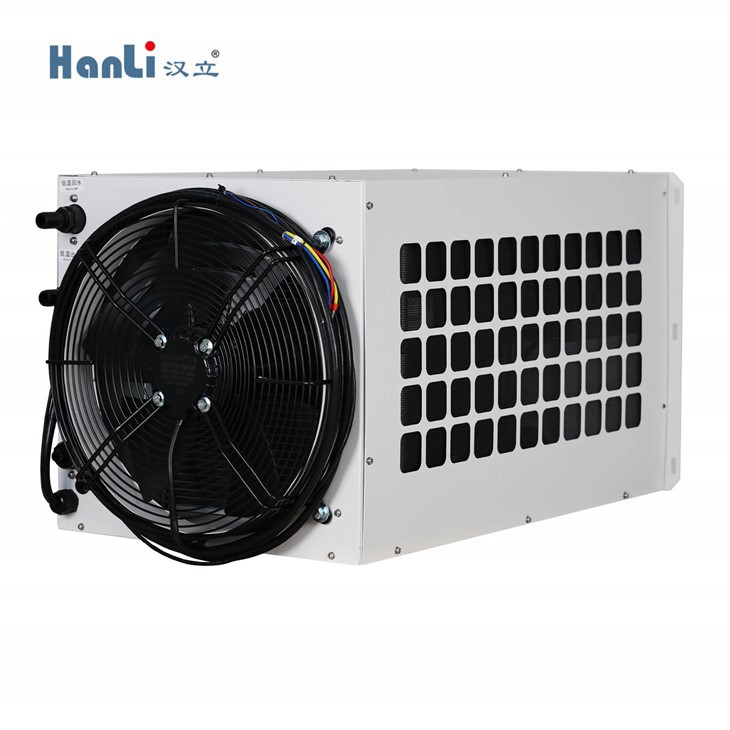

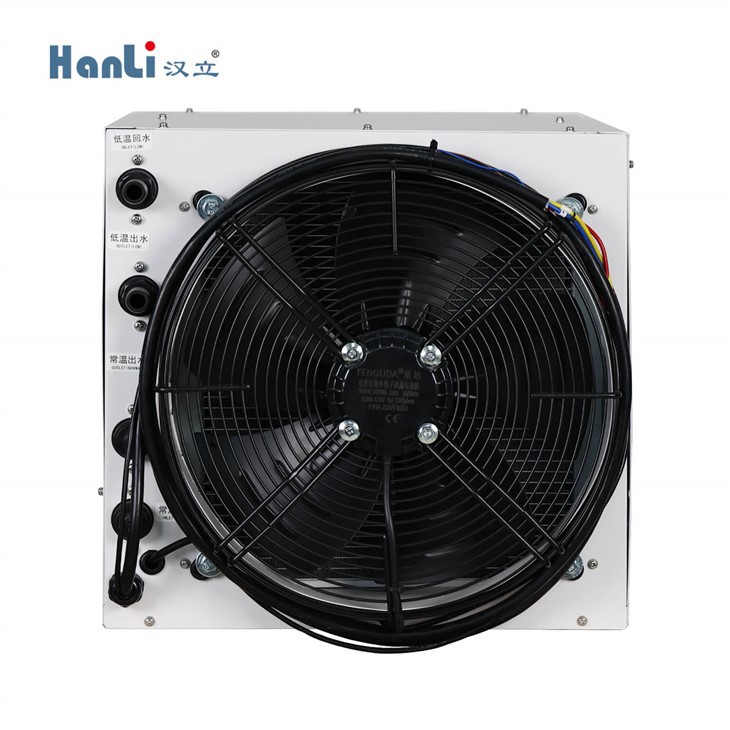

Industrial Water Cooling Chiller SCH-3000
SCH-3000 Chiller for welding machine It is a high-temperature control accuracy , refrigerant (R32) unit. It comes with a user-friendly controller interface that is easy to operate and navigate. The unit also features integrated alarm functions for added safety and convenience. Additionally, the...
- Product Introduction
SCH-3000 Chiller for welding machine
It is a high-temperature control accuracy , refrigerant (R32) unit. It comes with a user-friendly controller interface that is easy to operate and navigate.
The unit also features integrated alarm functions for added safety and convenience.

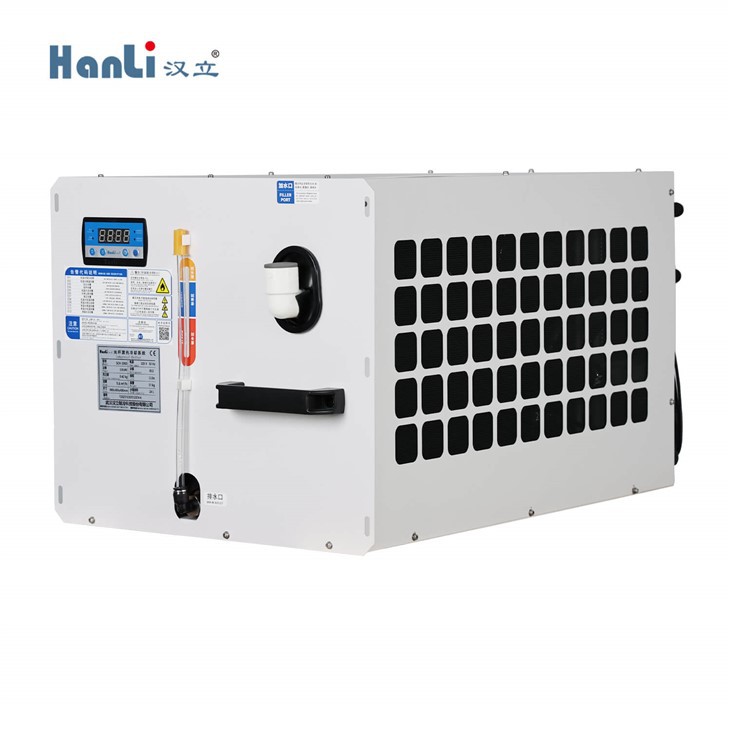

Additionally, the SCH-3000 has a back-mounted fill port and visual water level for easy access and maintenance. It is designed for efficiency and environmental protection, making it a reliable and sustainable choice.
It is ready for immediate use and provides top-notch performance and accuracy for temperature control needs.
|
Model |
SCH-3000 |
|
|
Voltage & Frequency |
AC 1P 220 V |
|
|
Working power |
50Hz |
60Hz |
|
Working current |
13 A |
13 A |
|
Machine power |
3.8 kW |
3.8 kW |
|
Application environment |
0℃＜ambient temperature＜45℃, Relative humidity＜95% |
|
|
Tempe.control accuracy |
±1 ℃ |
|
|
Coolant |
R32 |
|
|
Cooling capacity |
7.3 kW |
|
|
Electric heating power |
600W (normal temperature) |
|
|
Rated flow of water pump |
3.0 m³/h |
|
|
Max.pump lift |
45 m |
|
|
Pump power |
0.55 kW |
|
|
Tank volume |
13 L |
|
|
Laser nozzle interface |
G1/2*φ20 mm Pagoda joint |
|
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
|
|
Dimension |
860×485×430 (mm) |
|
|
N.W |
48 kg |
|
|
Packing size |
915×520×565(mm) |
|
|
G.W |
57 kg |
|
|
Matching laser source |
3000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
|
