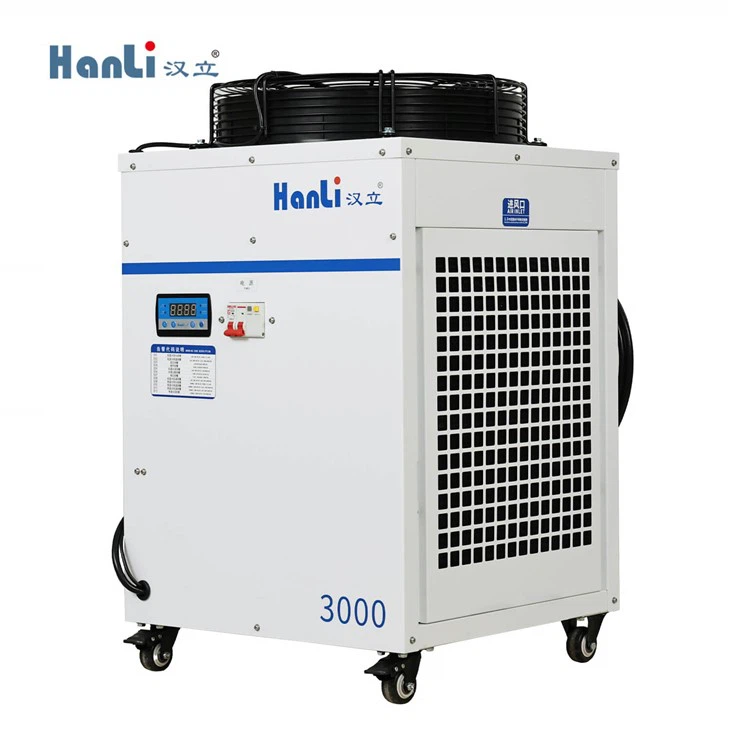

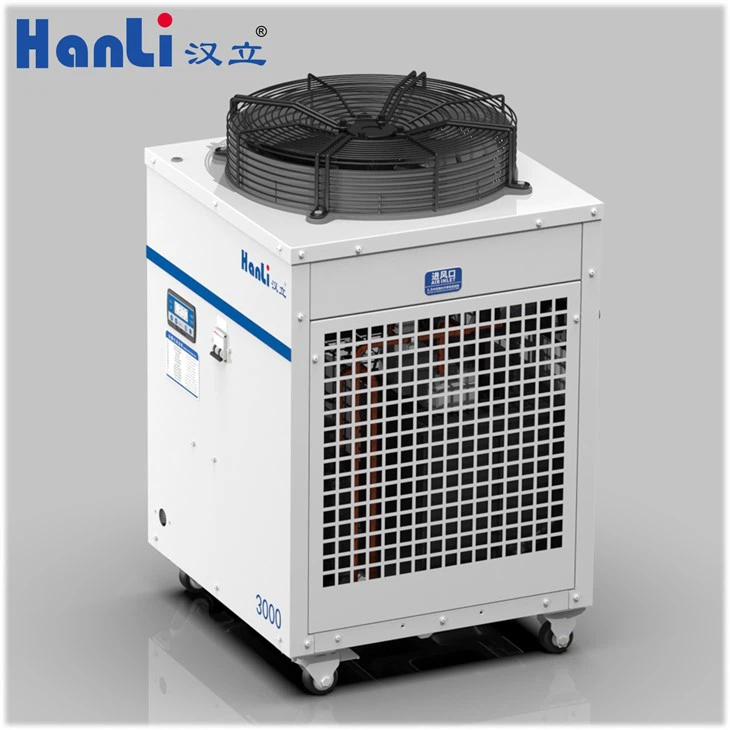

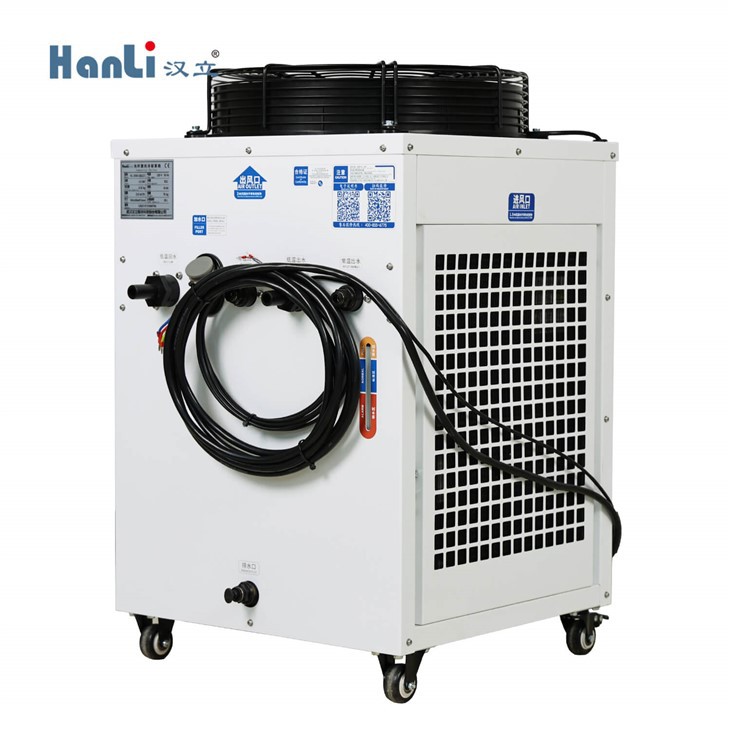

Industrial Laser Chillers Hanli 3kw

Lasers are beneficial for engraving&cutting most materials such as wood, glass, leather, and acrylic. For that reason, laser engraving/cutting machines are becoming an indispensable component of today’s production facilities, as well as small businesses.

  • Product Introduction
Product Features



*Why You Need A Laser Chiller to Protect Your Laser Cutting/Engraving Machine

Lasers are beneficial for engraving&cutting most materials such as wood, glass, leather, and acrylic. For that reason, laser engraving/cutting machines are becoming an indispensable component of today's production facilities, as well as small businesses.

and hobbyists. However, like any other machine, laser cutting and engraving machines need proper maintenance and care to ensure longevity and optimal performance. This is where a laser chiller comes in.

A laser chiller is a cooling system designed to keep the laser tube cool during operation. The laser tube is the most critical component of a laser engraving and cutting machine, and it needs to maintain a specific temperature range to prevent overheating and premature failure. A laser chiller helps to maintain this temperature range by circulating water or another coolant around the laser tube, dissipating the heat generated by the laser.

Here are some reasons why you need a laser chiller to protect your laser cutting and engraving machine:

1. Prevent overheating: Overheating is the main cause of laser tube failure. A laser chiller helps to maintain the temperature within the safe range, preventing overheating and protecting the laser tube from damage.

2. Improve accuracy and quality: Heat can cause the laser beam to deviate from its intended path, resulting in inaccurate and poor quality cuts and engravings. By keeping the laser tube cool, a laser chiller ensures the laser beam stays on course, resulting in precise and high-quality cuts and engravings.

3. Extend the life of your laser tube: Overheating and thermal stress can cause the laser tube to degrade and fail prematurely. A laser chiller helps to prevent these issues, prolonging the life of your laser tube and saving you money on replacement costs.

4. Enhance productivity: A laser chiller allows you to run your laser engraving and cutting machine for longer periods without the risk of overheating or downtime. This means you can work on more projects in less time, improving your productivity and efficiency.

In conclusion, investing in a laser chiller is a smart decision if you want to protect your laser cutting and engraving machine and ensure optimal performance and longevity. By regulating the temperature around the laser tube, a laser chiller helps to prevent overheating, improve accuracy and quality, extend the life of your laser tube, and enhance your productivity.

A high-powered laser machine's performance and lifespan depend on various factors such as frequency of use, routine cleaning, and maintenance. However, users often overlook a crucial element to guarantee their machine's long-term functionality: effective cooling.

So a good brand cooling chiller can do good to ur machine,Hanli 3000w HL-3000 is a good choice for your 3000w laser source



3000w Chiller Specification

product-83-20

product-110-18

product-139-18

Voltage & Frequency

1p 220V/50Hz

1p 220V/60Hz

maximum current

13.7A

14A

Rated power

3.8kW

4.0kW

Horsepower

2.5hp

2.5hp

Compressor power

1.98kw

1.83kw

Electric heating power

0.8Kw

Pump power

0.55kw

0.55kw

Fan power

0.18kw

0.21kw

Maximum air volume of the fan

4400m³ ./h

4400m³ ./h

Rated Flow of the low temperature end

33-36L/min

Rated pressure of the low temperature end

3.0bar

Maximum pressure of low temperature end

4.5bar

Dimensions of the low temperature end interface

Φ37.5×48-Φ20mm Pagoda joints

Water temperature setting range of low temperature end

21-32℃

Rated Flow of the high temperature end

1.2-1.5 L/min

Rated pressure of the high temperature end

3.0bar

Dimensions of the high temperature end interface

G1/2-Φ13mm quick connector

Water temperature setting range of high temperature end

26-35℃

Water temperature control accuracy

±1℃

Water Tank

20L

Application environment

5-40℃

Coolant

R32

Noise Level

≈ 75dB(A)

Net Weight

54KG

Gross Weight

58KG

Machine dimension

565×520×815mm

Packing dimension

575×570×980mm

Suitable cooling medium

Pure water , glycol

solution(concentration ≤ 30%)
