Handheld Laser Welding Machine Chiller Cost

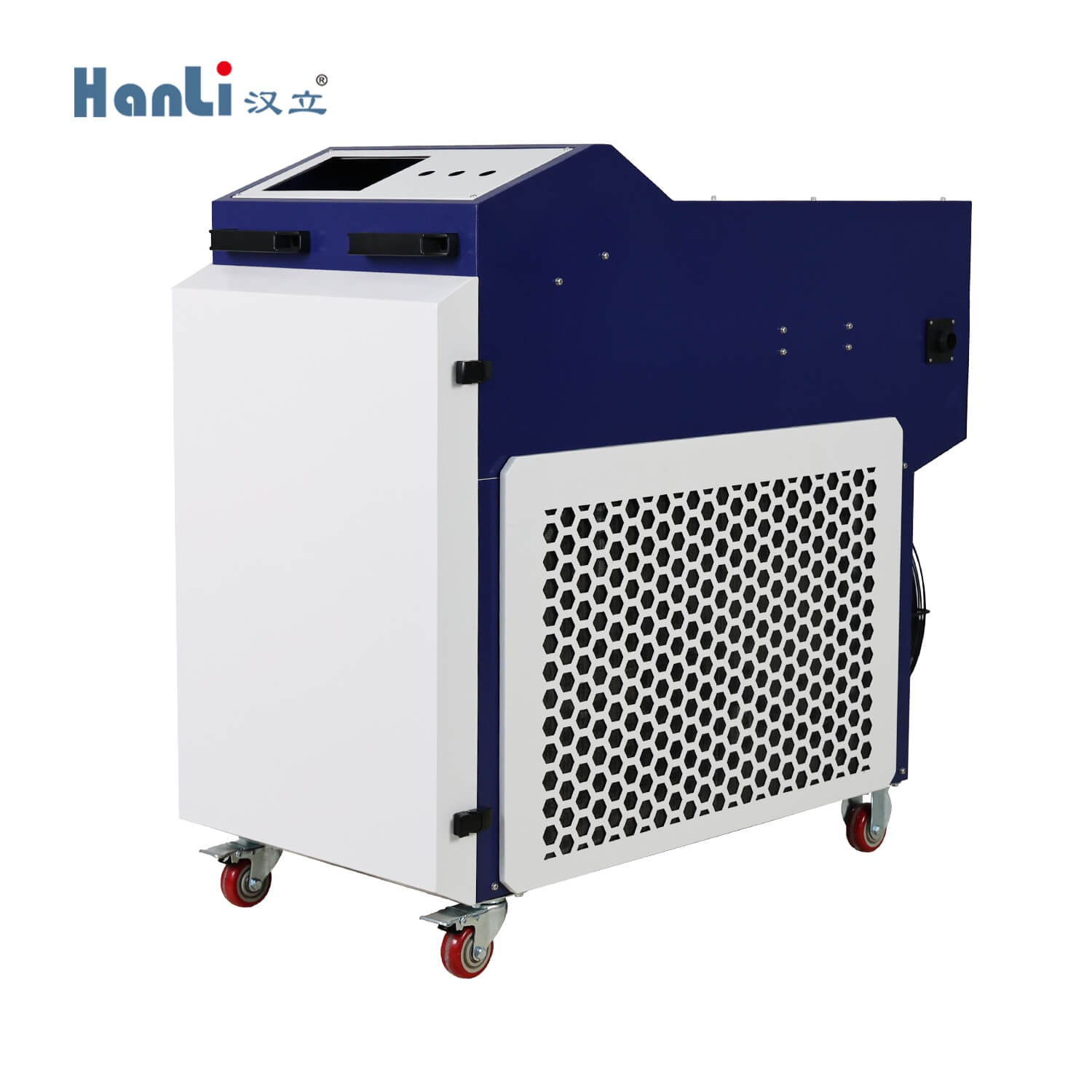

All-in-one handheld laser welding machines like the SCHYTJ-1500 are designed to make it easier for users to carry out spot welding and repair welding tasks without the need for specialized racks or equipment setups. The SCHYTJ-1500 comes with a built-in chiller, which means that users won't have to worry about mounting a separate unit to keep their laser cool. This all-in-one design also makes the machine more portable and easier to move around, which is particularly useful for repair jobs that require welding in tight or hard-to-reach spaces.
- Product Introduction
Product Features

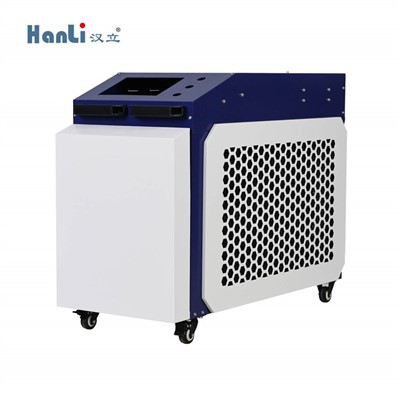

A welding chiller with a body typically refers to a cooling system designed to keep welding equipment from overheating during prolonged use. These chillers are commonly used in welding shops and factories to prevent welders from becoming too hot, and to maintain optimal welding quality.
A typical welding chiller with a body will have a cooling capacity of around 1500 watts, which is enough to cool multiple pieces of equipment at once. It will also typically have a temperature range of 10-25 degrees Celsius, which is ideal for most welding applications.
The body of the welding chiller is typically made of a durable material, such as steel or aluminum, to withstand the harsh conditions of a welding environment. The chiller will often have a compact design, with wheels for easy maneuverability and storage.
Other features of a welding chiller with a body may include a digital temperature display, programmable settings, and safety features such as automatic shut-off in case of overheating or low water levels. Some models may also have a built-in water tank or the option to connect to an external water source.
Overall, a welding chiller with a body is an essential tool for any professional welder, helping to maintain optimal welding quality and prevent equipment damage.
The SCHYTJ-1500 uses a fiber laser for welding, which is known for its efficiency and precision. This makes it ideal for welding small parts or areas that require a delicate touch. The machine is also user-friendly, with simple controls that allow users to adjust settings like power and frequency.
Overall, the SCHYTJ-1500 is a versatile and efficient handheld welding machine that offers a lot of flexibility for users. It's a good choice for anyone who needs to perform spot or repair welding tasks on a regular basis, and it's particularly useful for those who need to work in tight spaces or on delicate parts
|
Model |
SCHYTJ-1500 |
SCHYTJ-2000 |
|
|
Voltage & Frequency |
AC 1P 220 V |
||
|
Working power |
50 Hz |
50 Hz |
60 Hz |
|
Working current |
6.5 A |
10.8 A |
10.0 A |
|
Machine power |
2.1 kW |
2.4 kW |
2.2 kW |
|
Application environment |
0℃＜Ambient temperature＜45℃,relative humidity＜95% |
||
|
Tempe.control accuracy |
±1 ℃ |
||
|
Coolant |
R32 |
||
|
Cooling capacity |
4.5 kW |
5.6 kW |
|
|
Electric heating power |
400W(Normal temperature) |
400W(Normal temperature) |
|
|
Rated flow of water pump |
1.2 m³/h |
1.2 m³/h |
|
|
Max.pump lift |
30 m |
40 m |
|
|
Pump power |
0.25 kW |
0.32 kW |
|
|
Tank volume |
13 L |
||
|
Laser nozzle interface |
Φ12 Pneumatic PU pipe |
||
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
||
|
Dimension |
985×420×705(mm) |
||
|
N.W |
49 kg |
||
|
Packing size |
1030×470×855(mm) |
||
|
G.W |
58 kg |
||
|
Matching laser source |
1500W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
2000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
|
