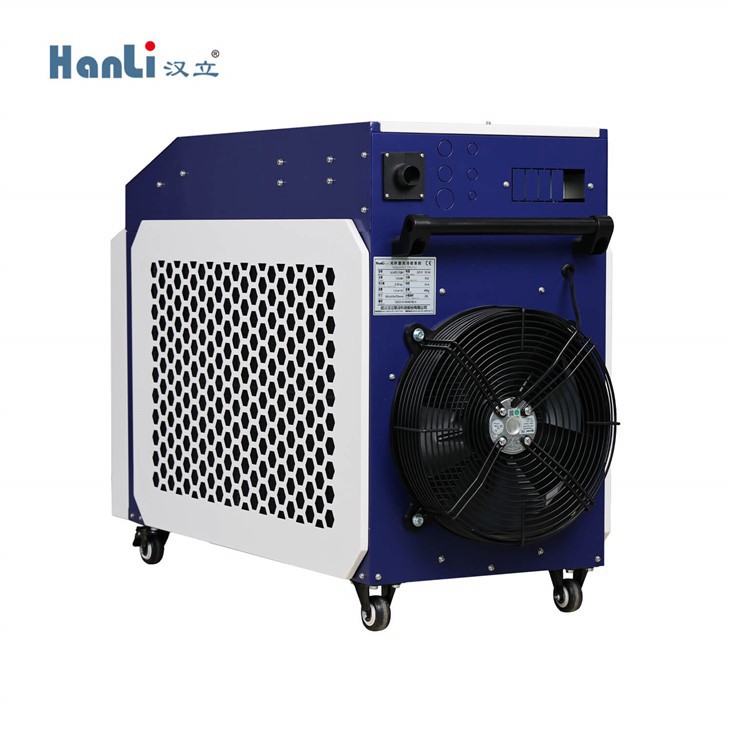

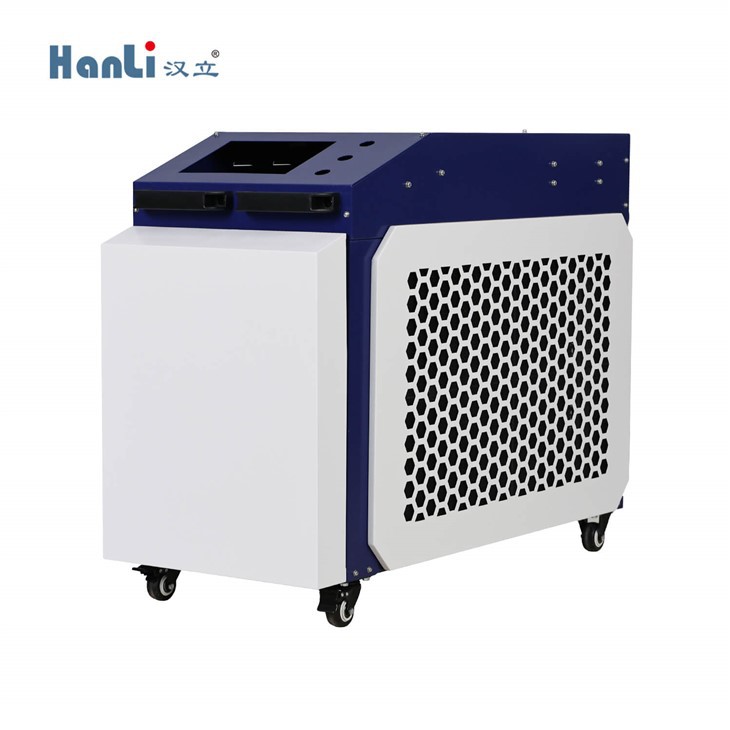

Hanli Chiller Welding Body 1500w
All-in-one handheld laser welding machine SCHYTJ-1500 is user-friendly in that users no longer need to design a rack to fit in the laser and the rack mount chiller. With built-in Hanli chiller, after installing a fiber laser for welding, it constitutes a portable and mobile handheld laser welding machine
- Product Introduction
This machine is equipped with a high-quality fiber laser source that provides stable and precise welding performance. The laser beam is delivered through the fiber optic cable, ensuring fast and efficient welding operations. Furthermore, it has a user-friendly interface that allows operators to adjust the laser power and pulse width to match the welding requirements. The all-in-one handheld laser welding machine SCHYTJ-1500 is a cost-effective and flexible solution for small to medium-sized welds.
What are the side effects of laser welding?
Here are some problems that could come up while working around laser welding equipment.
Highly-Concentrated Heat Source. If you've ever seen a sci-fi movie, you've possibly seen the exaggerated effects of high-powered lasers. ...
Welding Fumes. ...
Light Tight Enclosures.
|
Model |
SCHYTJ-1500 |
SCHYTJ-2000 |
|
|
Voltage & Frequency |
AC 1P 220 V |
||
|
Working power |
50 Hz |
50 Hz |
60 Hz |
|
Working current |
6.5 A |
10.8 A |
10.0 A |
|
Machine power |
2.1 kW |
2.4 kW |
2.2 kW |
|
Application environment |
0℃＜Ambient temperature＜45℃,relative humidity＜95% |
||
|
Tempe.control accuracy |
±1 ℃ |
||
|
Coolant |
R32 |
||
|
Cooling capacity |
4.5 kW |
5.6 kW |
|
|
Electric heating power |
400W(Normal temperature) |
400W(Normal temperature) |
|
|
Rated flow of water pump |
1.2 m³/h |
1.2 m³/h |
|
|
Max.pump lift |
30 m |
40 m |
|
|
Pump power |
0.25 kW |
0.32 kW |
|
|
Tank volume |
13 L |
||
|
Laser nozzle interface |
Φ12 Pneumatic PU pipe |
||
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
||
|
Dimension |
985×420×705(mm) |
||
|
N.W |
49 kg |
||
|
Packing size |
1030×470×855(mm) |
||
|
G.W |
58 kg |
||
|
Matching laser source |
1500W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
2000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
|
