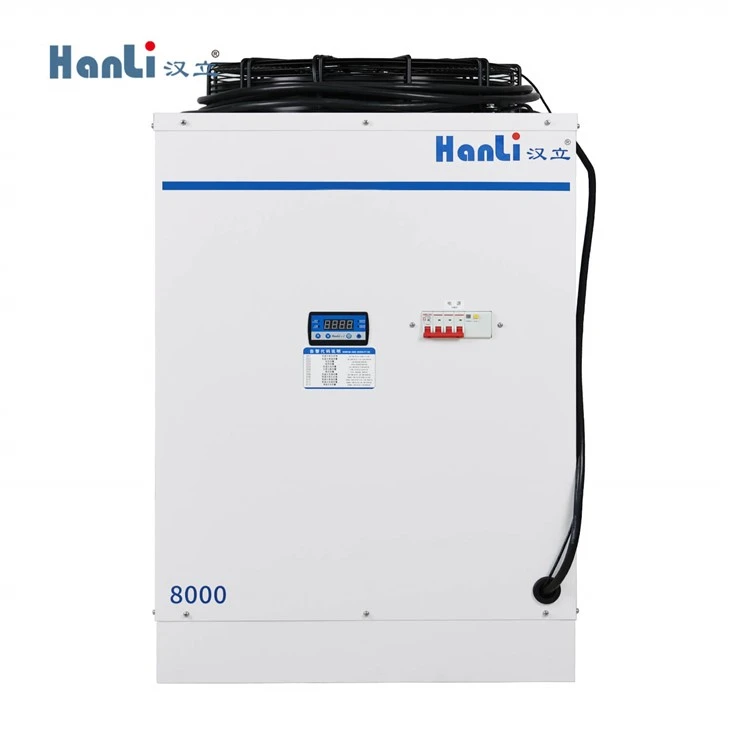

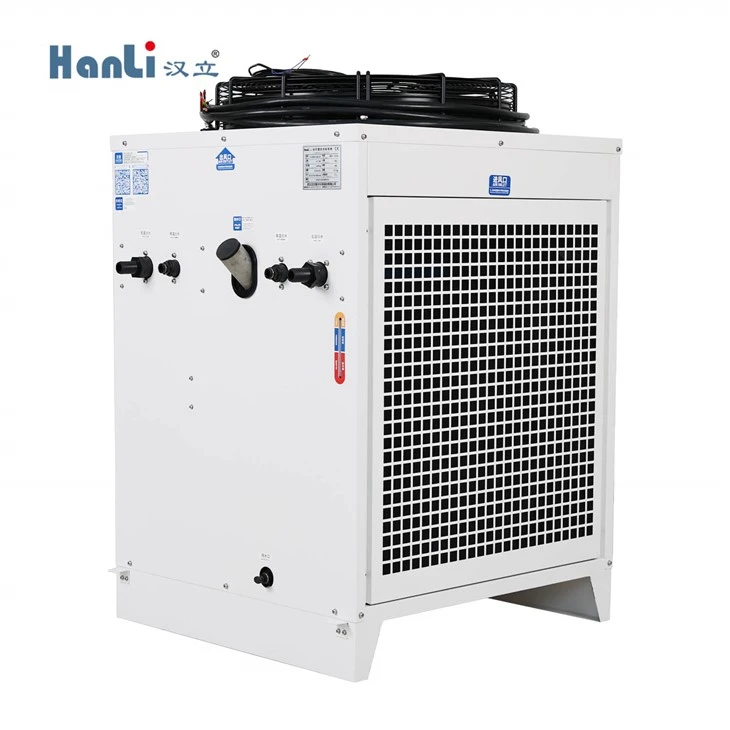

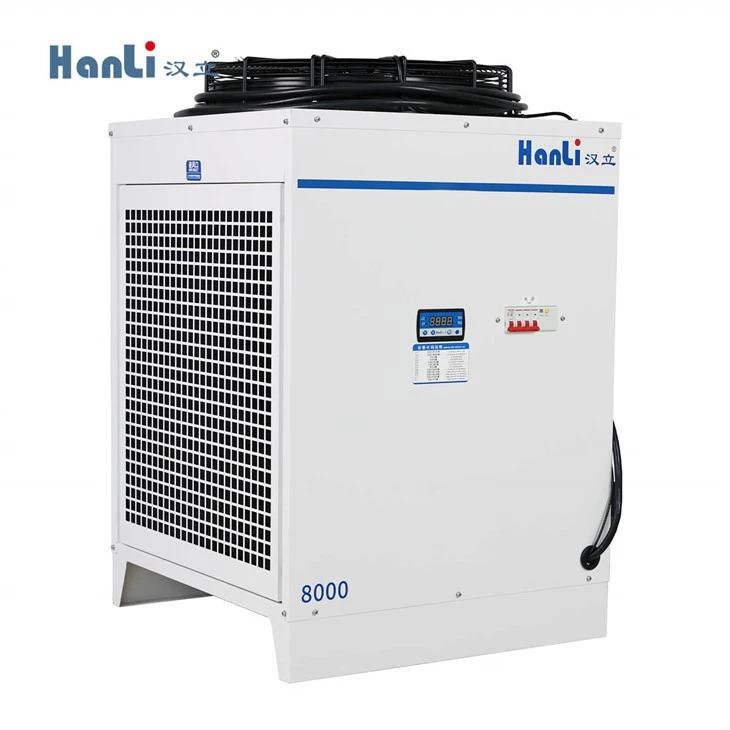

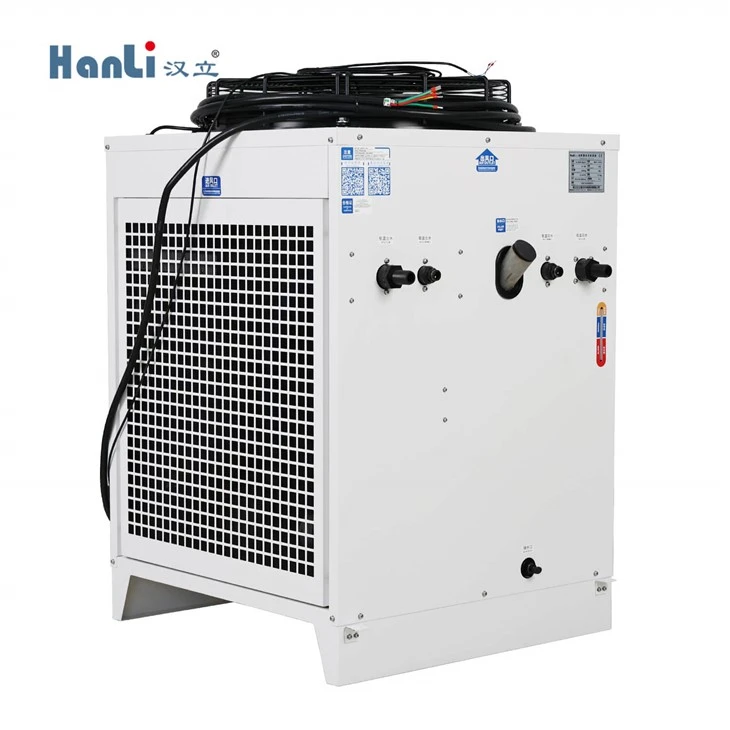

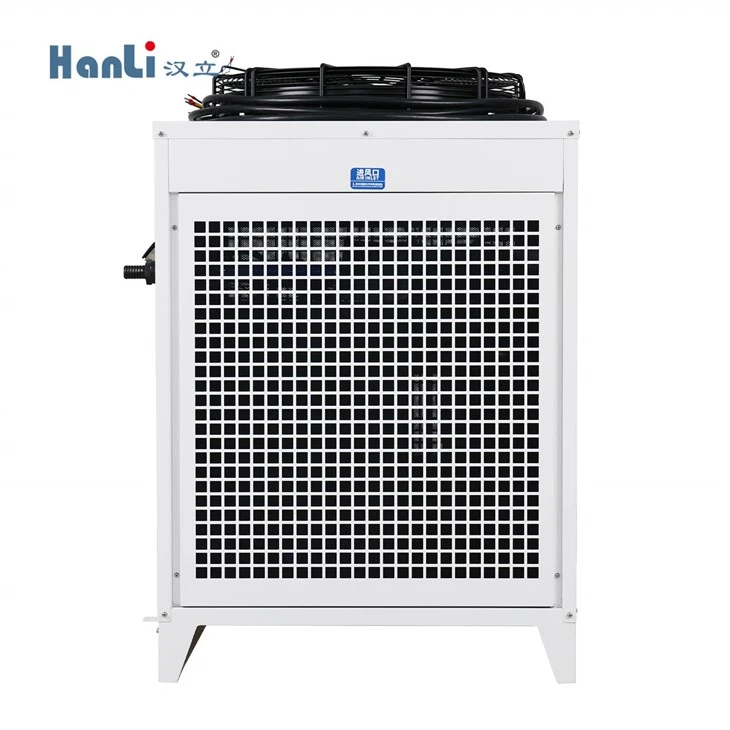

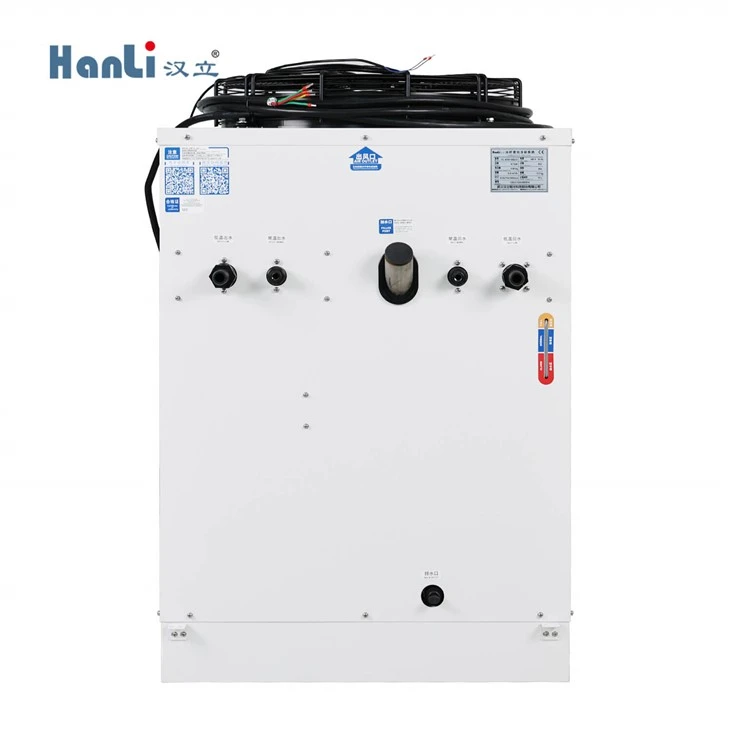

Cooling Chiller HL-8000 for 8kW High Power Fiber Laser
The HL-8000 -QG2/2 industrial laser processing chiller's water tank has a capacity of 70L and is made of stainless steel. The chiller also features a fan-cooled condenser that has superior energy efficiency. This chiller is available in 380V50HZ or 60hz and is designed to work for a higher level...
- Product Introduction
The HL-8000 -QG2/2 industrial laser processing chiller's water tank has a capacity of 70L and is made of stainless steel.
The chiller also features a fan-cooled condenser that has superior energy efficiency. This chiller is available in 380V50HZ or 60hz and is designed to work for a higher level of connection between the chiller and laser system.
It comes with a variety of built-in alarm devices that further protect the chiller and laser equipment, making the operations safer and reducing losses caused by incorrect operation.
Improve energy efficiency. The solenoid valve bypasses refrigerant flow to maintain a constant pressure and temperature within the system, even when the compressor is not running. This allows the compressor to operate less frequently and at a more constant level, eliminating the need for frequent start and stop cycles. As a result, the compressor can operate smoothly and more efficiently, reducing wear and tear and extending its lifespan. Additionally, the solenoid valve bypass technology can help reduce energy consumption, making the refrigeration system more environmentally friendly and cost-effective over time. Overall, this technology is a valuable feature for any refrigeration system, and it can provide significant benefits in terms of performance, reliability, and sustainability.
|
|
Uint |
|
HL-8000-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
||
|
Rated power |
kW |
9.7 |
|
|
maximum current |
A |
18.5 |
|
|
Cooling capacity |
kW |
15.2 |
|
|
Compressor power |
kW |
4.15 |
|
|
Electric heating power |
kW |
1.6/1.4 |
|
|
Pump power |
kW |
1.85 |
|
|
Fan power |
kW |
0.75 |
|
|
Maximum air volume of the fan |
m³/h |
8400 |
|
|
Rated Flow of the low temperature end |
L/min |
80～88 |
|
|
Rated pressure of the low temperature end |
bar |
4.0 |
|
|
Maximum pressure of low temperature end |
bar |
5.2 |
|
|
Dimensions of the low temperature end interface |
G1-Φ25mm Pagoda joints |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
2.3 |
|
|
Rated pressure of the high temperature end |
bar |
4.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ12mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5 |
|
|
Water Tank |
L |
55 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
70 |
|
|
Net Weight |
kg |
610×665× 1000 |
|
|
Packing dimension |
mm |
76 |
|
|
Gross Weight |
kg |
725×670×1035 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
