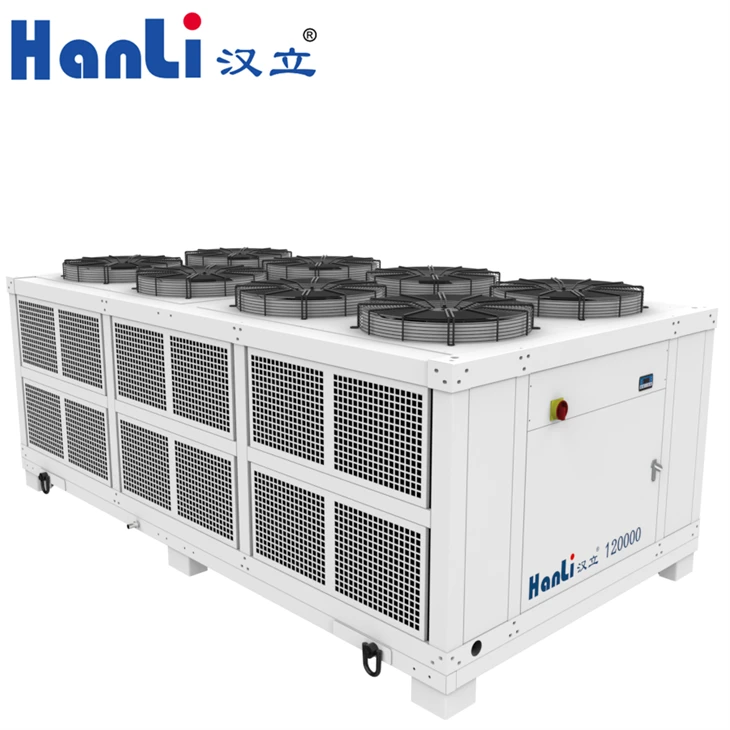

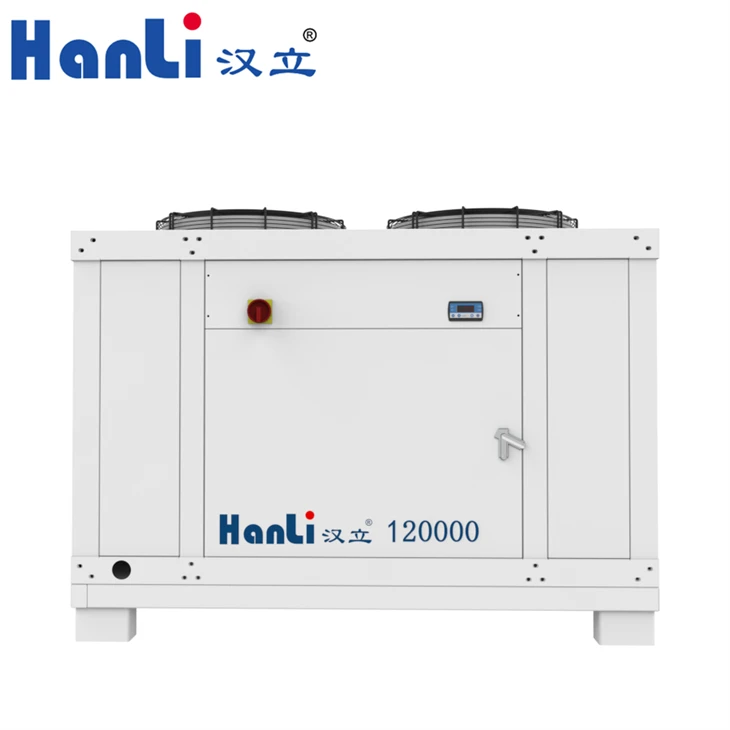

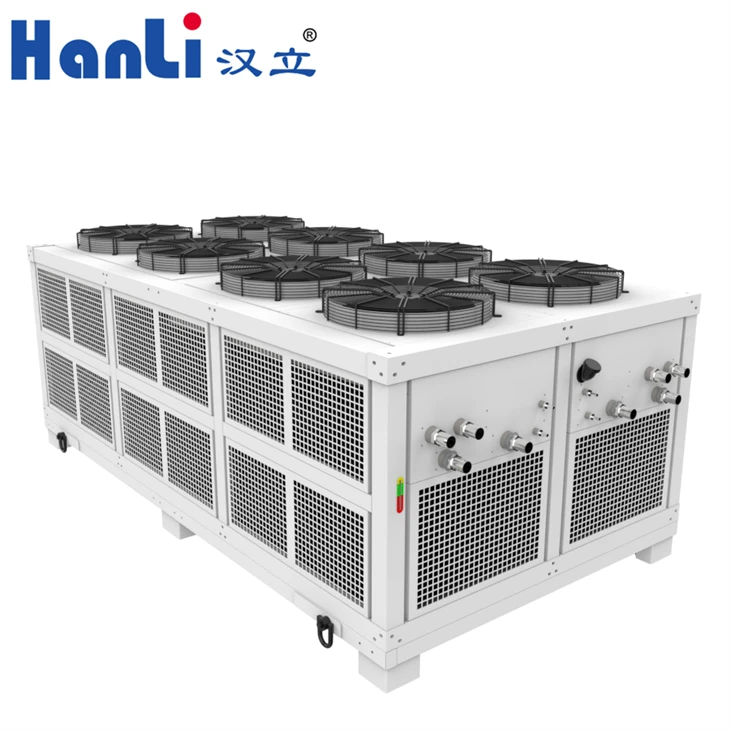

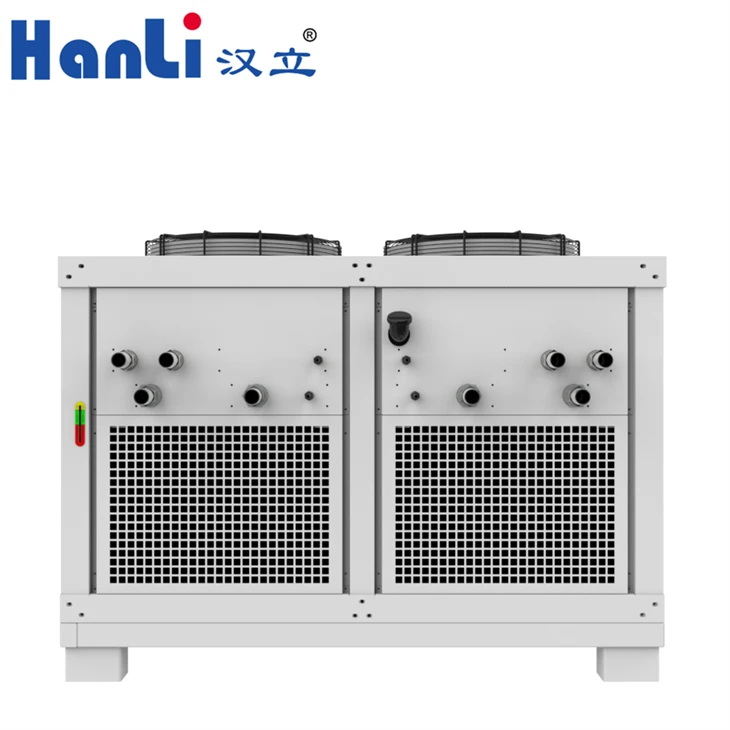

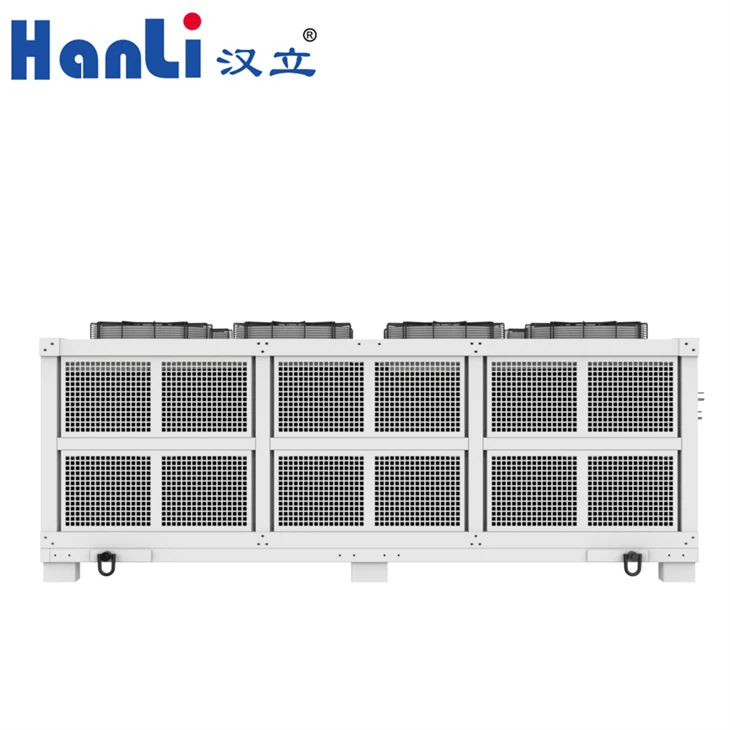

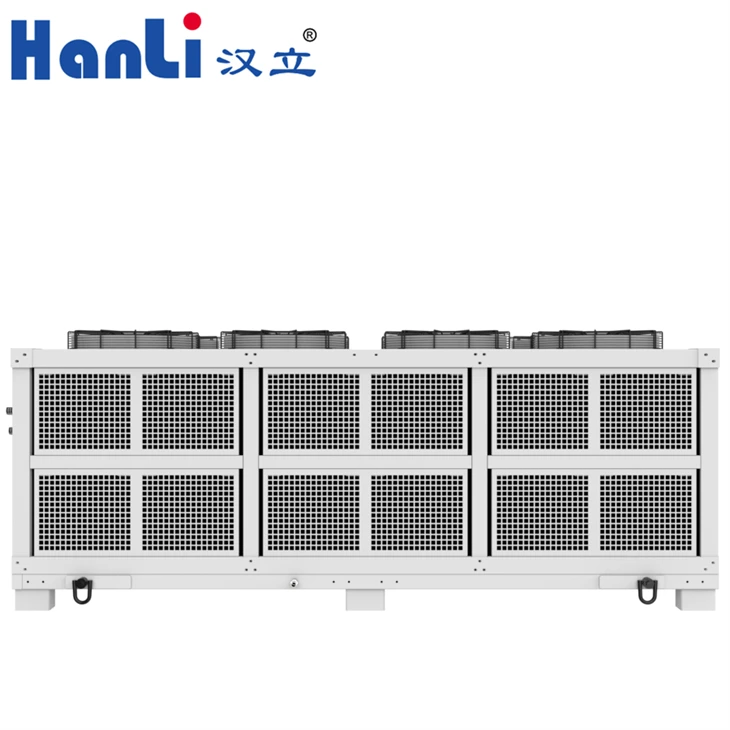

Hanli 120kW High‑Power Fiber Laser Chiller For 120kW Laser Source
Our Hanli 120 kW high‑power fiber laser chiller is specially developed for 100‑120 kW ultra‑high‑power fiber laser equipment.
- Product Introduction
Hanli 120 kW ultra‑high‑power laser chiller is engineered to tackle the strict thermal challenges brought by 100‑120 kW fiber lasers during long‑duration thick‑plate fabrication.
Its separated dual‑loop cooling architecture precisely regulates temperature for laser generator and optical head respectively, greatly lowering lens‑condensation risks. Thanks to ±0.5 ℃ precise temperature holding, your laser power output stays consistent without thermal drifting, guaranteeing stable processing quality.
|
1 |
Model |
HL-120000-QG2/2 |
|
|
2 |
Power supply |
380V/AC±10% 50Hz |
|
|
3 |
Rated power |
kW |
120 |
|
4 |
Maximum current |
A |
210 |
|
5 |
Cooling capacity |
kW |
265 |
|
6 |
Compressor power |
kW |
12.6×4 |
|
7 |
Electric heating power |
kW |
1.75/40.0 |
|
8 |
Pump power |
kW |
0.36/5.5×4 |
|
9 |
Fan power |
kW |
0.58×8 |
|
10 |
Maximum air volume of the fan |
m³/h |
10040×8 |
|
11 |
Low temperature rated flow |
L/min |
≥1100 |
