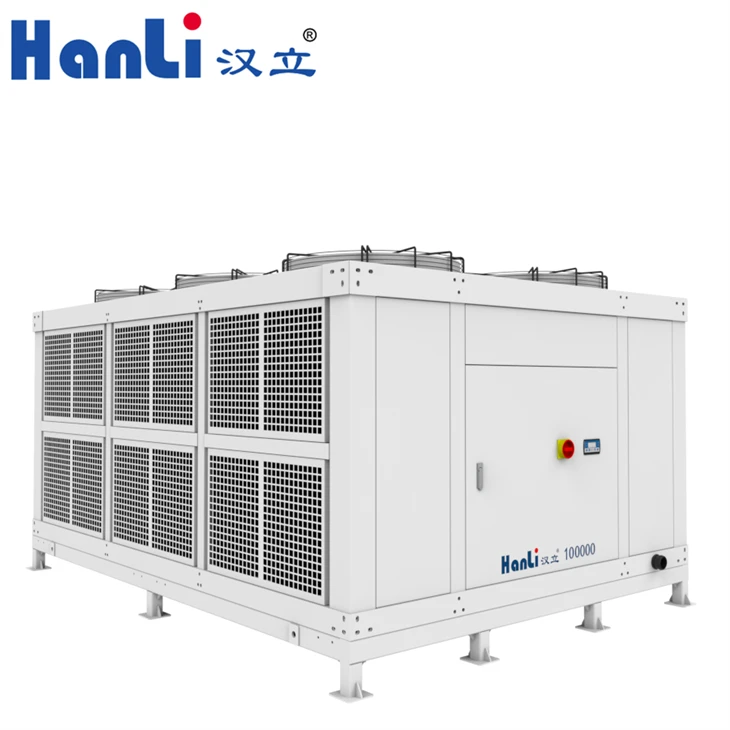

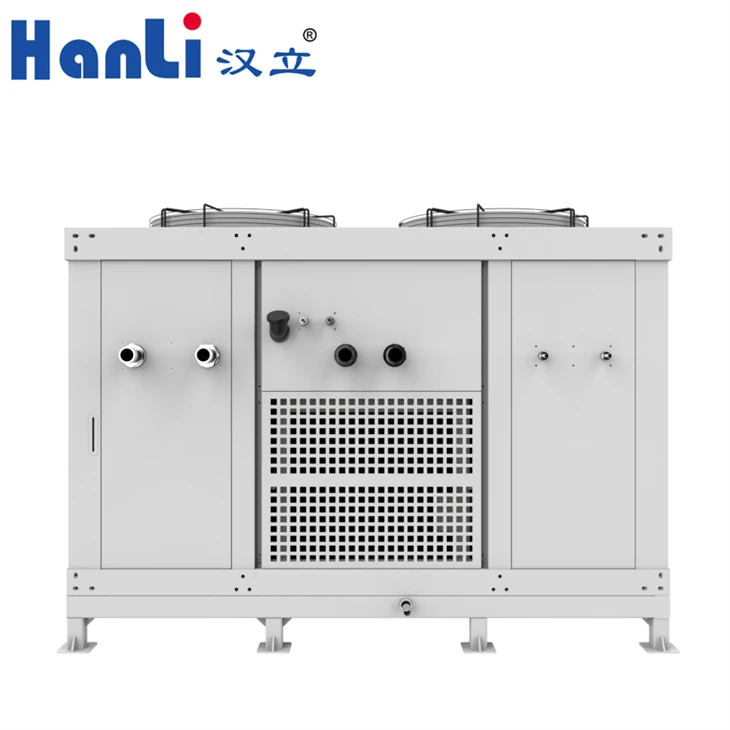

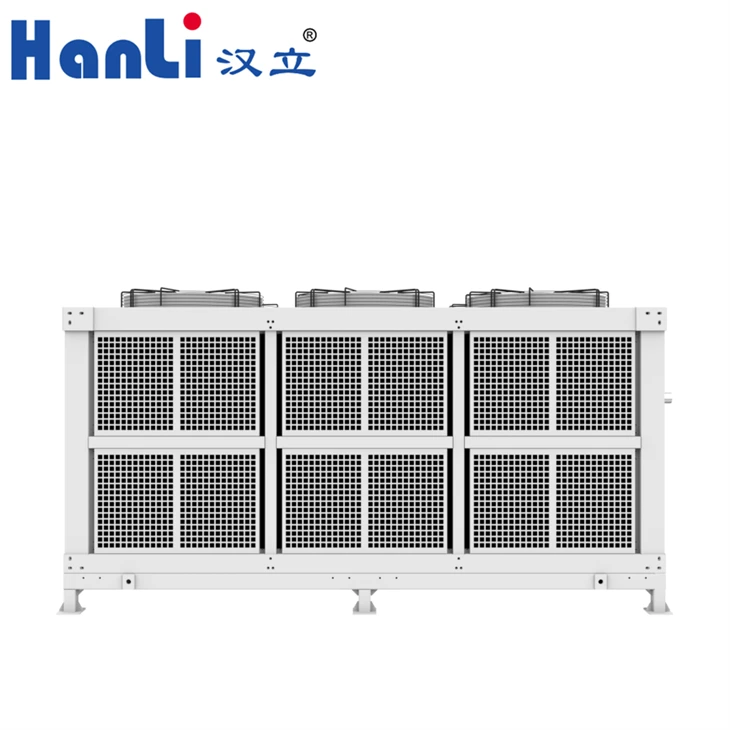

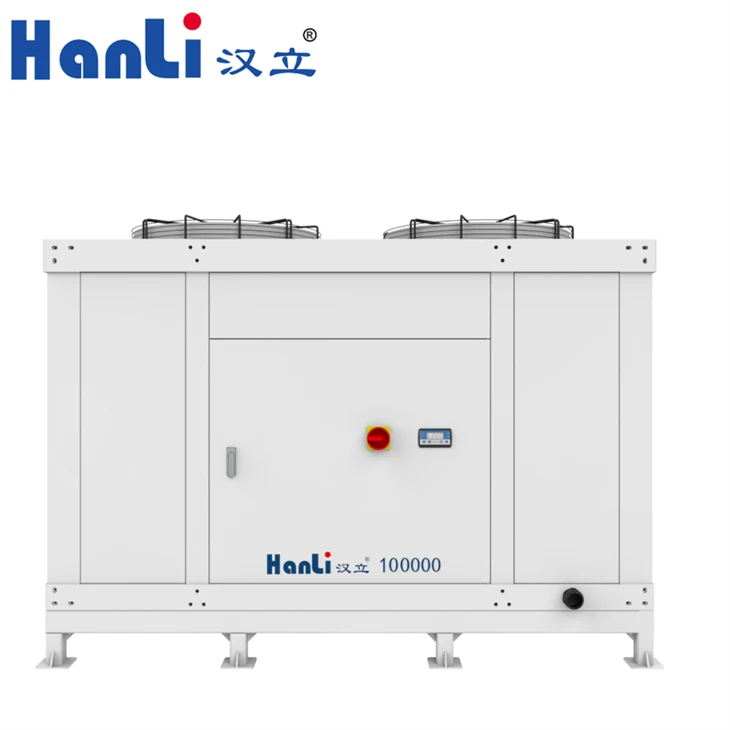

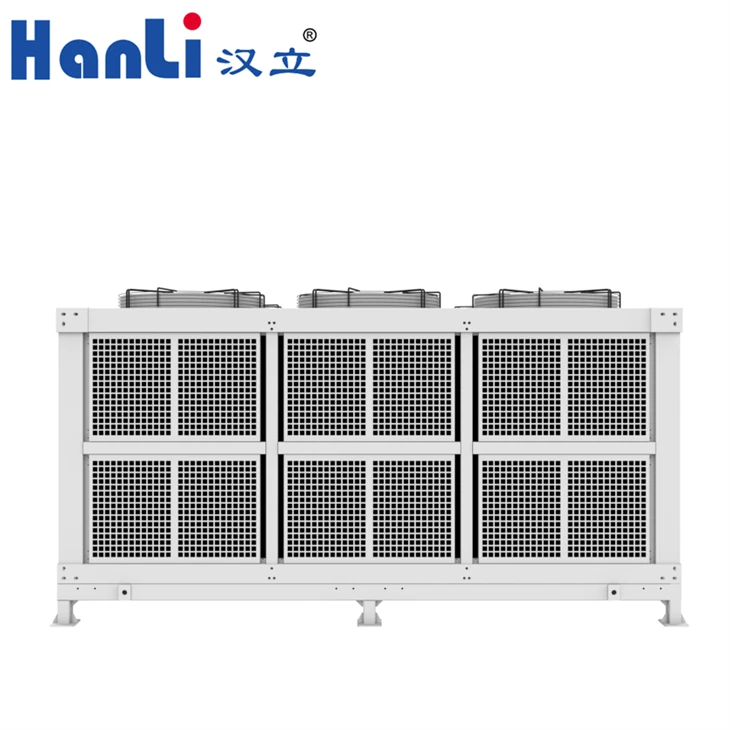

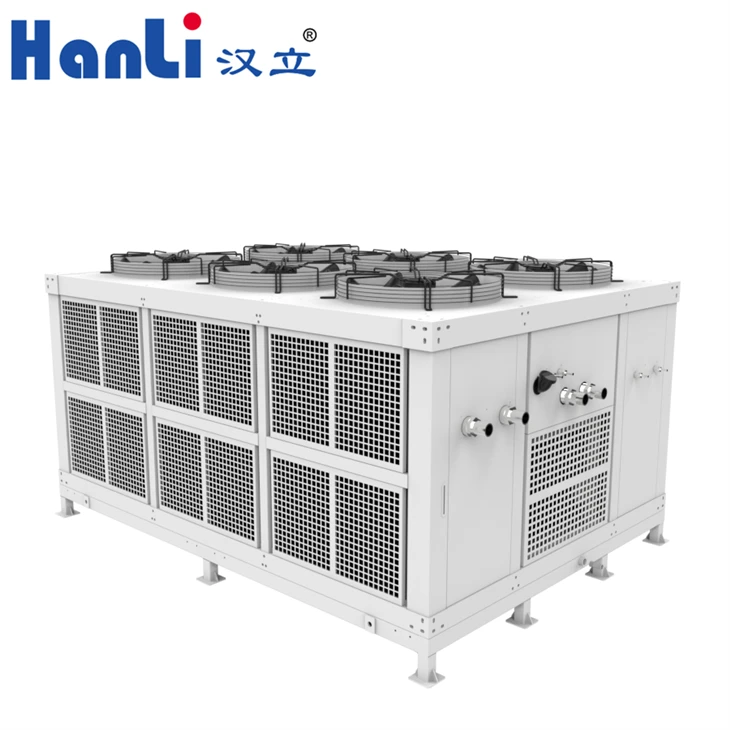

Hanli 100kW Dual‑Temperature Chiller For 100kW Fiber Laser System
Our Hanli 100 kW high‑power fiber laser chiller is specially designed for 80‑100 kW ultra‑high‑power fiber laser machines. Adopting dual‑temperature dual‑loop independent cooling system, it cools the laser source and laser head separately. With ±0.5 ℃ precise temperature control, it keeps stable laser output during long‑time thick‑plate cutting and welding
- Product Introduction
Our Hanli 100 kW high‑power fiber laser chiller is specially designed for 80‑100 kW ultra‑high‑power fiber laser machines.
Adopting dual‑temperature dual‑loop independent cooling system, it cools the laser source and laser head separately. With ±0.5 ℃ precise temperature control, it keeps stable laser output during long‑time thick‑plate cutting and welding.
Equipped with high‑efficiency scroll compressor and corrosion‑resistant 304‑stainless‑steel water circuit, the chiller can run 24‑hours continuously under harsh workshop conditions. Multiple safety interlock functions protect your costly laser equipment from unexpected damage.
Modbus‑485 function supports remote monitoring for smart factory integration. The air‑cooled integrated design greatly reduces your installation workload.
We can customize voltage, antifreeze function and other configurations to meet different regional standards. With nearly 30‑years experience in industrial cooling
|
1 |
Model |
HL-100000-QG2/2 |
|
|
2 |
Power supply |
380V/AC±10% 50Hz |
|
|
3 |
Rated power |
kW |
100 |
|
4 |
Maximum current |
A |
180 |
|
5 |
Cooling capacity |
kW |
215 |
|
6 |
Compressor power |
kW |
13.248×3 |
|
7 |
Electric heating power |
kW |
1.75/30.0 |
