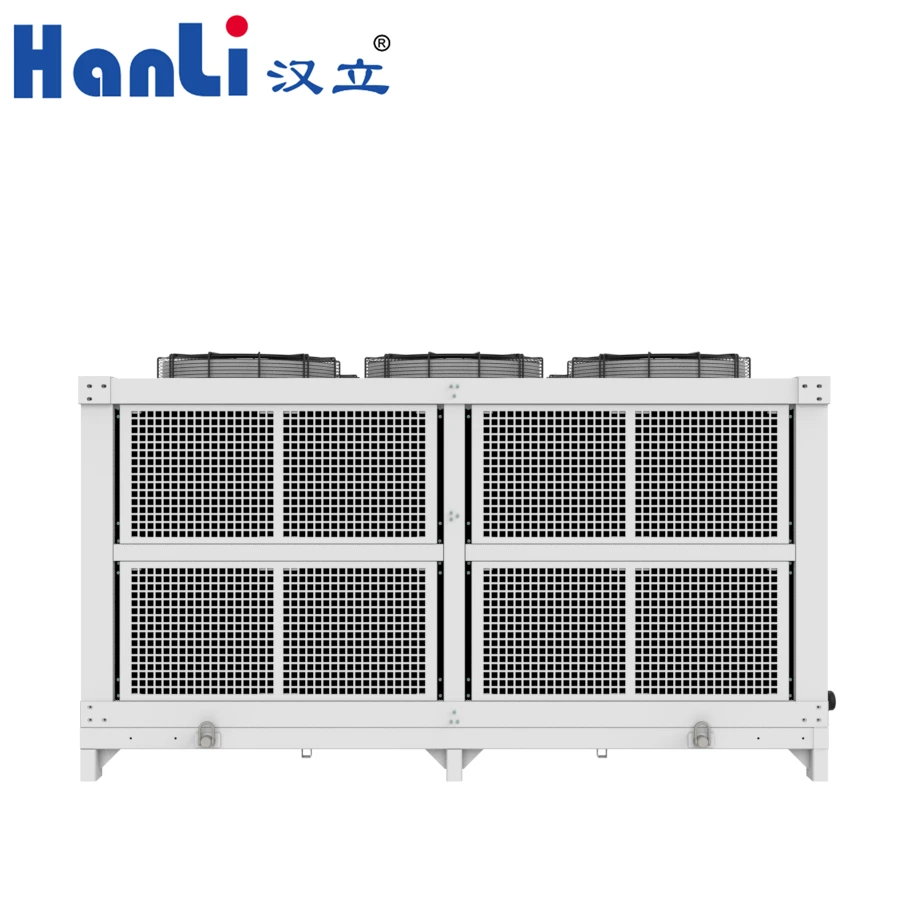

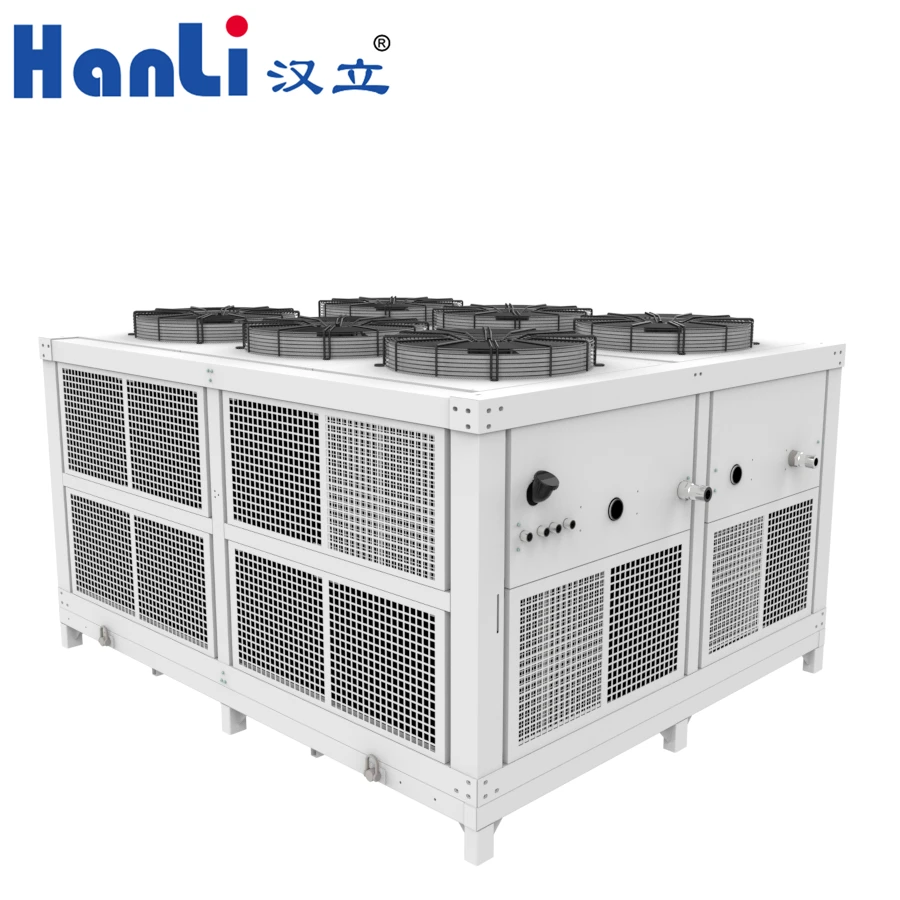

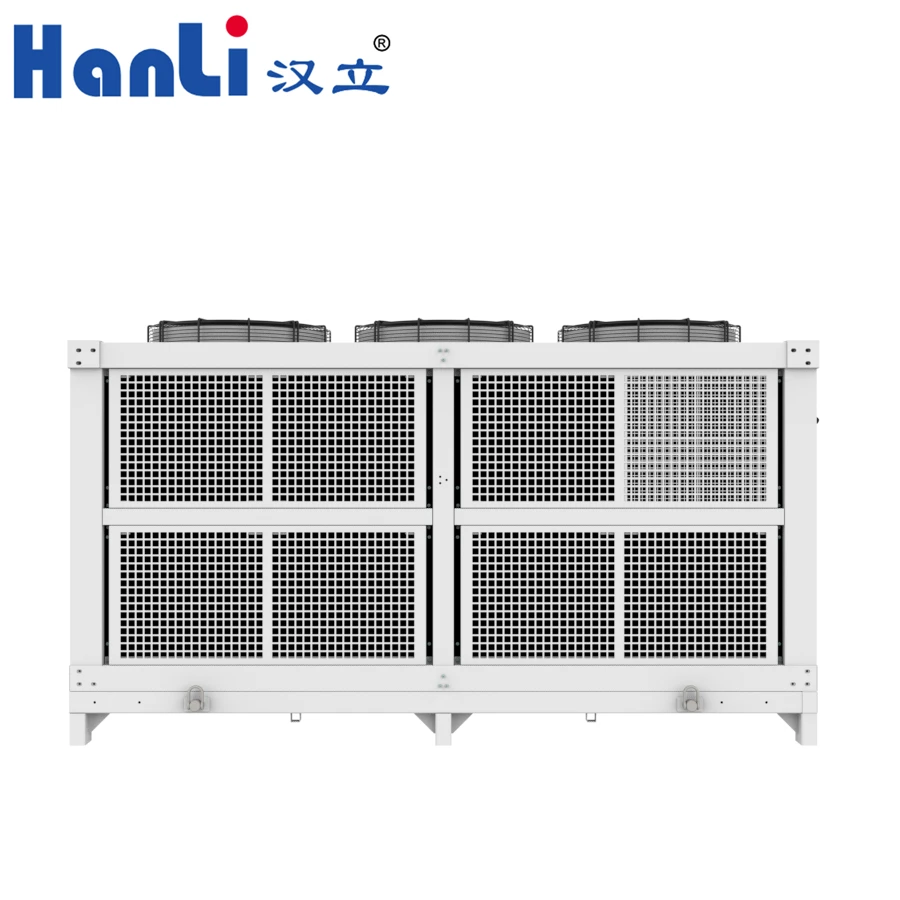

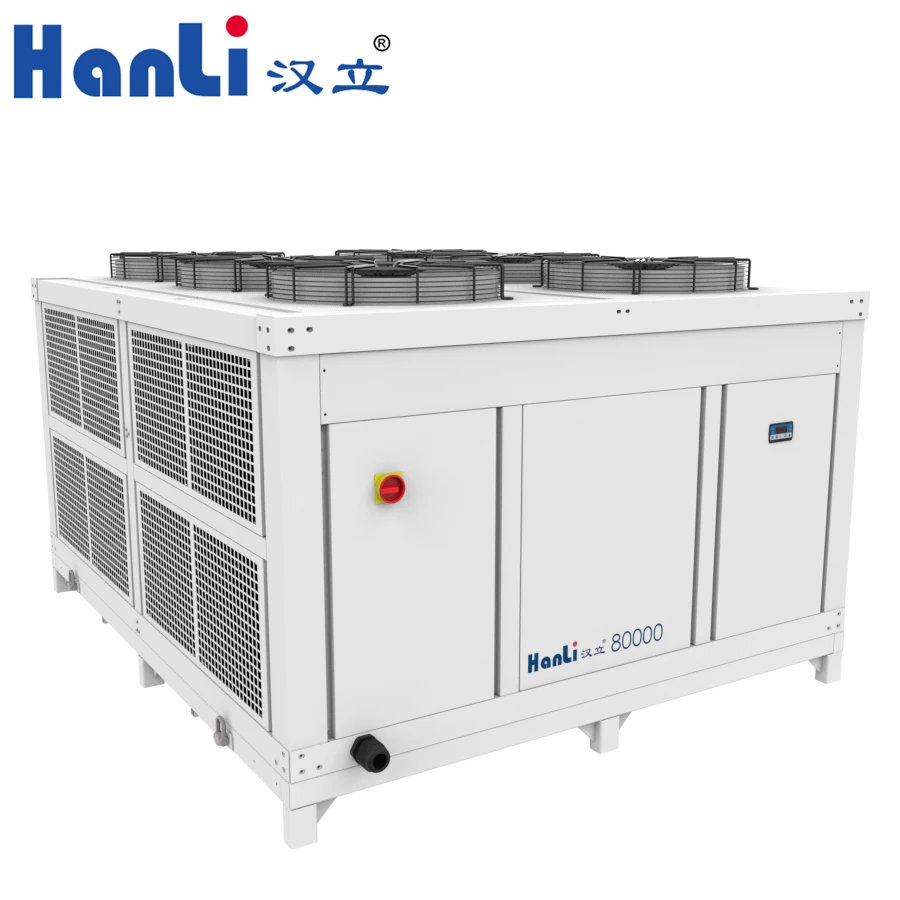

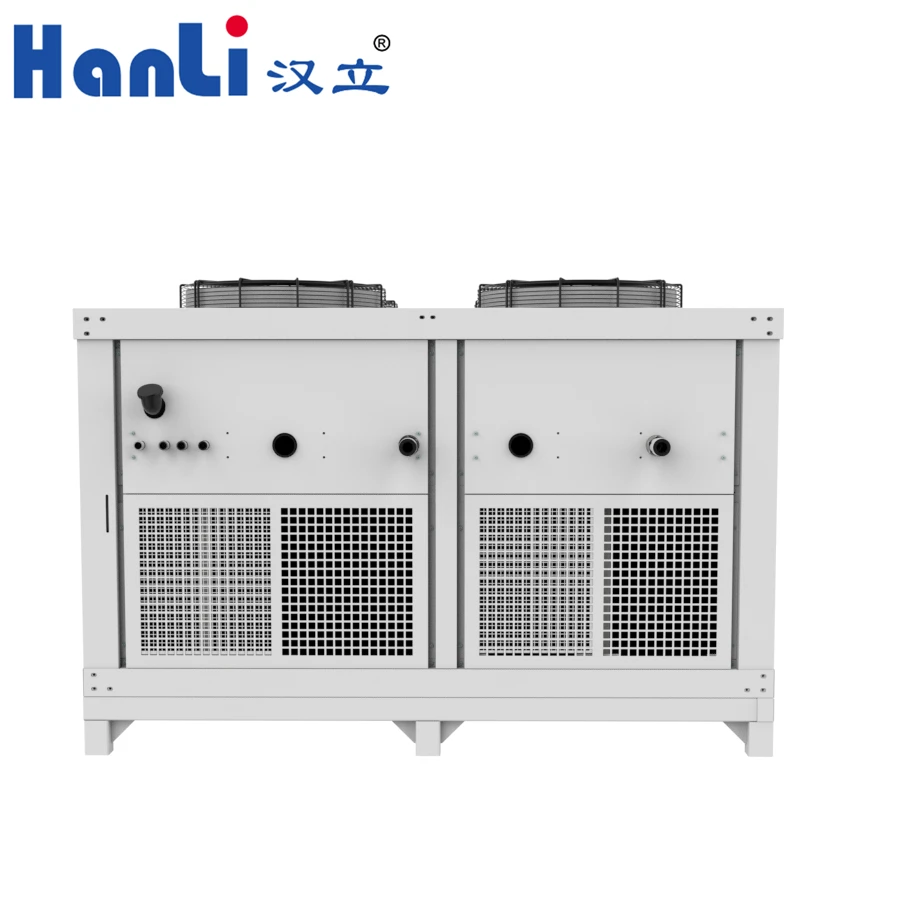

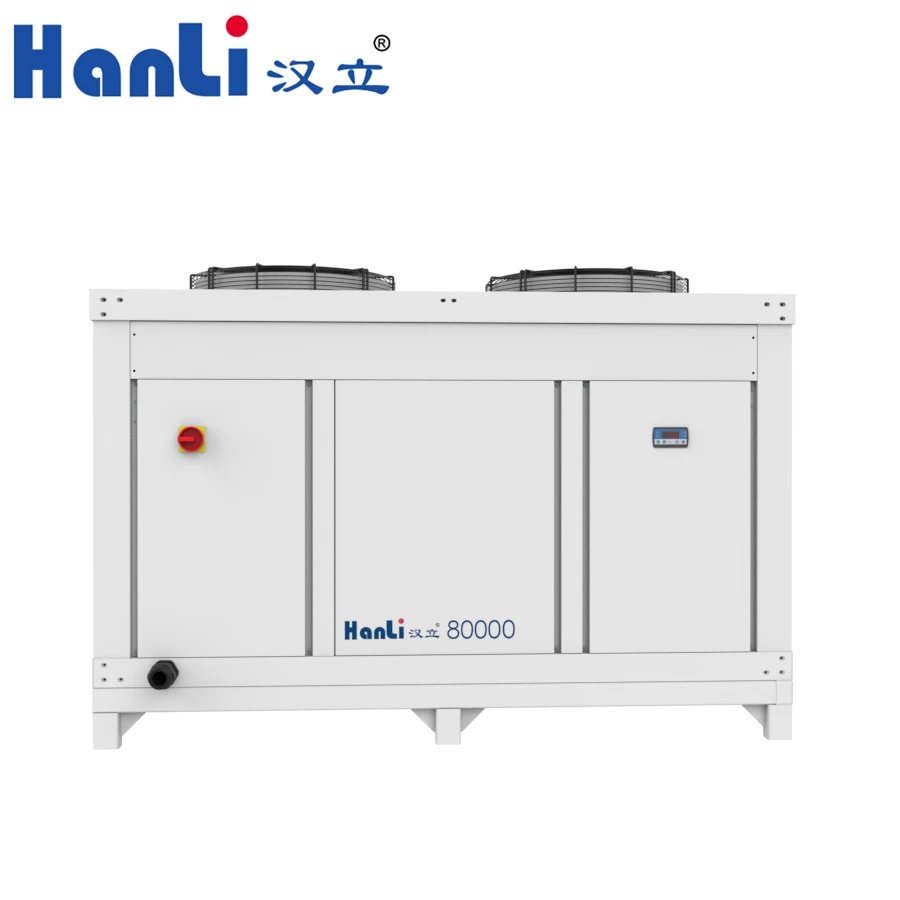

Hanli Big Power 80kw Water Chiller
perfectly matched for 80kW high‑power fiber laser sources, meets heavy‑load 24‑hour non‑stop industrial production
- Product Introduction
Dual‑temperature dual‑control independent circuit: separate cooling loops for laser generator and laser head. Prevents lens condensation, guarantees stable laser beam quality .
- High‑precision temperature control ±0.5℃. Minimal water‑temperature fluctuation, avoids power drift and cutting defects for thick‑plate processing .
- High‑efficiency scroll compressor & optimized heat‑exchange structure, energy‑saving, low noise, stable performance under high‑ambient‑temperature workshop conditions
|
1 |
model |
|
HL-80000-QG2/4 |
|
2 |
Power supply system |
|
38 0V/AC±10% 50Hz |
|
3 |
Rated power |
kW |
85 |
|
4 |
Maximum current |
A |
150.0 |
|
5 |
Cooling capacity |
kW |
160.0 |
|
6 |
Compressor power |
kW |
17.5×2 |
|
7 |
Electric heating power (normal temperature/low temperature) |
kW |
1.75/6.45×6 |
|
8 |
Pump power (normal temperature/low temperature) |
kW |
3.5×4 |
|
9 |
Fan power |
kW |
0.58×6 |
|
10 |
Maximum air volume of the fan |
m³/h |
10040×6 |
|
11 |
Low temperature rated flow |
L/min |
≥735 |
|
12 |
Low temperature end rated pressure |
bar |
6.0 |
|
13 |
Highest pressure at low temperature end |
bar |
7.0 |
|
14 |
Low temperature end interface size |
|
G 2-Φ52.5mm pagoda connector × 2 G1-1/2-Φ52.5mm pagoda connector ×2 |
|
15 |
Low-temperature end water temperature setting range |
℃ |
21-32 |
|
16 |
Rated flow rate at high temperature end |
L/min |
6.5 |
|
17 |
High-temperature end rated pressure |
bar |
6.0 |
|
18 |
High-temperature interface size |
|
G1/2 -Φ13mm pagoda connector ×4 |
|
19 |
High-temperature end water temperature setting range |
℃ |
26-35 |
|
20 |
Water temperature control accuracy |
℃ |
±1 |
|
21 |
Water tank capacity |
L |
670 |
|
22 |
Operating ambient temperature |
℃ |
-20～ 40 |
|
23 |
refrigerant |
|
R32 |
|
24 |
Equipment exterior color |
|
Orange-veined white |
|
25 |
Equipment operating noise |
dB(A) |
≈75 |
|
26 |
net weight |
kg |
1520 |
|
27 |
Machine size |
mm |
2510×2025×1350 |
|
28 |
Gross weight |
kg |
1606 |
|
29 |
Packaging size |
mm |
2700×2120×1510 |
|
30 |
Suitable cooling medium |
|
Pure water, ethylene glycol solution with a concentration ≤30% |
