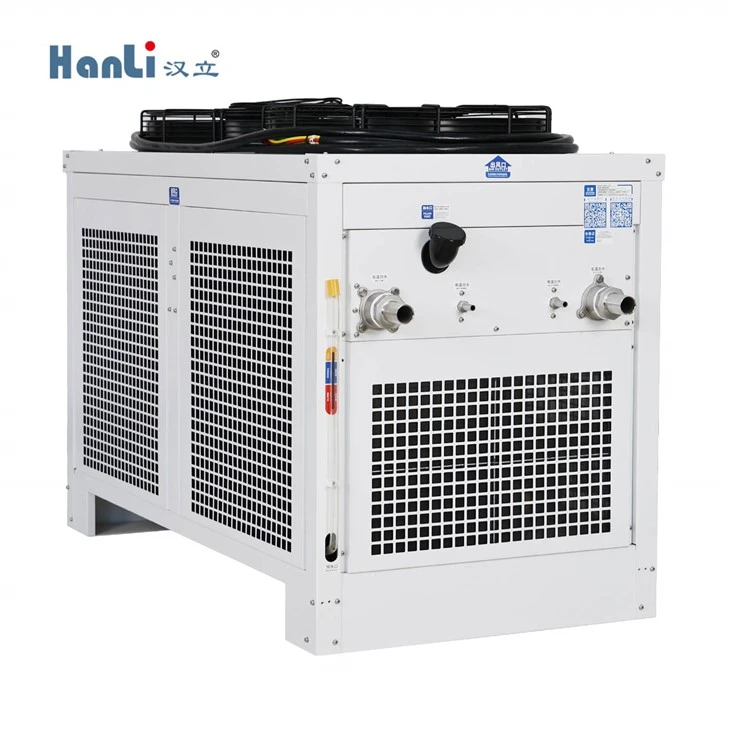

Recirculating Water Chillers HL-20000 for 40kW Fiber Laser Metal Cutter
Hanli high-performance industrial cooling system HL-20000-QG2/2 can maintain a constant and stable temperature, making it ideal for use in high-precision and high-demand industrial applications. Its user-friendly digital temperature controller provides real-time monitoring and control of the...
- Product Introduction
Hanli high-performance industrial cooling system HL-20000-QG2/2 can maintain a constant and stable temperature, making it ideal for use in high-precision and high-demand industrial applications. Its user-friendly digital temperature controller provides real-time monitoring and control of the cooling system, enabling operators to adjust the temperature to meet the specific requirements of their operation.
The system features a high-quality compressor and high-performance condenser, which enable it to deliver efficient and reliable cooling. Additionally, it is equipped with high-flow rate pumps, which allow for faster circulation of coolant and more efficient heat transfer.
Overall, HL-20000-QG2/2 is a high-performance and reliable cooling system that can meet the demands of industrial fiber laser applications. With its advanced features and efficient operation, it is a great choice for anyone looking for a high-quality cooling solution for their industrial operations.
|
|
Uint |
HL-20000-QG2/2 |
HL-20000-EH-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
|
Rated power |
kW |
20.0 |
20.0 |
|
maximum current |
A |
40.0 |
40.0 |
|
Cooling capacity |
kW |
50.0 |
50.0 |
|
Compressor power |
kW |
9.820 |
9.303 |
|
Electric heating power |
kW |
3.0/5.0 |
|
|
Pump power |
kW |
3.0 |
3.0 |
|
Fan power |
kW |
0.55×2 |
0.75×2 |
|
Maximum air volume of the fan |
m³/h |
8400×2 |
8450×2 |
|
Rated Flow of the low temperature end |
L/min |
≥200 |
|
|
Rated pressure of the low temperature end |
bar |
5.0 |
|
|
Maximum pressure of low temperature end |
bar |
6.6 |
|
|
Dimensions of the low temperature end interface |
G2-Φ32mm Pagoda joints*2 |
||
|
Water temperature setting range of low temperature end |
℃ |
21-32 |
|
|
Rated Flow of the high temperature end |
L/min |
4.5 |
|
|
Rated pressure of the high temperature end |
bar |
5.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ13mm quick connector*2 |
||
|
Water temperature setting range of high temperature end |
℃ |
26-35 |
|
|
Water temperature control accuracy |
℃ |
±1 |
|
|
Water Tank |
L |
160 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
247 |
|
|
Net Weight |
kg |
1590×750×1010 |
|
|
Packing dimension |
mm |
256 |
|
|
Gross Weight |
kg |
1670×815× 1060 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
