Water Chiller For Co2 Laser
water chiller for a CO2 laser is an essential accessory that helps in maintaining laser power and extending its life. CO2 lasers generate a significant amount of heat during operation, which can cause damage to the laser tube if not dissipated properly.
- Product Introduction
water chiller for a CO2 laser is an essential accessory that helps in maintaining laser power and extending its life. CO2 lasers generate a significant amount of heat during operation, which can cause damage to the laser tube if not dissipated properly.
A water chiller works by circulating water through the laser tube to absorb the heat generated during the operation. This helps in lowering the temperature of the laser tube and keeping it within a safe operating range.
Water chiller units for CO2 lasers come in various sizes and capacities, depending on the laser power and the cooling requirements of the laser tube. Some popular brands include CW-3000, CW-5000, and CW-5200.
When selecting a water chiller for your CO2 laser, it is essential to consider the cooling capacity, flow rate, and compatibility with your laser system. It is also important to ensure that the water chiller has safety features such as over-temperature and low-water level protection to avoid any damage to the laser system.
The CW-3000 is a compact water chiller unit that is suitable for CO2 lasers with a maximum power of 80W. Its cooling capacity is 50W/℃, and it has a water tank capacity of 9L.
The CW-5000 is a more powerful water chiller unit that can handle CO2 lasers with a maximum power of 150W. Its cooling capacity is 800W/℃, and it has a water tank capacity of 6L. It also comes with a built-in alarm system that alerts users in case of any malfunction.
The CW-5200 is a heavy-duty water chiller unit that can handle CO2 lasers with a maximum power of 180W. Its cooling capacity is 1400W/℃, and it has a water tank capacity of 10L. It also comes with a digital temperature controller and a self-diagnosis function.
All these water chiller units are designed to provide effective cooling for CO2 lasers to ensure their optimal performance and longevity. The appropriate unit for your laser will depend on its power and cooling requirements.
|

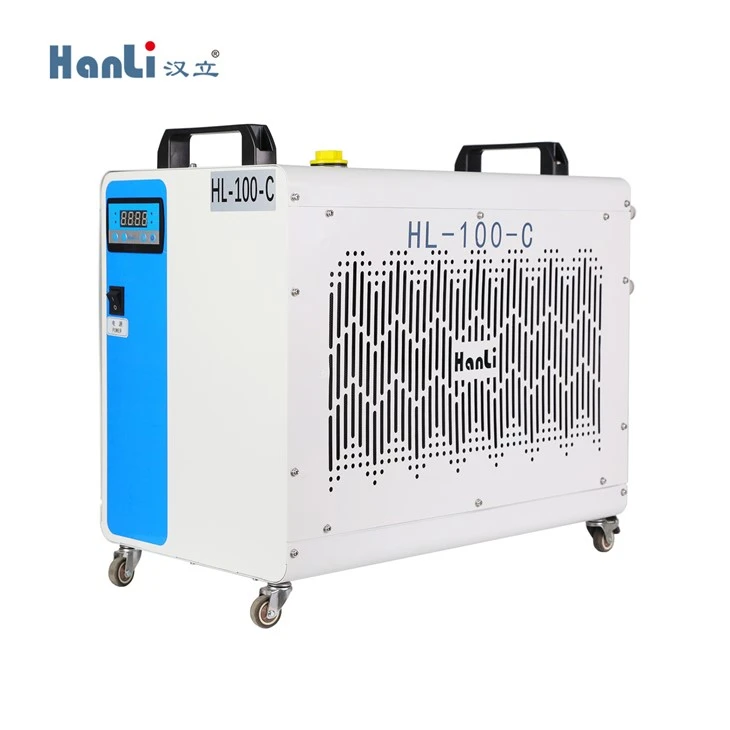

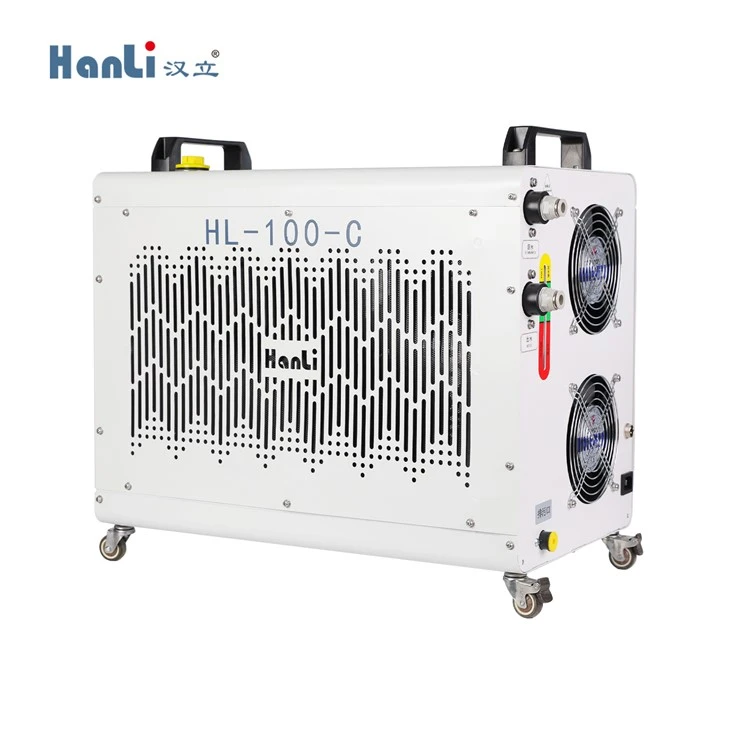

Model |
HL-100-C |
HL-180-C |
|
Voltage & Frequency |
AC 1P 220 V |
|
|
Working power |
50Hz |
|
|
Working current |
3 A |
5.5 A |
|
Machine power |
0.6kW |
1.2 kW |
|
Application environment |
0℃＜Environment temperature＜45℃ ,Relative humidity＜95% |
|
|
Tempe.control accuracy |
±1 ℃ |
|
|
Coolant |
R32 |
R410A |
|
Cooling capacity |
900W |
1800W |
|
Electric heating power |
400W |
400W |
|
Rated flow of water pump |
16L/min |
|
|
Max.pump lift |
16 m |
|
|
Pump power |
50W |
|
|
Tank volume |
8 L |
|
|
Laser nozzle interface |
G1/2*Φ12 Quick connector |
|
|
Dimension |
592×313×517 (mm) |
|
|
N.W |
24 kg |
25 kg |
|
Packing size |
615×365×550 (mm) |
|
|
G.W |
26.5 kg |
27.5 kg |
|
Matching laser source |
100WCO2 Laser |
130-180WCO2 Laser |
