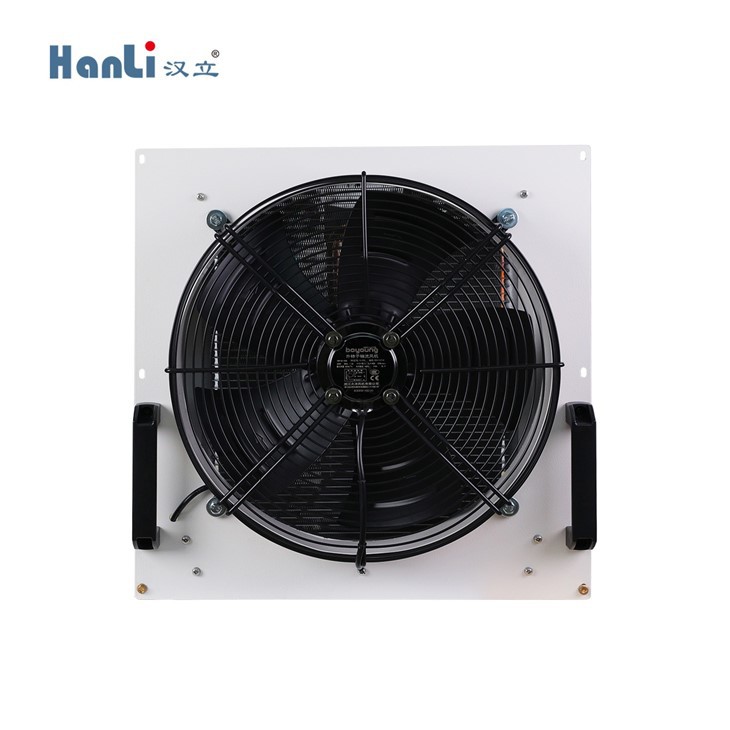

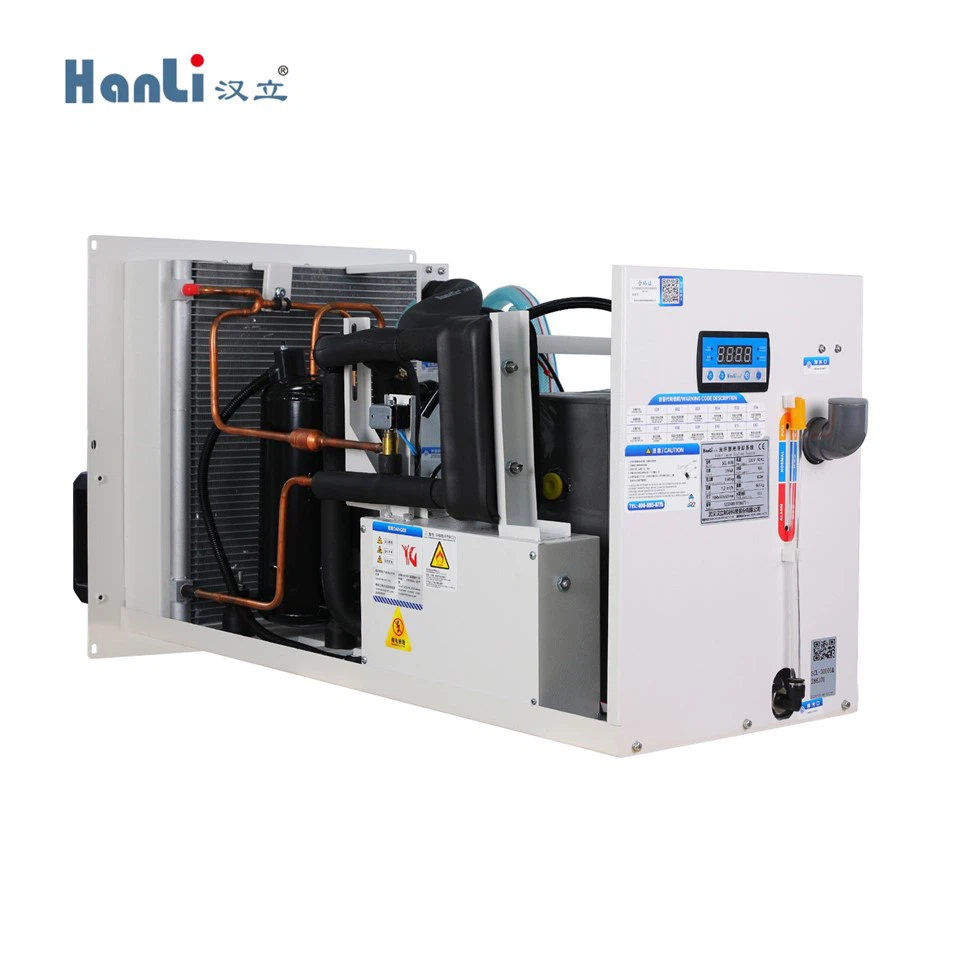

Hanli SCL-3000 Rack Mount Chiller Dual Circuit Portable Water Chiller For 3.0kw Fiber Laser Welding Machine
1.Model: SCL-3000 2.Machine size:1060×522×525 mm(L*H*W) 3.Warranty:2 years 4.Matching laser source: 3000W Continuous fiber laser
- Product Introduction
Fiber laser welding machine can be a valuable tool in many manufacturing applications. When designing and manufacturing the machine, it's important to prioritize the inclusion of a high-quality water chiller system. With the right approach and attention to detail, a laser welding machine can be a durable, efficient, and cost-effective solution for a variety of applications.Hanli SCL-3000 is your best cooling solution for your laser welding machine.
1.High efficiency and environmental protection
2.dual temperature and dual control
3.flow and over-temperature alarm
4.thermal protection of compressor
5.air circuit breaker
|
Model |
SCL-3000 |
|
Voltage & Frequency |
AC 1P 220 V |
|
Working power |
50Hz |
|
Working current |
12 A |
|
Machine power |
3.9 kW |
|
Application environment |
0℃＜Environment temperature＜45℃ , Relative humidity＜95% |
|
Tempe.control accuracy |
±1 ℃ |
|
Coolant |
R32 |
|
Cooling capacity |
7.1 kW |
|
Electric heating power |
600W (room temperature) |
|
Rated flow of water pump |
1.2 m³/h |
|
Max.pump lift |
40 m |
|
Pump power |
0.48 kW |
|
Tank volume |
13 L |
|
Laser nozzle interface |
G1/2*φ20mm Pagoda hose connector |
|
QBH head nozzle interface |
G1/2*Φ6mm Quick connector |
|
Dimension |
1060×522×525 (mm) |
|
N.W |
44.5 kg |
|
Packing size |
1200×960×696 (mm) |
|
G.W |
100 kg (two sets packing) |
|
Matching laser source |
3000W Continuous fiber lase (Matching BWT,Max,Raycus ,RECI laser) |
