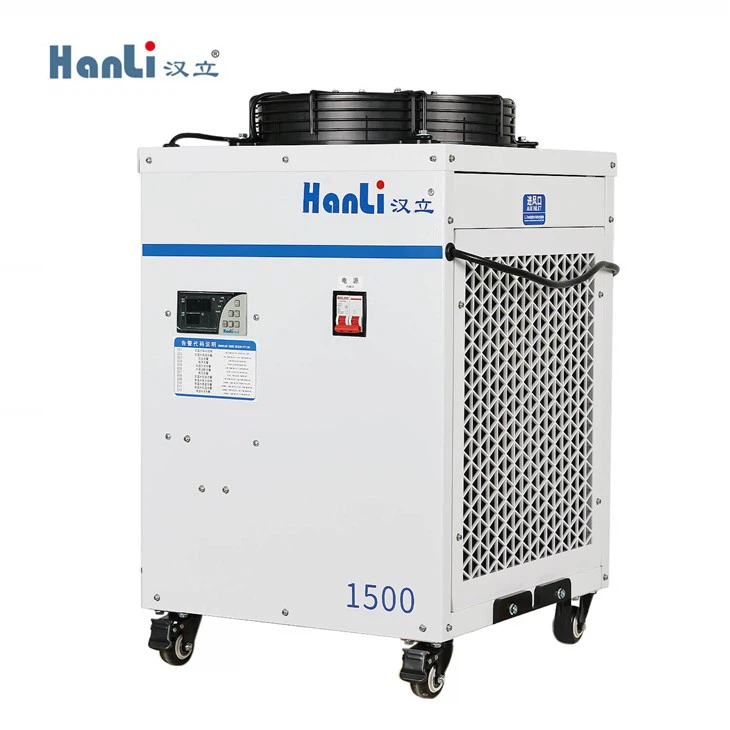

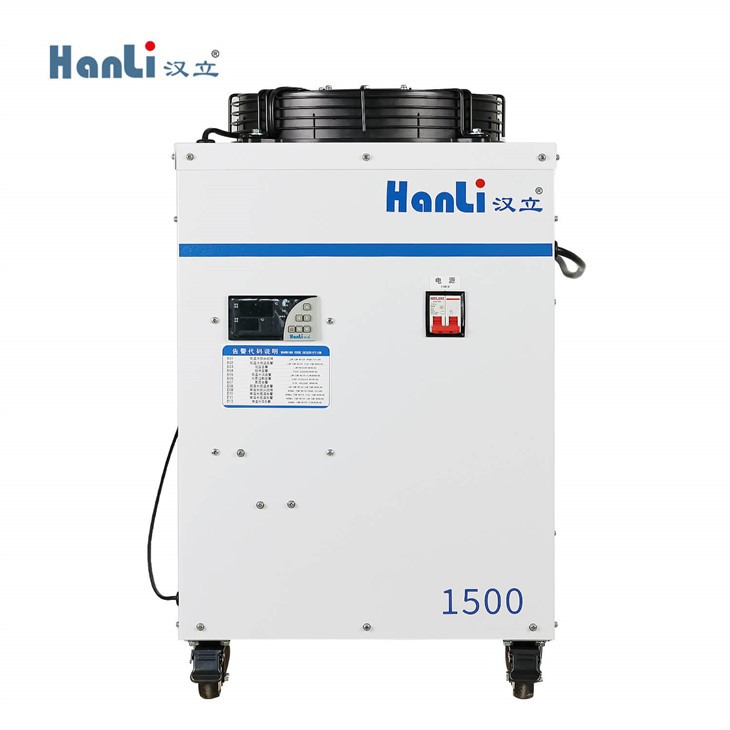

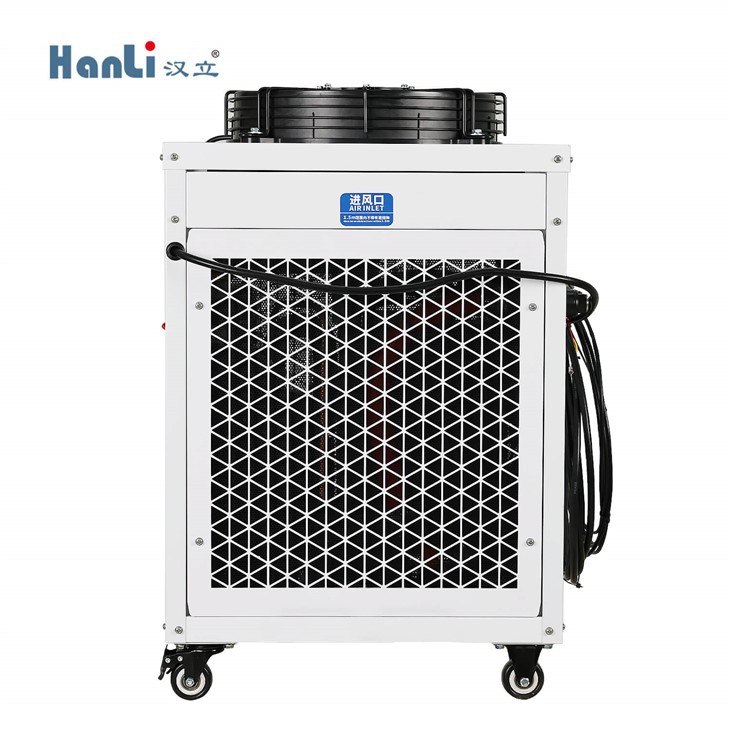

1500w Hanli Chiller Manufacturer
The laser water chiller is an essential component in ensuring the smooth operation of laser equipment. By circulating water and cooling the laser generator, it helps to maintain the optimal operating temperature required for the laser to function efficiently. This is critical, as excessive heat can damage the laser and lead to malfunctioning of the entire system.
- Product Introduction
The laser water chiller mainly performs water circulation cooling on the laser generator of the laser equipment and controls the operating temperature of the laser generator so that the laser generator can maintain normal operation for a long time. During long-term operation of laser equipment, the laser generator will continue to generate high temperatures. If the temperature is too high, it will affect the normal operation of the laser generator. Therefore, a laser chiller is required for water circulation cooling and temperature control.
According to the type of laser generator and the classification method of chillers, laser chillers are divided into carbon dioxide glass laser tube laser chillers, carbon dioxide metal RF tube laser chillers, semiconductor side pump laser chillers, semiconductor end pump laser chillers, and YAG lasers. Chiller, fiber laser chiller, UV laser chiller.
It can be said that the use of laser chillers not only enables the laser machine to work safely and normally, but also ensures the safe use and service life of the laser machine. More importantly, it makes the working efficiency and working accuracy of the laser machine reach a better state. , create greater benefits for the enterprise!
The laser water chiller is an essential component in ensuring the smooth operation of laser equipment. By circulating water and cooling the laser generator, it helps to maintain the optimal operating temperature required for the laser to function efficiently. This is critical, as excessive heat can damage the laser and lead to malfunctioning of the entire system.
An advantage of using a laser water chiller is that it enables precise temperature control, which helps to ensure consistent laser performance throughout its operation. This is particularly important in applications such as laser cutting and engraving, where any deviation in laser output can result in suboptimal results.
Furthermore, by maintaining a stable operating temperature, the laser water chiller helps to extend the lifespan of the laser generator, reducing the need for costly repairs or replacements. This, in turn, increases the reliability of the laser equipment and helps to maximize the return on investment.
In conclusion, the laser water chiller plays a crucial role in ensuring the smooth and efficient operation of laser equipment. By controlling the temperature of the laser generator, it helps to maintain consistent laser performance and prolong the lifespan of the laser.
|
|
Uint |
|
|
|
Voltage & Frequency |
1p 220V/50Hz |
1p 220V/60Hz |
|
|
Rated power |
kW |
2.3 |
2.3 |
|
maximum current |
A |
9.2 |
9.2 |
|
Cooling capacity |
kW |
4.7 |
4.8 |
|
Compressor power |
kW |
0.895 |
0.83 |
|
Electric heating power |
kW |
0.9 |
|
|
Pump power |
kW |
0.36 |
0.36 |
|
Fan power |
kW |
0.1 |
0.121 |
|
Maximum air volume of the fan |
m³/h |
1920 |
2070 |
|
Rated Flow of the low temperature end |
L/min |
16.5~18 |
|
|
Rated pressure of the low temperature end |
bar |
3.0 |
|
|
Maximum pressure of low temperature end |
bar |
5.6 |
|
|
Dimensions of the low temperature end interface |
G1/2-Φ12mm quick connector |
||
|
Water temperature setting range of low temperature end |
℃ |
21~32 |
|
|
Rated Flow of the high temperature end |
L/min |
1.2~1.5 |
|
|
Rated pressure of the high temperature end |
bar |
3.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ10mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26~35 |
|
|
Water temperature control accuracy |
℃ |
22~29.5℃ |
|
|
Water Tank |
L |
15 |
|
|
Application environment |
℃ |
-20~40℃ |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈64 |
|
|
Machine dimension |
mm |
515×430×725 |
|
|
Net Weight |
kg |
37 |
|
|
Packing dimension |
mm |
555×490×870 |
|
|
Gross Weight |
kg |
43 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
