60000 Hanli Chiller Top-Rated Industrial Cooling Solution For 2026

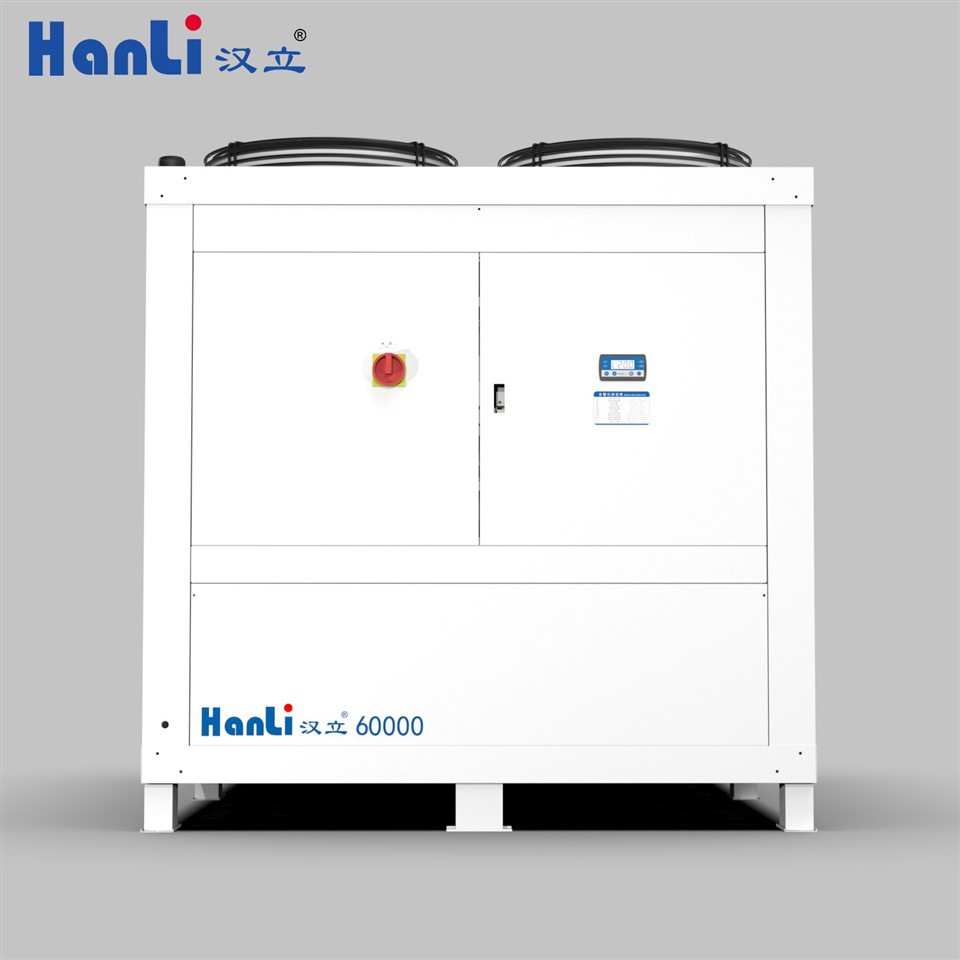

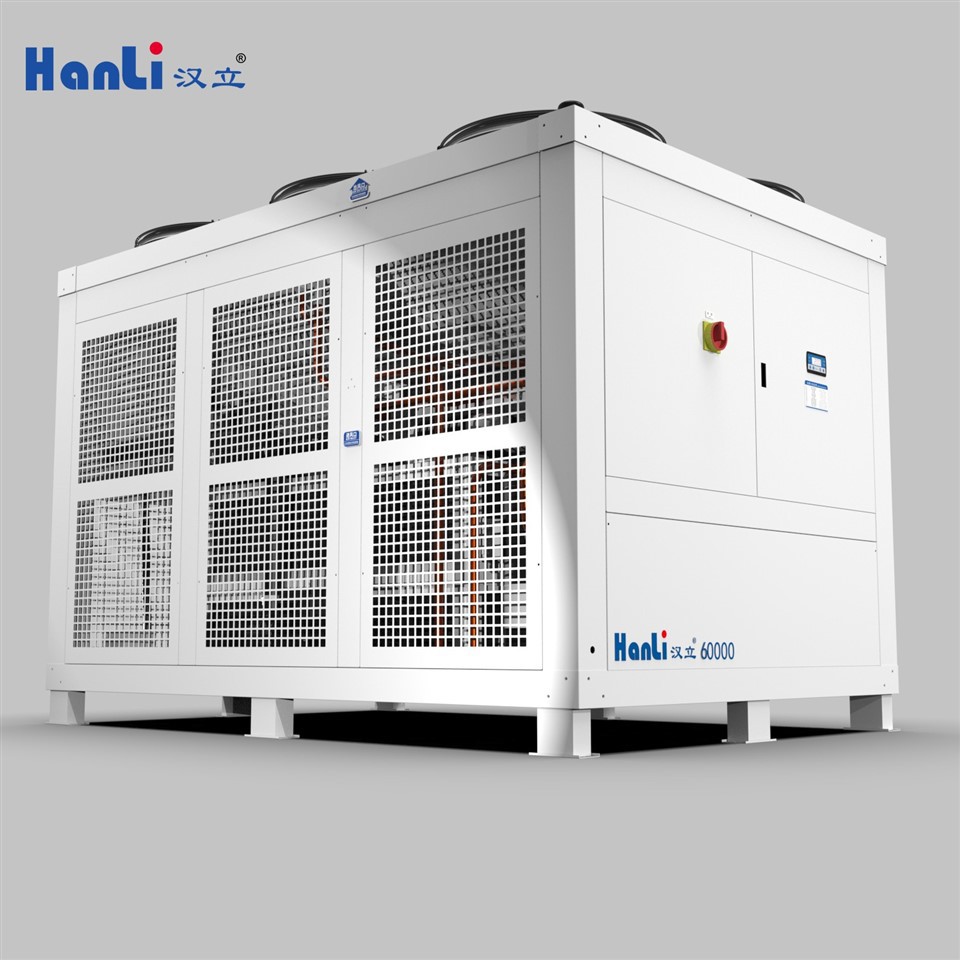

60000 Hanli Chiller: High-Efficiency Cooling Solution for Industrial Applications The 60000 Hanli Chiller is a state-of-the-art cooling system designed to meet the demanding requirements of modern industrial processes. this chiller is ideal for applications in laser cutting manufacturing.
- Product Introduction
1. High Cooling Efficiency: The 60000 Hanli Chiller utilizes advanced PID temperature control algorithms and adaptive cooling technology to ensure stable and accurate temperature management
2.Energy-Saving Design: With optimized heat exchange systems and low-noise operation, the chiller reduces energy consumption while maintaining high performance, making it an eco-friendly choice for industrial use.
3.Durability and Reliability: Built with robust components such as high-efficiency compressors and corrosion-resistant materials, the 60000 Hanli Chiller ensures long-term reliability even in harsh environments.
|
|
Uint |
HL-60000-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
|
|
Rated power |
kW |
55.5 |
|
maximum current |
A |
105 |
|
Cooling capacity |
kW |
142 |
|
Compressor power |
kW |
13.24×2 |
|
Electric heating power |
kW |
0.8/19.35 |
|
Pump power |
kW |
0.36/3.5×3 |
|
Fan power |
kW |
0.95×4 |
|
Maximum air volume of the fan |
m³/h |
11400×4 |
|
Rated Flow of the low temperature end |
L/min |
≥600 |
|
Rated pressure of the low temperature end |
bar |
5.5 |
|
Maximum pressure of low temperature end |
bar |
6.5 |
|
Dimensions of the low temperature end interface |
G11/2-Φ45mm Pagoda joints*4 |
|
|
Water temperature setting range of low temperature end |
℃ |
21-26 |
|
Rated Flow of the high temperature end |
L/min |
5.5 |
|
Rated pressure of the high temperature end |
bar |
5.5 |
|
Dimensions of the high temperature end interface |
G1/2-Φ20mm quick connector*2 |
|
|
Water temperature setting range of high temperature end |
℃ |
26-35 |
|
Water temperature control accuracy |
℃ |
±1 |
|
Water Tank |
L |
470 |
|
Application environment |
℃ |
-20～40 |
|
Coolant |
R32 |
|
|
Noise Level |
dB(A) |
≈75 |
|
Machine dimension |
mm |
764 |
|
Net Weight |
kg |
1980×1680×1320 |
|
Packing dimension |
mm |
806 |
|
Gross Weight |
kg |
2015× 1730×1350 |
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
Why Choose the 60000 Hanli Chiller?
The 60000 Hanli Chiller stands out for its combination of cutting-edge technology, versatility, and cost-effectiveness. Whether you're managing complex industrial processes or conducting high-precision experiments, this chiller delivers unmatched performance and reliability.
60000 Hanli Chiller: The Future of Industrial Cooling Solutions
