6kw Hanli Chiller 380V
Fiber lasers, known for their high photoelectric conversion efficiency, are widely used in metal cutting and welding.
- Product Introduction

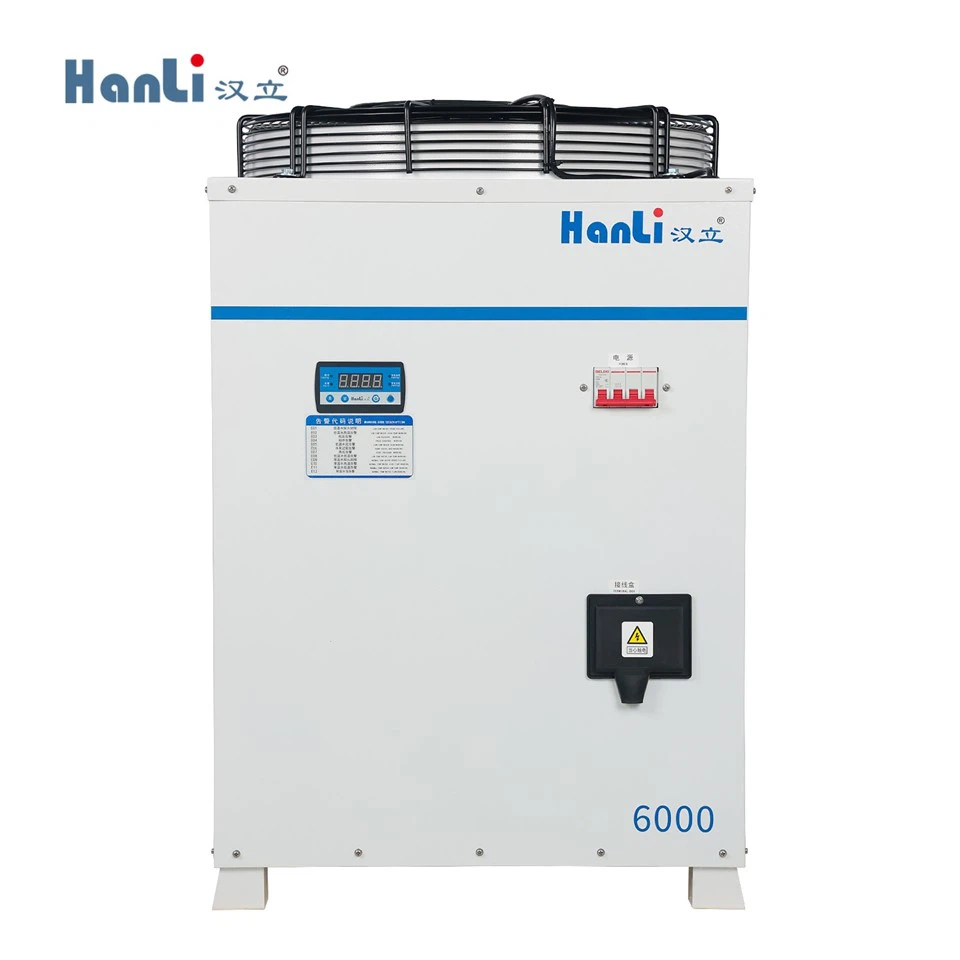

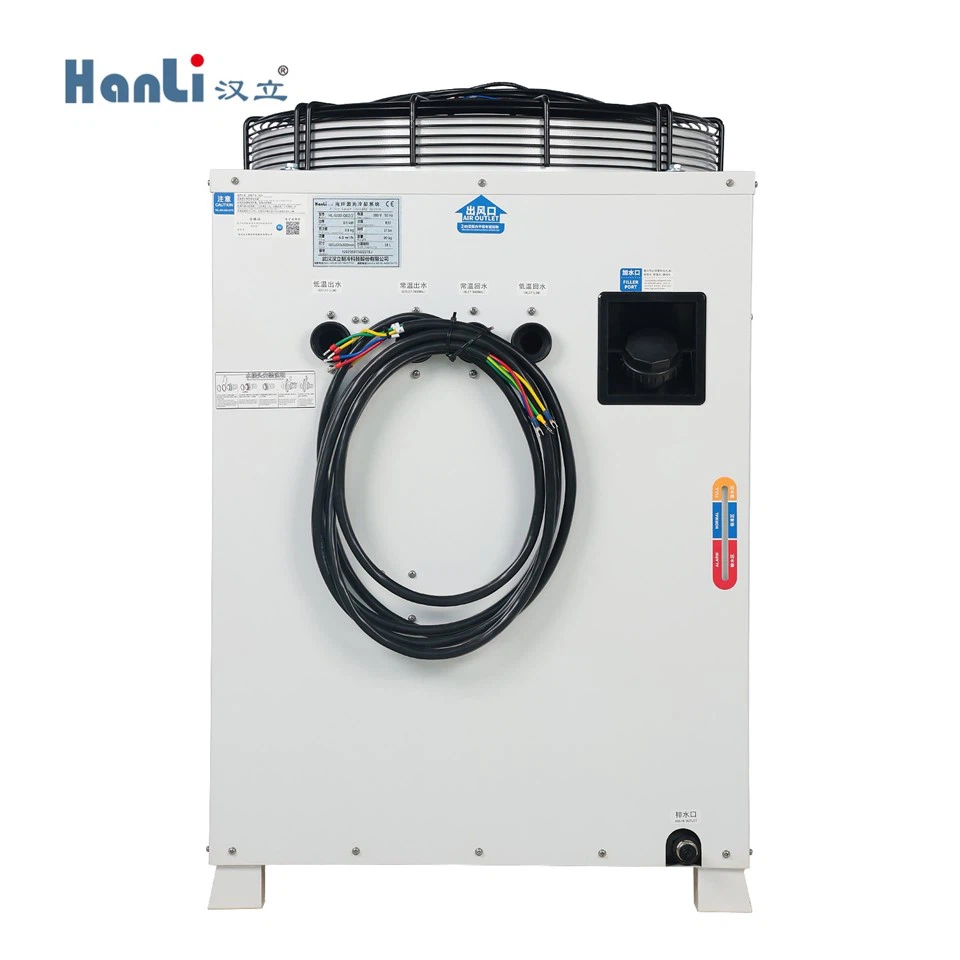

HL-6000 is made specifically for 6kW fiber laser processing machines. Thanks to the dual temperature control circuit inside the chiller, HL-6000 water chiller is able to regulate and maintain the temperature of two parts - the laser and the optics. Both the refrigeration circuit and the water temperature are controlled by the intelligent digital control panel.
Industrial water chiller HL6000 is equipped with high performance water pump, which guarantees that water circulation between the chiller and the above-mentioned two heat-producing parts can be ongoing.
|
|
|
|
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
maximum current |
13.5A |
14.5A |
|
Rated power |
8.5kW |
9.9kW |
|
Horsepower |
5hp |
5hp |
|
Compressor power |
3.64kw |
4.04kw |
|
Electric heating power |
1.25+1.25Kw |
|
|
Pump power |
0.75kw |
1.0kw |
|
Fan power |
0.65kw |
0.75kw |
|
Maximum air volume of the fan |
8400m³ ./h |
8450m³ ./h |
|
Rated Flow of the low temperature end |
60~66L/min |
|
|
Rated pressure of the low temperature end |
4.0bar |
|
|
Maximum pressure of low temperature end |
6.0bar |
|
|
Dimensions of the low temperature end interface |
Φ37.5×48-Φ25mm Pagoda joints |
|
|
Water temperature setting range of low temperature end |
21-32℃ |
|
|
Rated Flow of the high temperature end |
2.0L/min |
|
|
Rated pressure of the high temperature end |
3.5bar |
|
|
Dimensions of the high temperature end interface |
Φ37.5×48-Φ13mm Pagoda joints |
|
|
Water temperature setting range of high temperature end |
26-35℃ |
|
|
Water temperature control accuracy |
±1℃ |
|
|
Water Tank |
38L |
|
|
Application environment |
5-40℃ |
|
|
Coolant |
R32 |
R410A |
|
Noise Level |
≈ 75dB(A) |
|
|
Net Weight |
90KG |
|
|
Gross Weight |
102KG |
|
|
Machine dimension |
665×610×920mm |
|
|
Packing dimension |
710×670×1090mm |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
|
