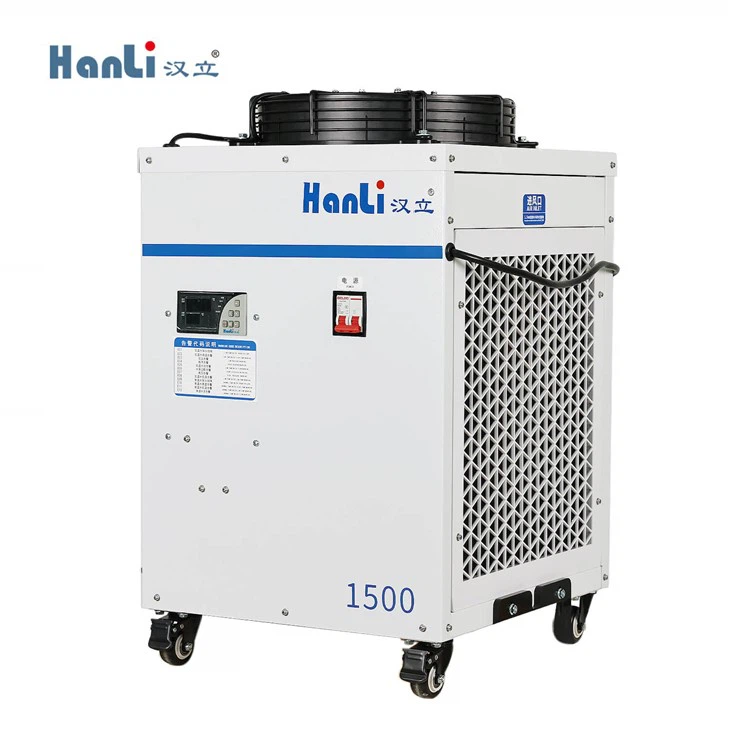

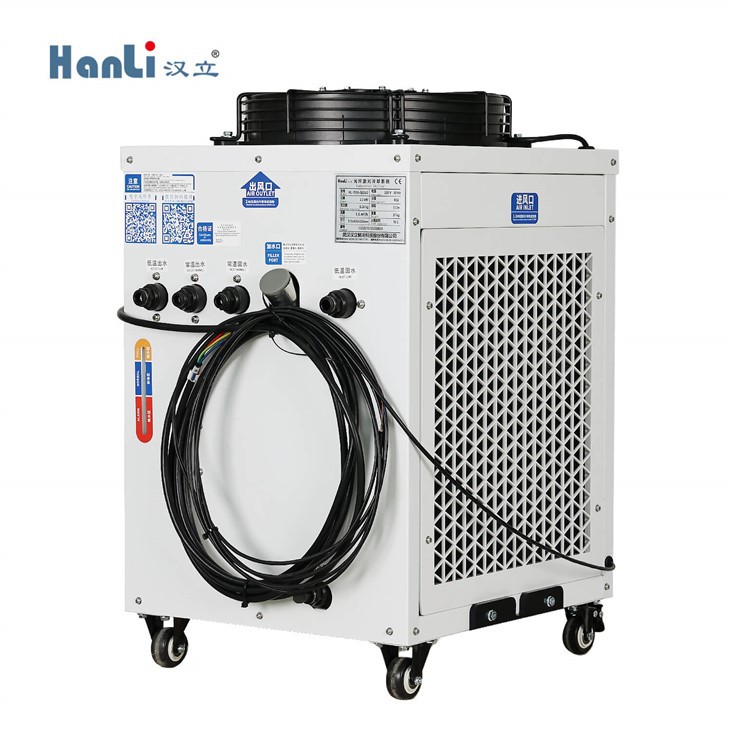

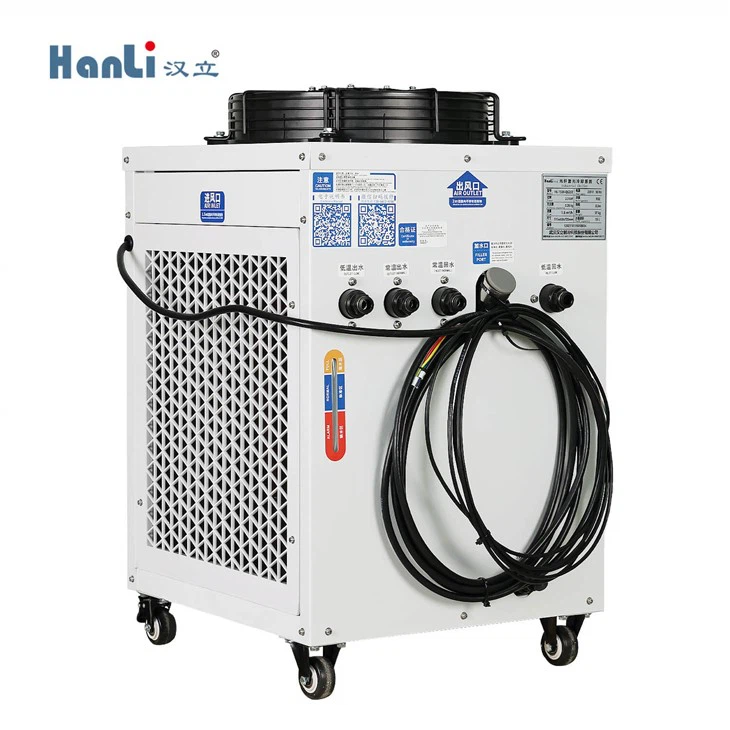

Fiber Laser 1500w
A 1500W chiller is definitely an essential component for cooling a 1500W laser cutting machine
Laser cutting machines generate a lot of heat during operation, and this heat can affect the quality of the cut, damage the machine's components, and even pose a safety risk to the operator
A chiller is designed to remove heat from the laser system and dissipate it into the surrounding environment, ensuring that the machine remains at a safe and stable operating temperature
A chiller can also extend the lifespan of the machine by reducing wear and tear on the components. Without a chiller, a laser cutting machine may suffer from inconsistent cuts, reduced precision, and shortened lifespan
- Product Introduction
Product Features
A chiller is an essential component of a laser cutting machine, as it helps to remove excess heat generated during the laser cutting process. A 1500w chiller is specifically designed to support a 1500w laser cutting machine by cooling the internal components of the machine, such as the laser source, mirrors, and lenses.
The cooling system of a laser cutting machine is crucial to maintain the precision, accuracy, and quality of the cutting process. A chiller helps to keep the temperature constant and prevents overheating, which can damage the machine and affect the quality of the final product.
When it comes to cooling a 1500w laser cutting machine, the chiller should have a cooling capacity of 4600w, which means it can manage the heat produced by the machine efficiently. The chiller should be able to maintain a stable temperature of around 20-25°C, which is the ideal operating temperature for a laser cutting machine.
In conclusion, a 1500w chiller is an essential component for cooling a 1500w laser cutting machine. It helps to maintain the performance and quality of the machine by controlling the temperature during the laser cutting process. Investing in a high-quality chiller will ensure the longevity of your laser cutting machine and improve the accuracy of the cutting process.
Specification
|
|
Uint |
|
|
|
Voltage & Frequency |
1p 220V/50Hz |
1p 220V/60Hz |
|
|
Rated power |
kW |
2.3 |
2.3 |
|
maximum current |
A |
9.2 |
9.2 |
|
Cooling capacity |
kW |
4.7 |
4.8 |
|
Compressor power |
kW |
0.895 |
0.83 |
|
Electric heating power |
kW |
0.9 |
|
|
Pump power |
kW |
0.36 |
0.36 |
|
Fan power |
kW |
0.1 |
0.121 |
|
Maximum air volume of the fan |
m³/h |
1920 |
2070 |
|
Rated Flow of the low temperature end |
L/min |
16.5～18 |
|
|
Rated pressure of the low temperature end |
bar |
3.0 |
|
|
Maximum pressure of low temperature end |
bar |
5.6 |
|
|
Dimensions of the low temperature end interface |
G1/2-Φ12mm quick connector |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
1.2～1.5 |
|
|
Rated pressure of the high temperature end |
bar |
3.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ10mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5℃ |
|
|
Water Tank |
L |
15 |
|
|
Application environment |
℃ |
-20～40℃ |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈64 |
|
|
Machine dimension |
mm |
515×430×725 |
|
|
Net Weight |
kg |
37 |
|
|
Packing dimension |
mm |
555×490×870 |
|
|
Gross Weight |
kg |
43 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
