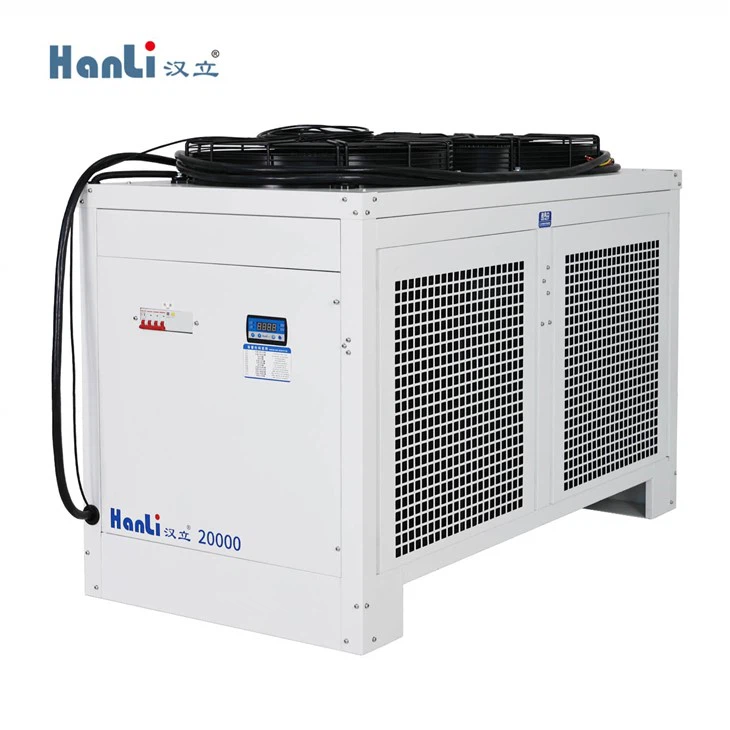

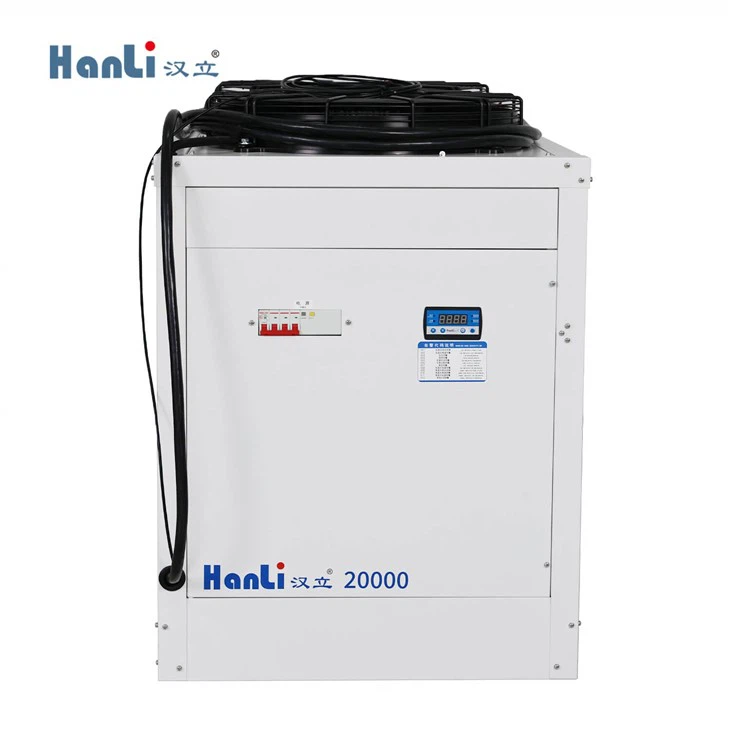

Chiller for Fiber Laser Cutting Machine Manufacturer
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Application environment: 0°C ~45°C
- Product Introduction
Product Features
The dual cooling circuit and active cooling technology ensure temperature stability with an accuracy of ±1°C.
This makes it suitable for use in environments with temperatures ranging from 0°C to 45°C.
The refrigerant used is R32, which is environmentally friendly.
The user-friendly controller interface comes with integrated alarm functions to warn of any deviations from the desired temperature. Additionally, the back-mounted fill port and visual water level make it easy to use.
It is optimized for high performance at low temperatures and is ready for immediate use.
Overall, it offers high efficiency and environmental protection.
|
|
Uint |
HL-20000-QG2/2 |
HL-20000-EH-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
|
Rated power |
kW |
20.0 |
20.0 |
|
maximum current |
A |
40.0 |
40.0 |
|
Cooling capacity |
kW |
50.0 |
50.0 |
|
Compressor power |
kW |
9.820 |
9.303 |
|
Electric heating power |
kW |
3.0/5.0 |
|
|
Pump power |
kW |
3.0 |
3.0 |
|
Fan power |
kW |
0.55×2 |
0.75×2 |
|
Maximum air volume of the fan |
m³/h |
8400×2 |
8450×2 |
|
Rated Flow of the low temperature end |
L/min |
≥200 |
|
|
Rated pressure of the low temperature end |
bar |
5.0 |
|
|
Maximum pressure of low temperature end |
bar |
6.6 |
|
|
Dimensions of the low temperature end interface |
G2-Φ32mm Pagoda joints*2 |
||
|
Water temperature setting range of low temperature end |
℃ |
21-32 |
|
|
Rated Flow of the high temperature end |
L/min |
4.5 |
|
|
Rated pressure of the high temperature end |
bar |
5.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ13mm quick connector*2 |
||
|
Water temperature setting range of high temperature end |
℃ |
26-35 |
|
|
Water temperature control accuracy |
℃ |
±1 |
|
|
Water Tank |
L |
160 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
247 |
|
|
Net Weight |
kg |
1590×750×1010 |
|
|
Packing dimension |
mm |
256 |
|
|
Gross Weight |
kg |
1670×815× 1060 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
