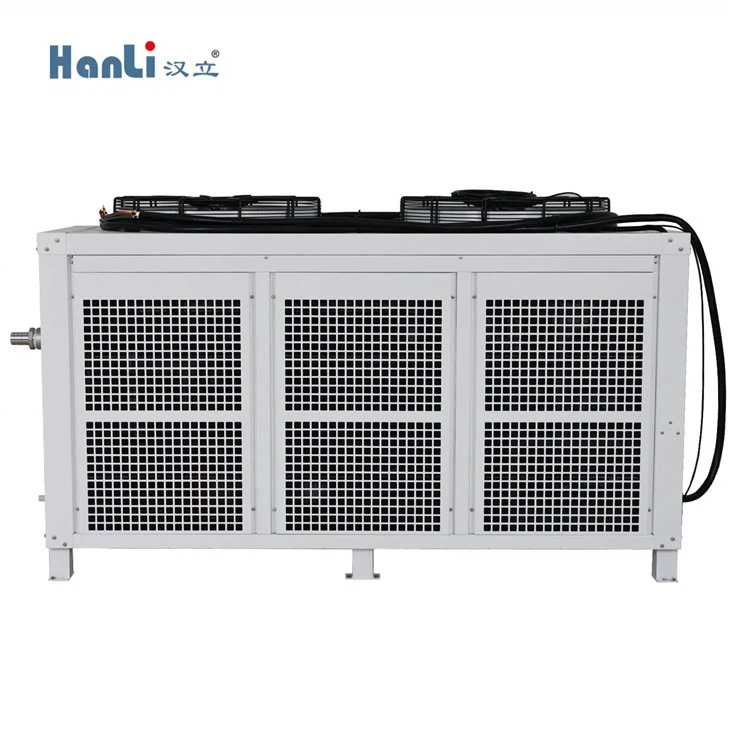

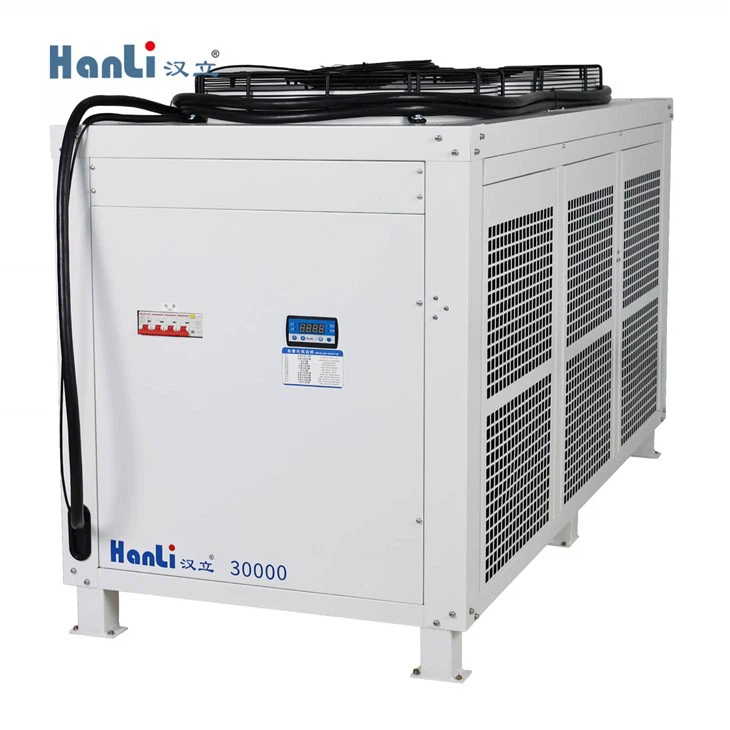

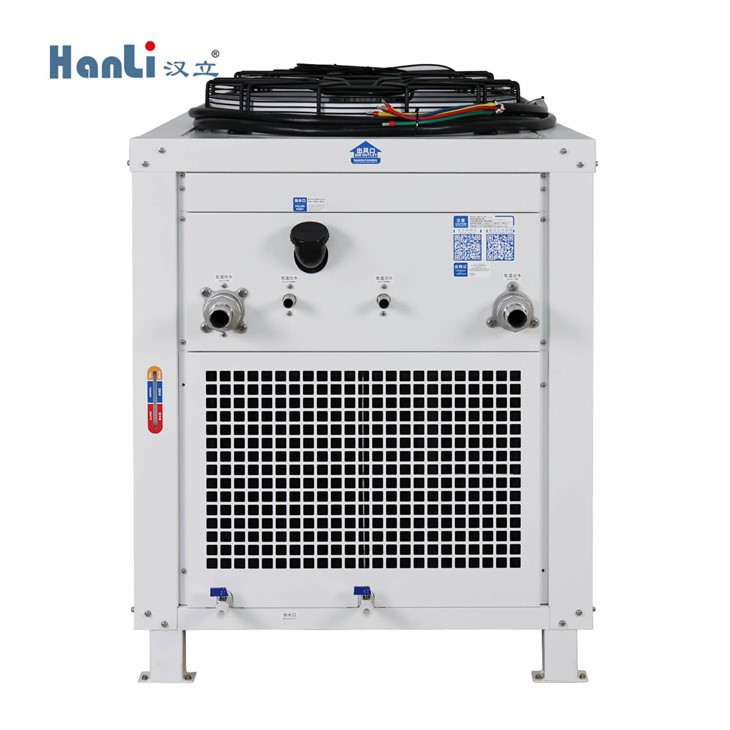

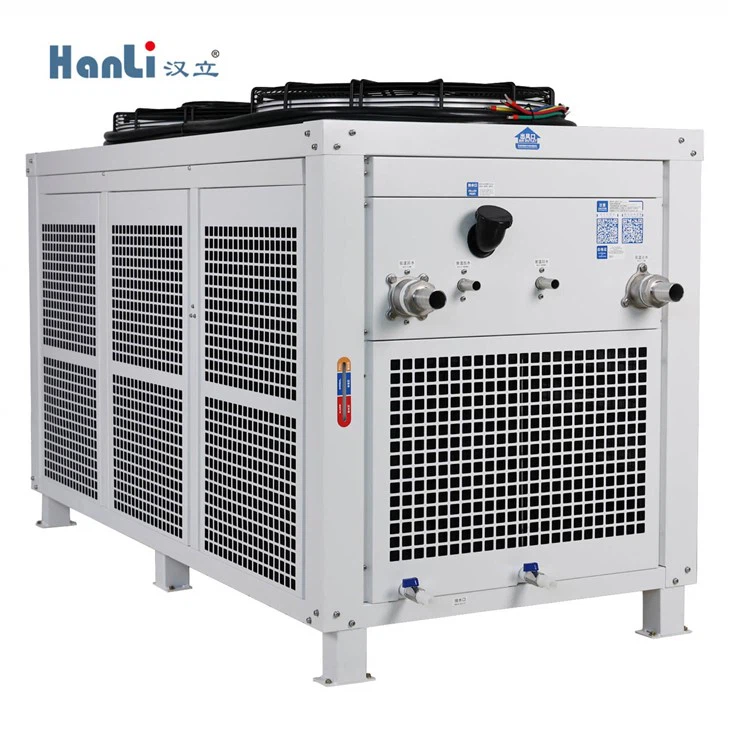

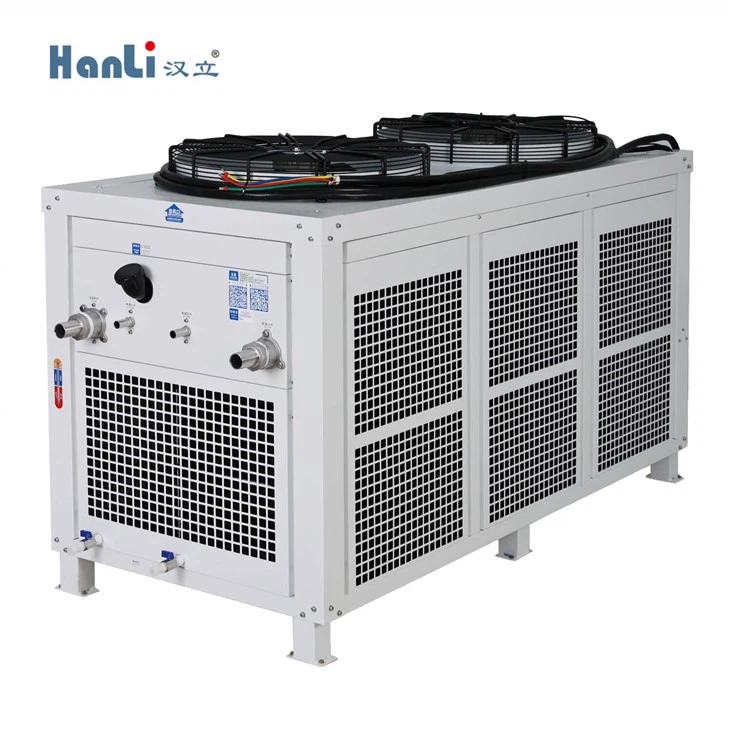

Hanli 30000w Chiller for Laser Cutting Machine
* Application environment: 0°C ~45°C
* Refrigerant: R410A
* User-friendly controller interface
* Integrated alarm functions
- Product Introduction
Product Features
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Application environment: 0°C ~45°C
* Refrigerant: R410A
* User-friendly controller interface
* Integrated alarm functions
* Back mounted fill port and visual water level
* Optimized for high performance at low temperatures
* Ready for immediate use
* Efficiency & Environmental protection
|
|
Uint |
HL-30000-QG2/2 |
HL-30000-EH-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
|
Rated power |
kW |
30.0 |
30.0 |
|
maximum current |
A |
55.0 |
55.0 |
|
Cooling capacity |
kW |
73.0 |
73.0 |
|
Compressor power |
kW |
13.2 |
15.1 |
|
Electric heating power |
kW |
0.8/10.0 |
|
|
Pump power |
kW |
0.36/4.0 |
0.36/5.0 |
|
Fan power |
kW |
0.95×2 |
0.95×2 |
|
Maximum air volume of the fan |
m³/h |
11000×2 |
11000×2 |
|
Rated Flow of the low temperature end |
L/min |
≥280 |
|
|
Rated pressure of the low temperature end |
bar |
5.5 |
|
|
Maximum pressure of low temperature end |
bar |
6.5 |
|
|
Dimensions of the low temperature end interface |
G2-Φ38mm Pagoda joints*2 |
||
|
Water temperature setting range of low temperature end |
℃ |
21-26 |
|
|
Rated Flow of the high temperature end |
L/min |
5.5 |
|
|
Rated pressure of the high temperature end |
bar |
5.5 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ20mm quick connector*2 |
||
|
Water temperature setting range of high temperature end |
℃ |
26-35 |
|
|
Water temperature control accuracy |
℃ |
±1 |
|
|
Water Tank |
L |
240 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
318 |
|
|
Net Weight |
kg |
1835×840×1130 |
|
|
Packing dimension |
mm |
388 |
|
|
Gross Weight |
kg |
2045×900×1135 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
