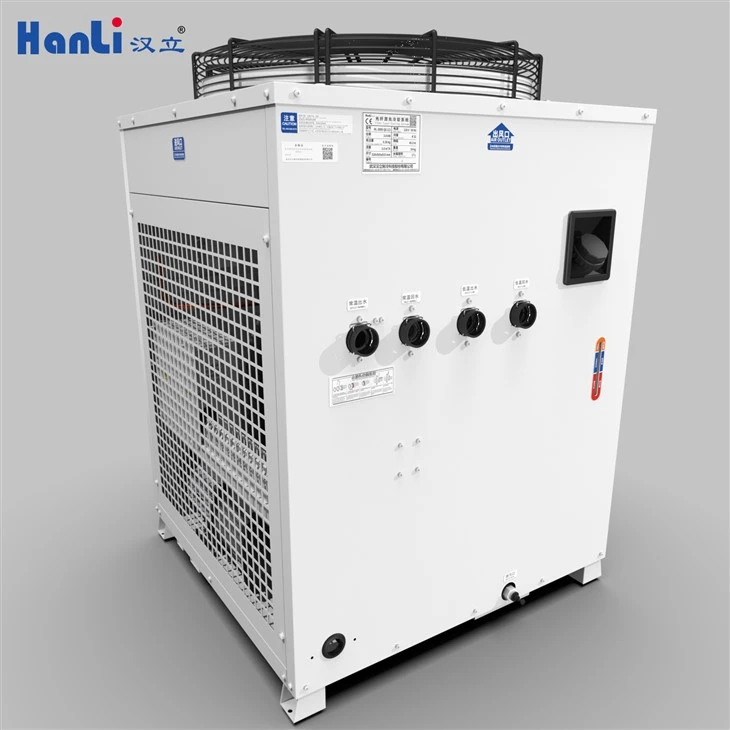

Cooling Industrial Lasers
1、Process Cooling System 12000W Fiber Laser Cutter
2、Large cooling capacity , superior energy efficiency
3、It has multiple alarm functions which can provide great protection to the equipment, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm
- Product Introduction
Product Features
1,Process Cooling System 12000W Fiber Laser Cutter
2,Large cooling capacity , superior energy efficiency
3,It has multiple alarm functions which can provide great protection to the equipment, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm
4The cooling system is designed specifically for the high power output of the 12000W fiber laser cutter, ensuring that it remains at optimal operating temperatures for extended periods of time.
5Additionally, the system has a large cooling capacity to ensure that the high heat generated by the laser cutter is dissipated quickly and effectively.
6 This leads to greater energy efficiency, as the system does not have to work as hard to maintain the required operating temperatures.
7 The cooling system also comes with multiple alarm functions, such as compressor time-delay protection, compressor overcurrent protection, water flow alarm, and over high/low temperature alarm.
8 These alarms provide great protection to the equipment by alerting the user to any issues that may arise with the cooling system, allowing for prompt and effective maintenance or repairs.
9 Overall, the Process Cooling System for the 12000W Fiber Laser Cutter is a highly efficient, reliable, and protective system that is essential for the safe and efficient operation of the laser cutting equipment.
|
|
HL-12000-QG2/2 |
HL-12000-EH-QG2/ |
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
maximum current |
26.5A |
26.5A |
|
Rated power |
18.0kW |
18.0kW |
|
Horsepower |
8hp |
8hp |
|
Compressor power |
2.99kw |
6.03kw |
|
Electric heating power |
1.6+1.4Kw |
|
|
Pump power |
2.2w |
2.2kw |
|
Fan power |
0.95kw |
0.98kw |
|
Maximum air volume of the fan |
11810m³ ./h |
12130m³ ./h |
|
Rated Flow of the low temperature end |
120~132L/min |
|
|
Rated pressure of the low temperature end |
4.0bar |
|
|
Maximum pressure of low temperature end |
7.0bar |
|
|
Dimensions of the low temperature end interface |
Φ37.5×60-Φ32mm Pagoda joints |
|
|
Water temperature setting range of low temperature end |
21-32℃ |
|
|
Rated Flow of the high temperature end |
3.0L/min |
|
|
Rated pressure of the high temperature end |
4.0bar |
|
|
Dimensions of the high temperature end interface |
Φ37.5×48-Φ13mm Pagoda joints |
|
|
Water temperature setting range of high temperature end |
26-35℃ |
|
|
Water temperature control accuracy |
±1℃ |
|
|
Water Tank |
77L |
|
|
Application environment |
5-40℃ |
|
|
Coolant |
R32 |
|
|
Noise Level |
≈ 74dB(A) |
|
|
Net Weight |
145KG |
|
|
Gross Weight |
160KG |
|
|
Machine dimension |
780×760 × 1060mm |
|
|
Packing dimension |
820×810 × 1240mm |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
|
