Laser Cooling System

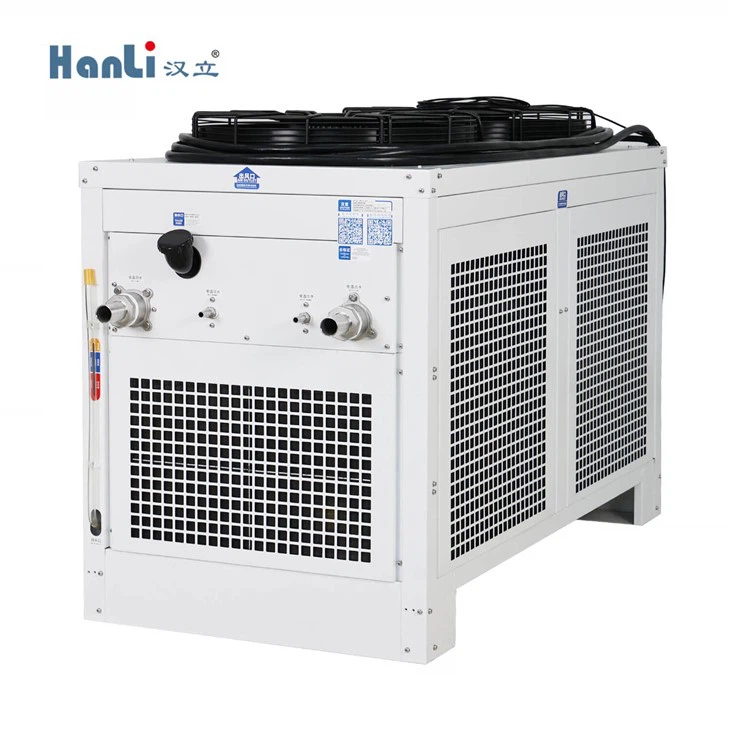

Industrial Chiller HL-20000 For 20kw High Performance Fiber Laser
Large capacity industrial refrigeration unit HL-20000-QG2/2 is specifically developed to meet the demanding requirements of fiber laser up to 20000W.
- Product Introduction
Product Features
Industrial Chiller HL-20000 For 20kw High Performance Fiber Laser
Large capacity industrial refrigeration unit HL-20000-QG2/2 is specifically developed to meet the demanding requirements of fiber laser up to 20000W.
This chiller unit is designed to provide effective cooling for high-performance fiber lasers that require a cooling capacity of up to 20 kW. With its large capacity and advanced features, the HL-20000-QG22 is a reliable and efficient solution for industrial laser cutting and welding operations.
The chiller is equipped with a high-quality compressor, a large-capacity water pump, and a high-performance heat exchanger, which work together to maintain the temperature of the fiber laser at a stable level. The unit uses environmentally friendly refrigerant and has a low noise level, making it suitable for use in various industrial settings.
In addition to its advanced cooling capabilities, the HL-20000-QG22 also has a user-friendly interface that allows for easy operation and monitoring. The unit comes with a built-in control system that can be customized to meet specific workflow requirements, and it has a range of safety features to ensure optimal performance and protection.
Overall, the HL-20000-QG22 is a high-quality and reliable industrial chiller unit that is designed to meet the demanding cooling requirements of high-performance fiber lasers. Its advanced features, large capacity, and user-friendly interface make it an ideal choice for industrial laser cutting and welding applications.
|
|
Uint |
HL-20000-QG2/2 |
HL-20000-EH-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
|
Rated power |
kW |
20.0 |
20.0 |
|
maximum current |
A |
40.0 |
40.0 |
|
Cooling capacity |
kW |
50.0 |
50.0 |
|
Compressor power |
kW |
9.820 |
9.303 |
|
Electric heating power |
kW |
3.0/5.0 |
|
|
Pump power |
kW |
3.0 |
3.0 |
|
Fan power |
kW |
0.55×2 |
0.75×2 |
|
Maximum air volume of the fan |
m³/h |
8400×2 |
8450×2 |
|
Rated Flow of the low temperature end |
L/min |
≥200 |
|
|
Rated pressure of the low temperature end |
bar |
5.0 |
|
|
Maximum pressure of low temperature end |
bar |
6.6 |
|
|
Dimensions of the low temperature end interface |
G2-Φ32mm Pagoda joints*2 |
||
|
Water temperature setting range of low temperature end |
℃ |
21-32 |
|
|
Rated Flow of the high temperature end |
L/min |
4.5 |
|
|
Rated pressure of the high temperature end |
bar |
5.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ13mm quick connector*2 |
||
|
Water temperature setting range of high temperature end |
℃ |
26-35 |
|
|
Water temperature control accuracy |
℃ |
±1 |
|
|
Water Tank |
L |
160 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
247 |
|
|
Net Weight |
kg |
1590×750×1010 |
|
|
Packing dimension |
mm |
256 |
|
|
Gross Weight |
kg |
1670×815× 1060 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
