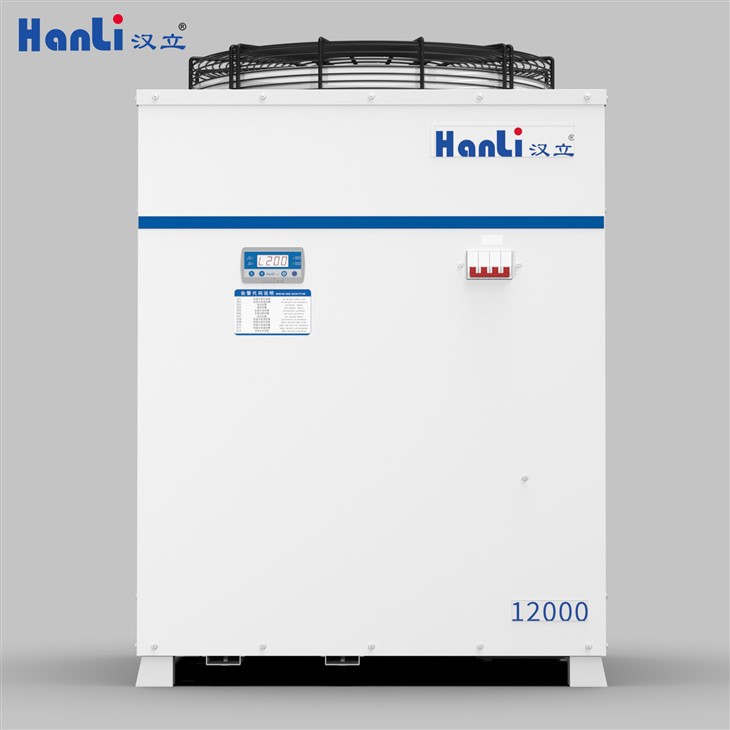

Hanli Chiller Cutting 12000w Laser Cooling System

HL-12000-QG2/2

HL-12000-EH-QG2/

Voltage & Frequency

3p 380V/50Hz

3p 380V/60Hz

maximum current

26.5A

26.5A

Rated power

18.0kW

18.0kW

Horsepower

8hp

8hp

Compressor power

2.99kw

6.03kw

Electric heating power

1.6+1.4Kw

Pump power

2.2w

2.2kw

Fan power

0.95kw

0.98kw

Maximum air volume of the fan

11810m³ ./h

12130m³ ./h

Rated Flow of the low temperature end

120~132L/min

Rated pressure of the low temperature end

4.0bar

Maximum pressure of low temperature end

7.0bar

Dimensions of the low temperature end interface

Φ37.5×60-Φ32mm Pagoda joints

Water temperature setting range of low temperature end

21-32℃

Rated Flow of the high temperature end

3.0L/min

Rated pressure of the high temperature end

4.0bar

Dimensions of the high temperature end interface

Φ37.5×48-Φ13mm Pagoda joints

Water temperature setting range of high temperature end

26-35℃

Water temperature control accuracy

±1℃

Water Tank

77L

Application environment

5-40℃

Coolant

R32

Noise Level

≈ 74dB(A)

Net Weight

145KG

Gross Weight

160KG

Machine dimension

780×760 × 1060mm

Packing dimension

820×810 × 1240mm

Suitable cooling medium

Pure water , glycol

solution(concentration ≤ 30%)
