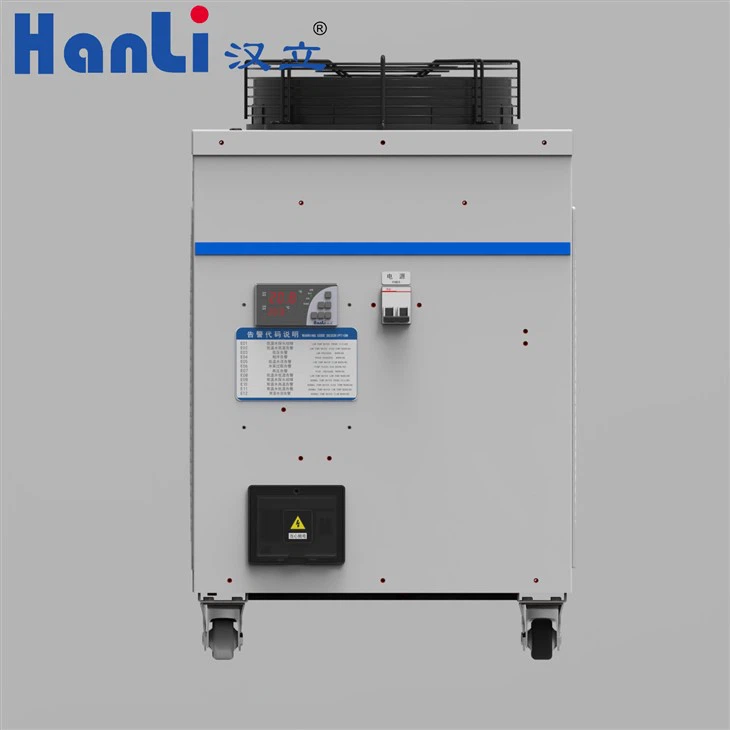

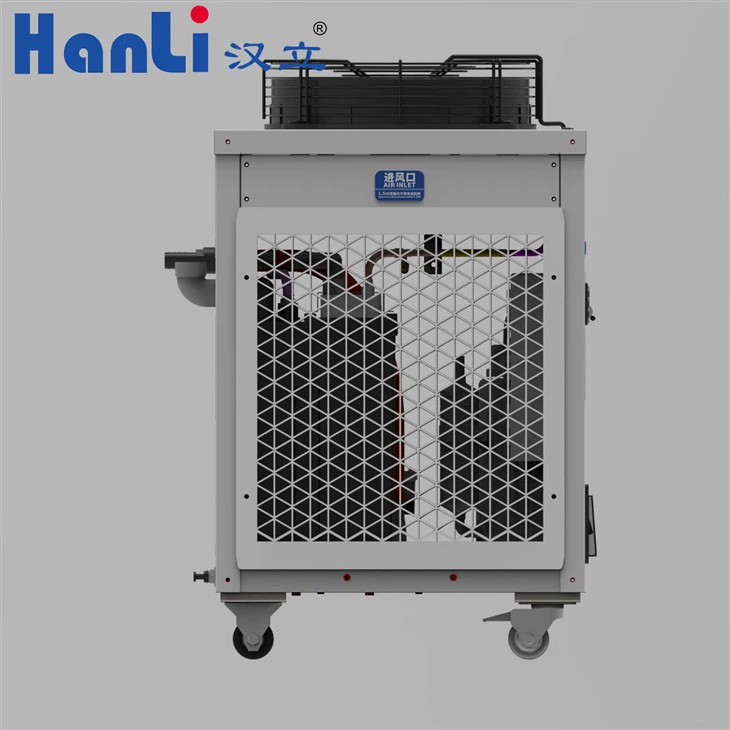

Industrial 1HP New Model Water Chiller Water Cooling Machine With Pump For Welding And Induction Heating
Hanli's new model water chiller for induction heater, model: GYH-01-QG, cooling capacity:1HP ,has the advantages of precise temperature control, stable performance, and high cooling capacity. It is suitable for various thermal induction welding, smelting, quenching, resistance welding printers, injection molding machines and other application scenarios. This product is an excellent chiller in the industry and can meet customers' diverse cooling needs.
- Product Introduction
|
Model |
GYH-01-QG |
|
Voltage & Frequency |
1p 220V/50Hz |
|
maximum current |
9.5A |
|
Rated power |
2.1kW |
|
Horsepower |
1hp |
|
Compressor power |
0.895kw |
|
Pump power |
0.32kw |
|
Fan power |
0. 1kw |
|
Maximum air volume of the fan |
1920m³ ./h |
|
Rated Water Flow |
18 L/min |
|
Maximum pressure |
3.0bar |
|
Dimensions of the interface |
G1/2-Φ12mm quick connector |
|
Water temperature setting range |
21-32℃ |
|
Water temperature control accuracy |
±1℃ |
|
Water Tank |
13L |
|
Application environment |
5-40℃ |
|
Coolant |
R32 |
|
Noise Level |
≈64dB(A) |
|
Net Weight |
38KG |
|
Gross weight |
47KG |
|
Machine dimension |
515×470×735mm |
|
Packing dimension |
560×510×875mm |
|
Suitable cooling medium |
Pure water, glycol solution(concentration ≤ 30%) |
