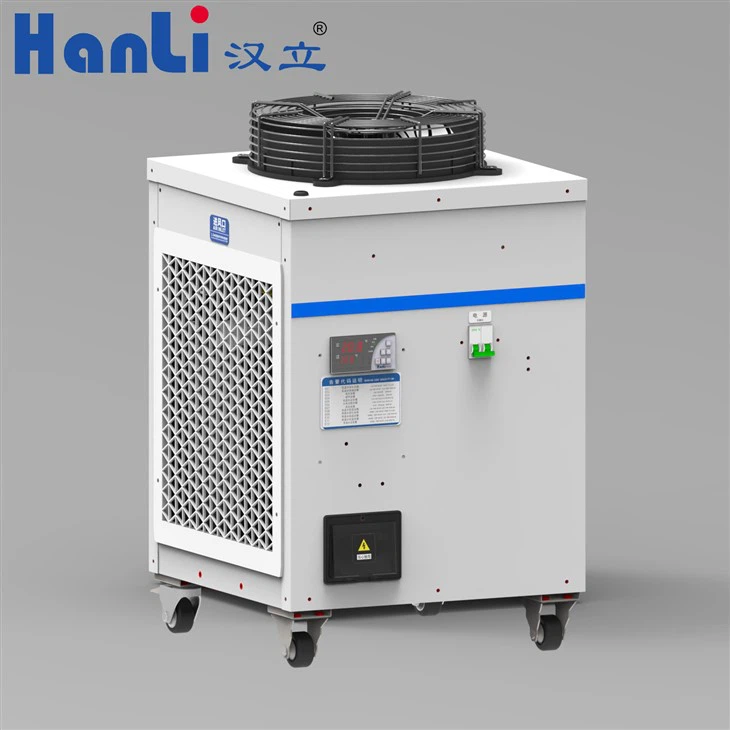

2HP Water Chiller For Induction Heater Injection Molding Machines
The refrigeration equipment we recommend is GYH-02-QG, with a cooling capacity of 2HP and a compressor power of 1.32kw, which can provide stable and efficient refrigeration for your induction heating equipment. This water cooling machine not only has good refrigeration performance, but also has the advantages of energy saving and environmental protection, stable operation, and easy maintenance, which can help you reduce production costs and improve production efficiency.
- Product Introduction
|
|
GYH-02-QG |
|
Voltage & Frequency |
1p 220V/50Hz |
|
maximum current |
10.0A |
|
Rated power |
2.2kW |
|
Horsepower |
2hp |
|
Compressor power |
1.32kw |
|
Pump power |
0.43kw |
|
Fan power |
0. 1kw |
|
Maximum air volume of the fan |
1920m³ ./h |
|
Rated Water Flow |
23 L/min |
|
Maximum pressure |
5.6bar |
|
Dimensions of the interface |
G1/2-Φ16mm quick connector |
|
Water temperature setting range |
21-32℃ |
|
Water temperature control accuracy |
±1℃ |
|
Water Tank |
13L |
|
Application environment |
5-40℃ |
|
Coolant |
R32 |
|
Noise Level |
≈75dB(A) |
|
Net Weight |
41KG |
|
Gross weight |
50KG |
|
Machine dimension |
515×470×735mm |
|
Packing dimension |
565×515×885mm |
|
Suitable cooling medium |
Pure water, glycol solution(concentration ≤ 30%) |
