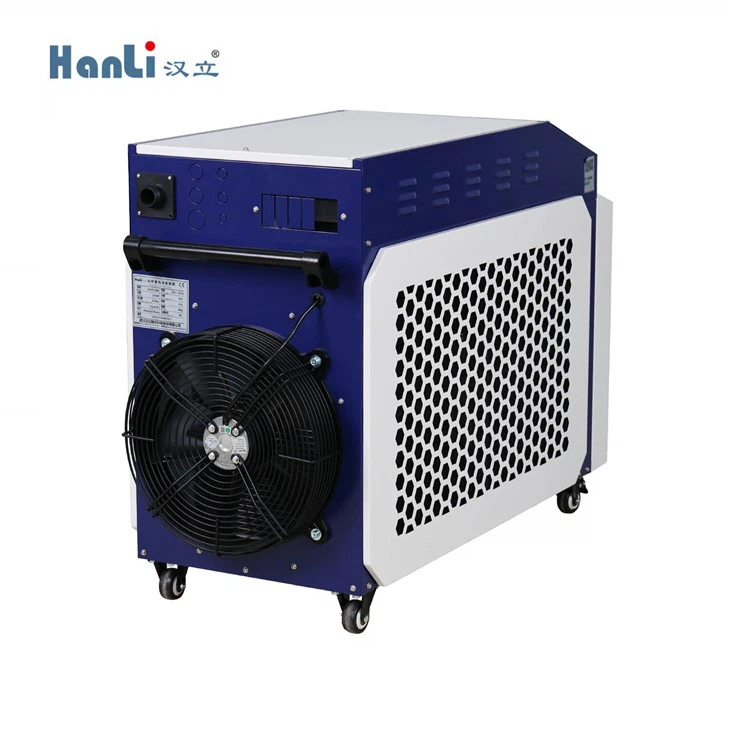

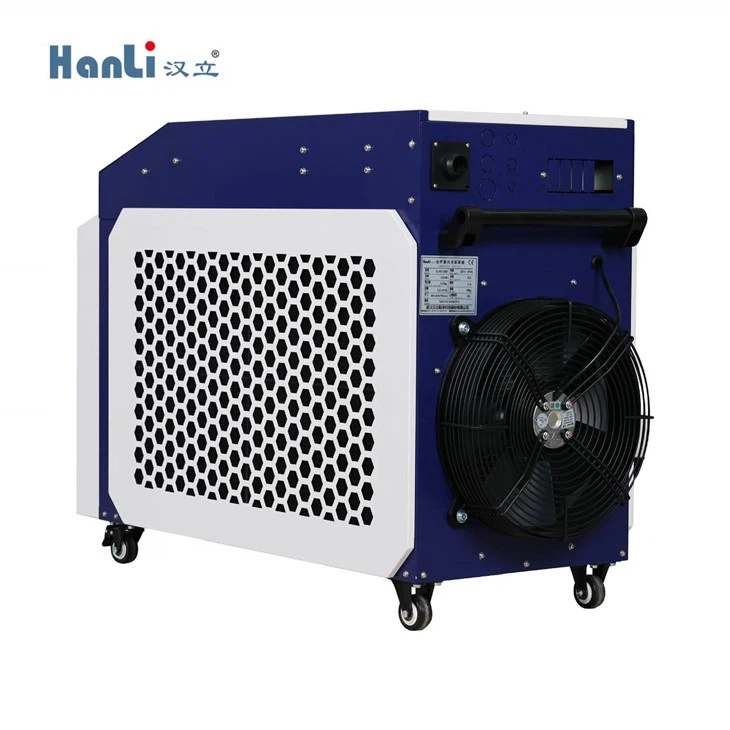

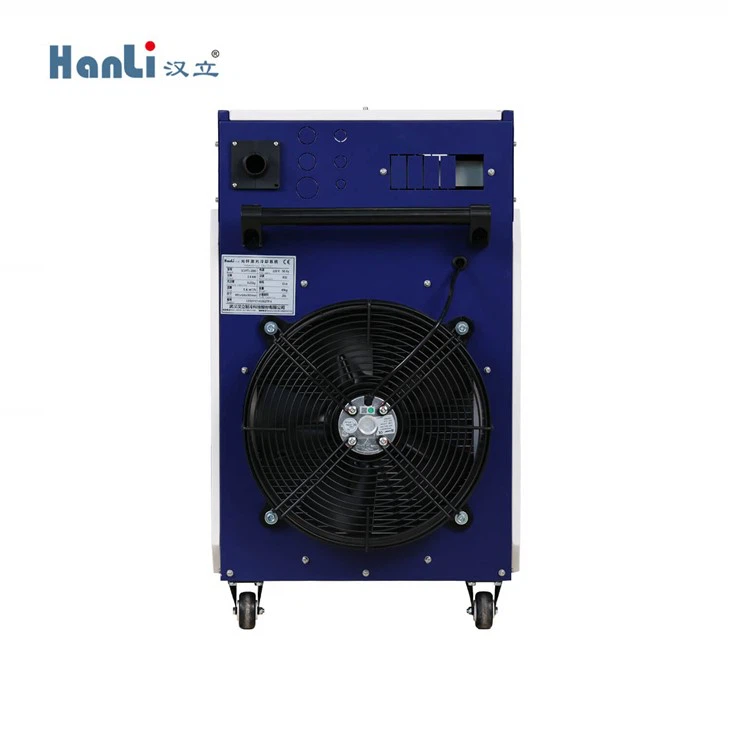

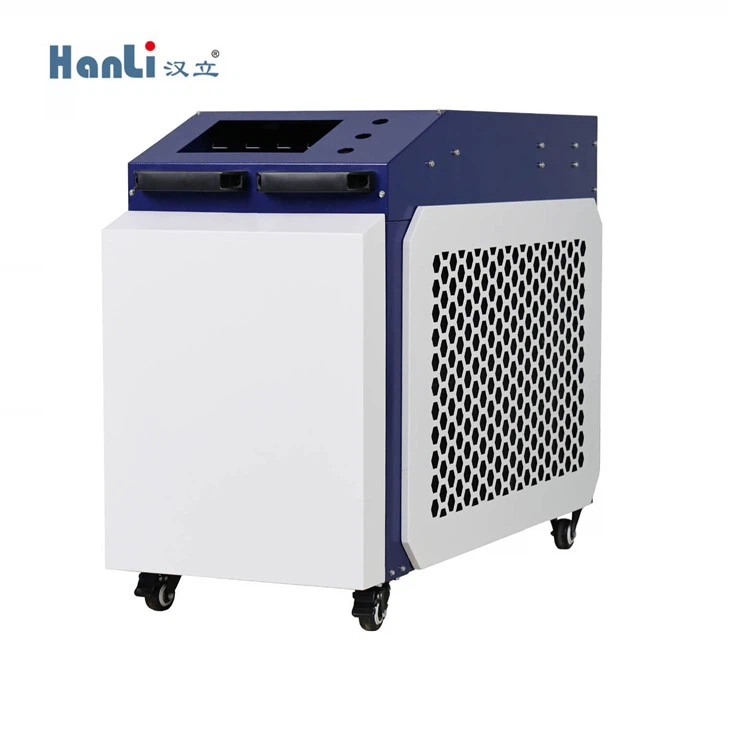

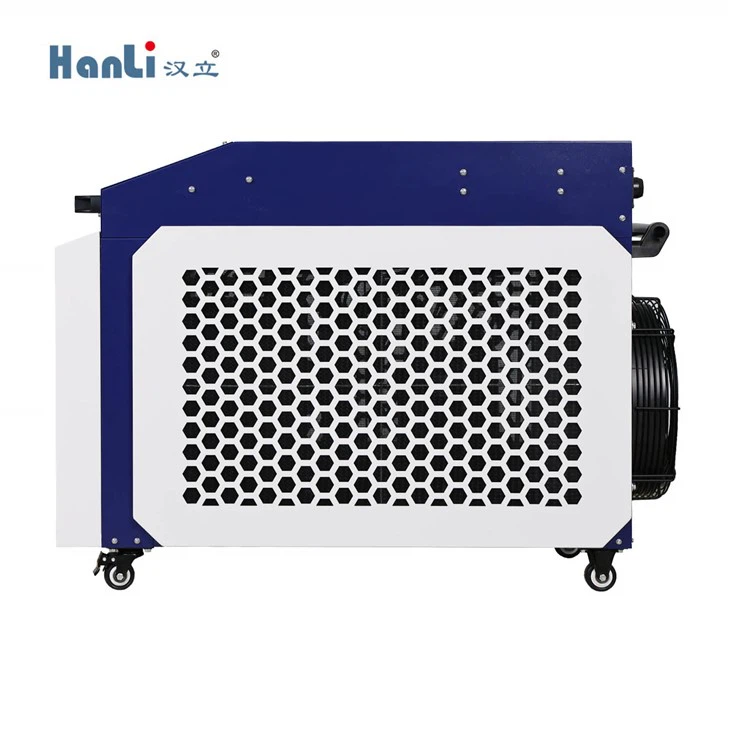

All-in-one Design Handheld Water Chiller 1500W-2000W
The SCHYTJ-1500W/2000W portable handheld welding machine is ideal for small-scale welding applications such as jewelry repairing, metalworking, and more. This machine has a compact design that saves space, making it suitable for small workshops, factories, and even personal use. One standout...
- Product Introduction
The SCHYTJ-1500W/2000W portable handheld welding machine is ideal for small-scale welding applications such as jewelry repairing, metalworking, and more. This machine has a compact design that saves space, making it suitable for small workshops, factories, and even personal use.
One standout feature of this machine is that it has a built-in Hanli laser chiller that provides effective cooling for the handheld laser welding machine. The chiller system is optimized to ensure that the laser remains at an optimal temperature during operation, improving its performance and durability. Additionally, the cabinet design ensures that the chiller system is well protected against damage from the environment.
After installing the handheld laser, the SCHYTJ-1500W/2000W machine becomes a lightweight portable laser welding all-in-one machine with universal wheels at the bottom. This design makes it easy to move the machine from one application scenario to the other, reducing downtime and saving on costs.
Overall, the SCHYTJ-1500W/2000W portable handheld welding machine is an excellent solution for small welding applications that require portability and easy maneuverability. Its built-in chiller, compact design, and easy-to-move setup make it an ideal choice for metalworking, jewelry repairing, and other similar applications.
|
Model |
SCHYTJ-1500 |
SCHYTJ-2000 |
|
|
Voltage & Frequency |
AC 1P 220 V |
||
|
Working power |
50 Hz |
50 Hz |
60 Hz |
|
Working current |
6.5 A |
10.8 A |
10.0 A |
|
Machine power |
2.1 kW |
2.4 kW |
2.2 kW |
|
Application environment |
0℃＜Ambient temperature＜45℃,relative humidity＜95% |
||
|
Tempe.control accuracy |
±1 ℃ |
||
|
Coolant |
R32 |
||
|
Cooling capacity |
4.5 kW |
5.6 kW |
|
|
Electric heating power |
400W(Normal temperature) |
400W(Normal temperature) |
|
|
Rated flow of water pump |
1.2 m³/h |
1.2 m³/h |
|
|
Max.pump lift |
30 m |
40 m |
|
|
Pump power |
0.25 kW |
0.32 kW |
|
|
Tank volume |
13 L |
||
|
Laser nozzle interface |
Φ12 Pneumatic PU pipe |
||
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
||
|
Dimension |
985×420×705(mm) |
||
|
N.W |
49 kg |
||
|
Packing size |
1030×470×855(mm) |
||
|
G.W |
58 kg |
||
|
Matching laser source |
1500W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
2000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
|
