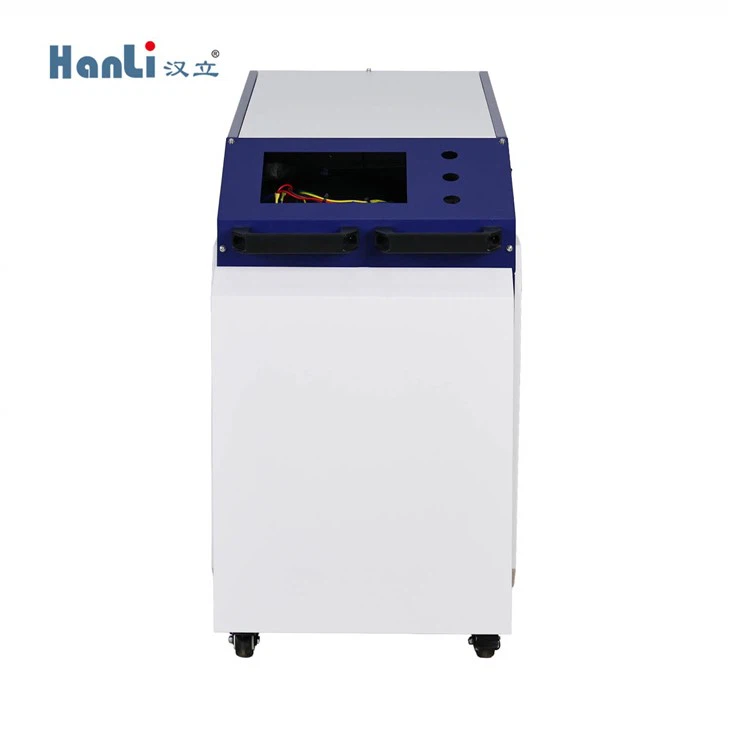

Laser Welding Body Cabinet SCHYTJ-1500 J Model
The integration of a hanli industrial chiller into a handheld laser welder provides a powerful and mobile solution for welding requirements. With the flexibility to install the laser welder on the top or right side, this equipment becomes highly portable, and it is easy to move from one location to another. Additionally, the laser gun holder and cable holder make it easy to set up and use the equipment while saving space. These features also make it possible to carry the handheld laser welder to various application sites, providing efficient and effective solutions for welding needs. Overall, the combination of a hanli industrial chiller and a handheld laser welder presents a highly positive and impactful solution for welding applications of varying complexities and sizes, ultimately contributing to overall increased productivity and efficiency.
- Product Introduction
SCHYTJ-1500 is an amazing industrial chiller designed by Hanli chiller manufacturer that can efficiently cool down a 1500W handheld laser welding machine. This machine boasts dual cooling circuits that can work simultaneously to cool the fiber laser and optics/laser gun. It has been meticulously crafted with attention to detail, making it easy to install and maintain.
This chiller is an ideal cooling device for your handheld laser welding machine, and it can also be utilized to cool down other handheld fiber laser cleaners, cutters, and engravers. The SCHYTJ-1500 chiller is incredibly efficient and reliable, and it will undoubtedly enhance the overall performance of your laser equipment.
|
Model |
SCHYTJ-1500 |
SCHYTJ-2000 |
|
|
Voltage & Frequency |
AC 1P 220 V |
||
|
Working power |
50 Hz |
50 Hz |
60 Hz |
|
Working current |
6.5 A |
10.8 A |
10.0 A |
|
Machine power |
2.1 kW |
2.4 kW |
2.2 kW |
|
Application environment |
0℃＜Ambient temperature＜45℃,relative humidity＜95% |
||
|
Tempe.control accuracy |
±1 ℃ |
||
|
Coolant |
R32 |
||
|
Cooling capacity |
4.5 kW |
5.6 kW |
|
|
Electric heating power |
400W(Normal temperature) |
400W(Normal temperature) |
|
|
Rated flow of water pump |
1.2 m³/h |
1.2 m³/h |
|
|
Max.pump lift |
30 m |
40 m |
|
|
Pump power |
0.25 kW |
0.32 kW |
|
|
Tank volume |
13 L |
||
|
Laser nozzle interface |
Φ12 Pneumatic PU pipe |
||
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
||
|
Dimension |
985×420×705(mm) |
||
|
N.W |
49 kg |
||
|
Packing size |
1030×470×855(mm) |
||
|
G.W |
58 kg |
||
|
Matching laser source |
1500W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
2000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
|
