Water Chiller for Laser Machine 6000w
1. 18000W cooling capacity; optional environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
- Product Introduction
Product Features
1. 19100W cooling capacity; optional environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature to satisfy different needs of fiber laser device and the optics;

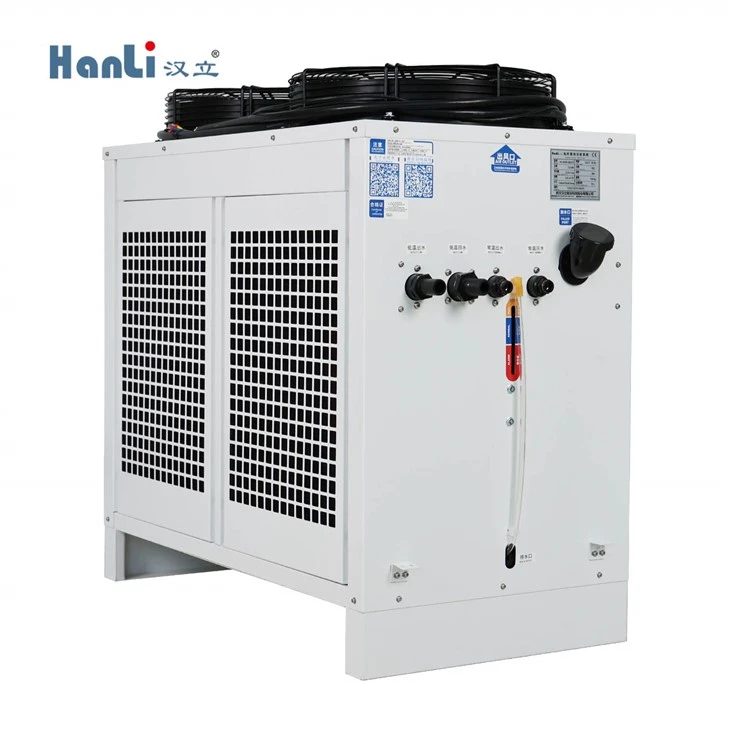

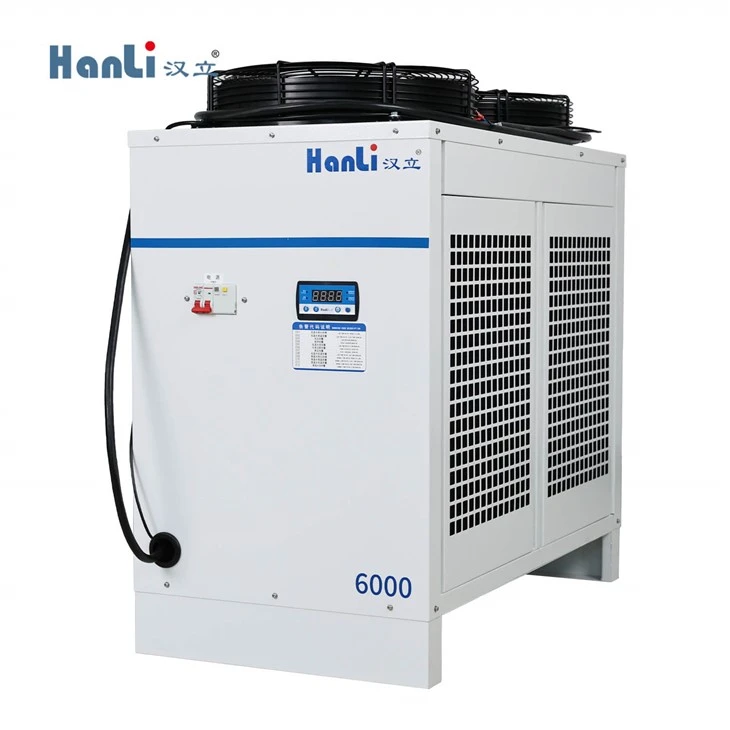

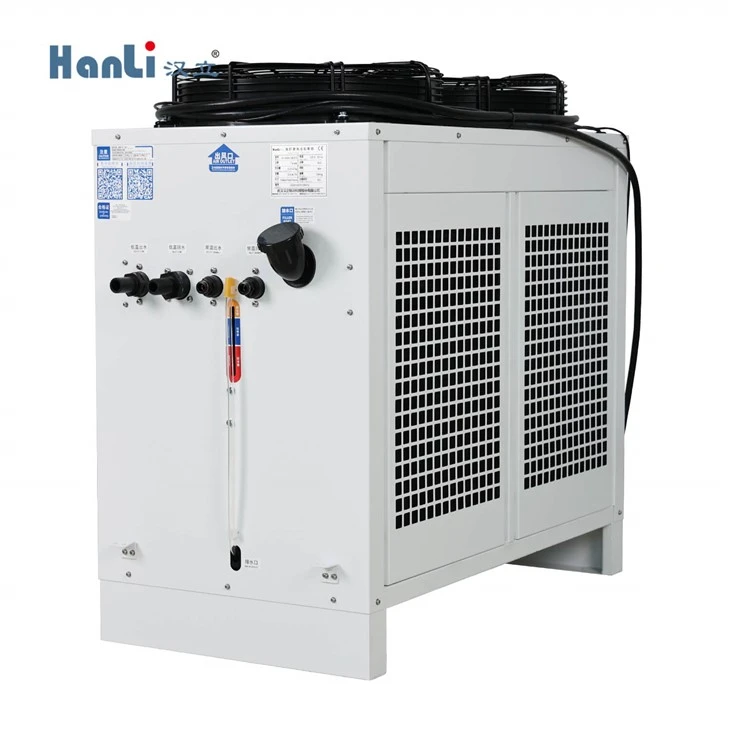

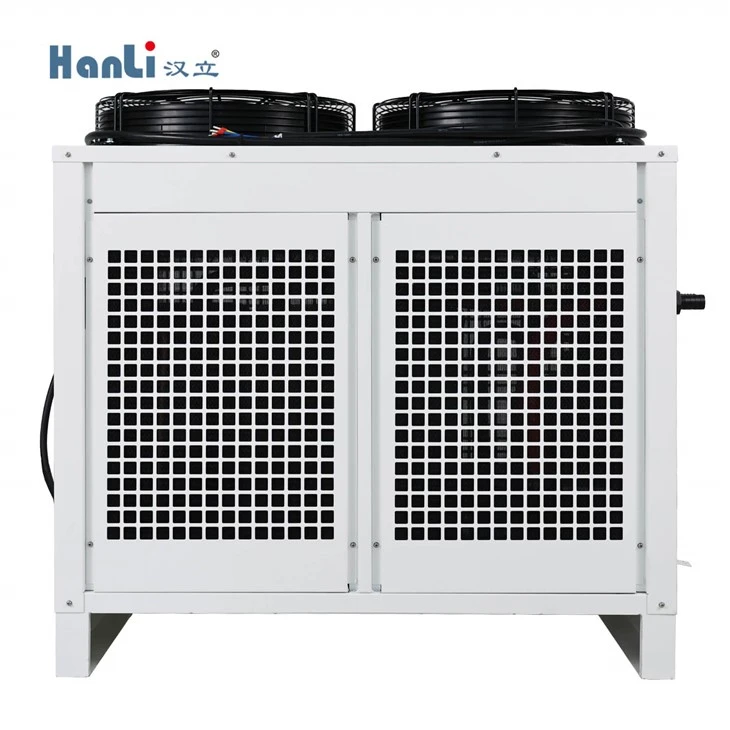

The Hanli HL-6000 industrial chiller is designed to maintain a precise water temperature range of 5°C to 35°C with an accuracy of ±1℃, making it an ideal solution for applications that require stable cooling. This chiller is built to meet CE standards and undergoes rigorous testing under simulated load conditions before leaving the factory.
One of the key features of this chiller is its compatibility with laser systems. Through intelligent communication, the HL-6000 can work seamlessly with the laser system to ensure optimal performance during laser processing. This makes it an essential part of any laser cutting or engraving setup in industries such as manufacturing, automotive, and aerospace.
In addition to its accuracy and compatibility, the HL-6000 also boasts a user-friendly interface, making it easy to configure and monitor water temperature, pressure, and flow rate. This ensures that operators can maintain the chiller's performance and avoid any potential downtime due to overheating or other issues.
Overall, the Hanli HL-6000 industrial chiller is a reliable, efficient, and smart solution for cooling applications in a variety of industrial settings.
|
|
Uint |
HL-6000-QG2/2 |
HL-6000-EH-QG2/2 |
|
Voltage & Frequency |
1p 220V/50Hz |
1p 220V/60Hz |
|
|
Rated power |
kW |
7.6 |
7.6 |
|
maximum current |
A |
28 |
28 |
|
Cooling capacity |
kW |
19.1 |
19.1 |
|
Compressor power |
kW |
1.48×2 |
1.4×2 |
|
Electric heating power |
kW |
1.25/1.4 |
|
|
Pump power |
kW |
0.88 |
0.88 |
|
Fan power |
kW |
0.208×2 |
0.208×2 |
|
Maximum air volume of the fan |
m³/h |
3955×2 |
3955×2 |
|
Rated Flow of the low temperature end |
L/min |
60～66 |
|
|
Rated pressure of the low temperature end |
bar |
4.0 |
|
|
Maximum pressure of low temperature end |
bar |
6.0 |
|
|
Dimensions of the low temperature end interface |
G3/4-Φ25mm ,G1-Φ25mm Pagoda joints |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
2.0 |
|
|
Rated pressure of the high temperature end |
bar |
3.5 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ12mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5 |
|
|
Water Tank |
L |
55 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
104 |
|
|
Net Weight |
kg |
1040×510×890 |
|
|
Packing dimension |
mm |
111 |
|
|
Gross Weight |
kg |
1100×570×960 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
