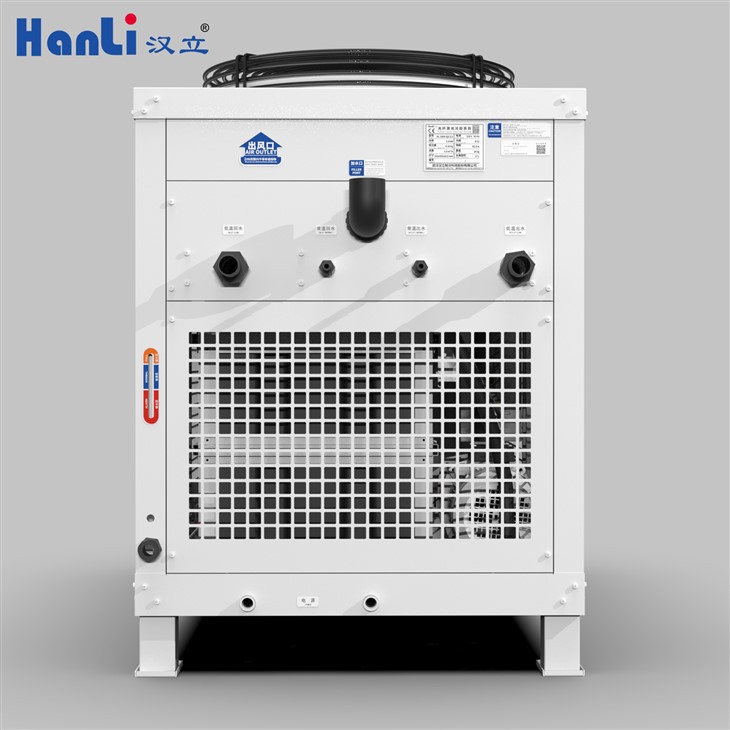

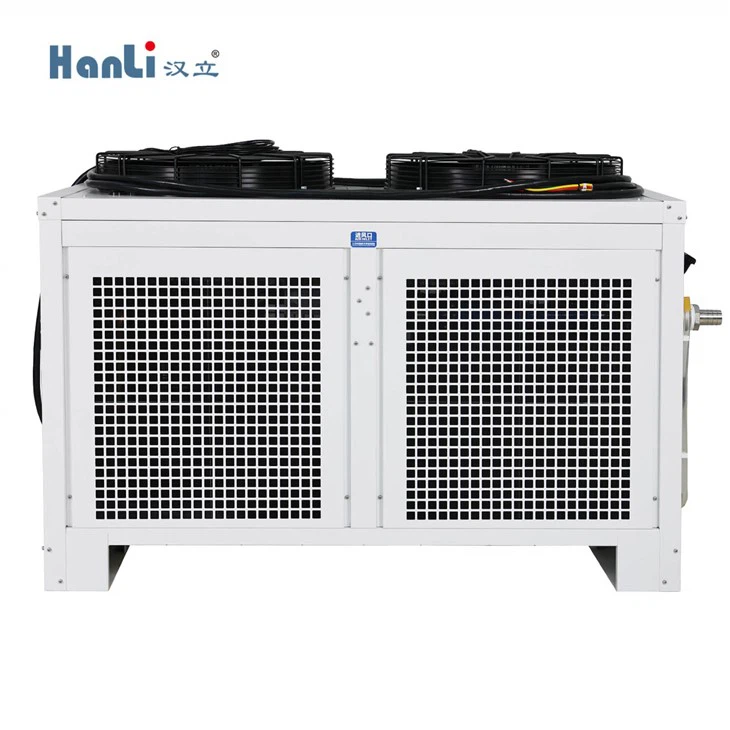

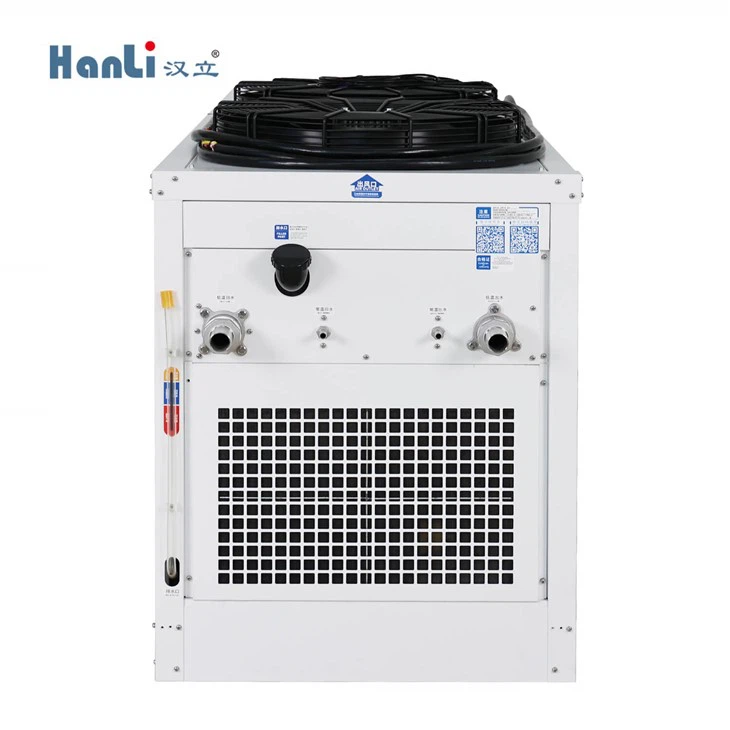

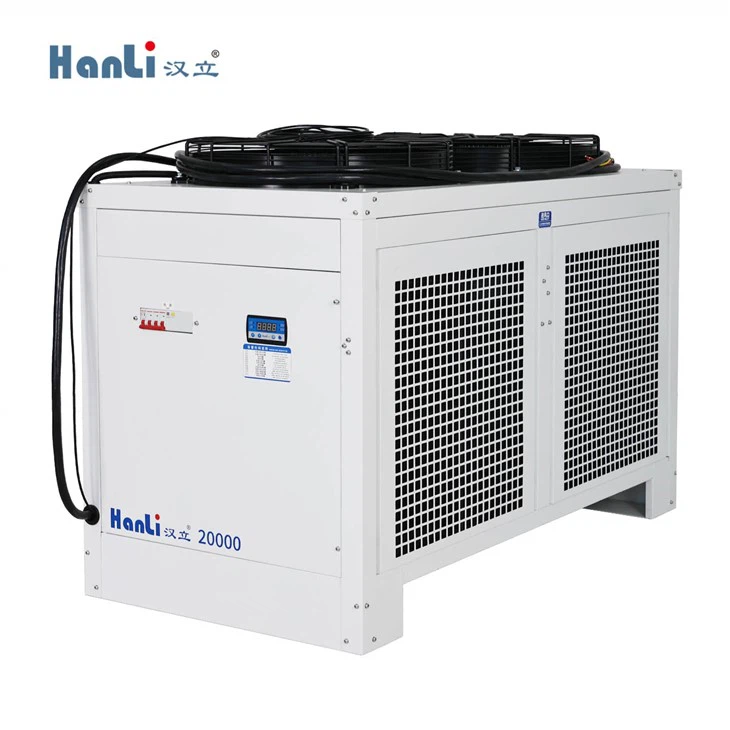

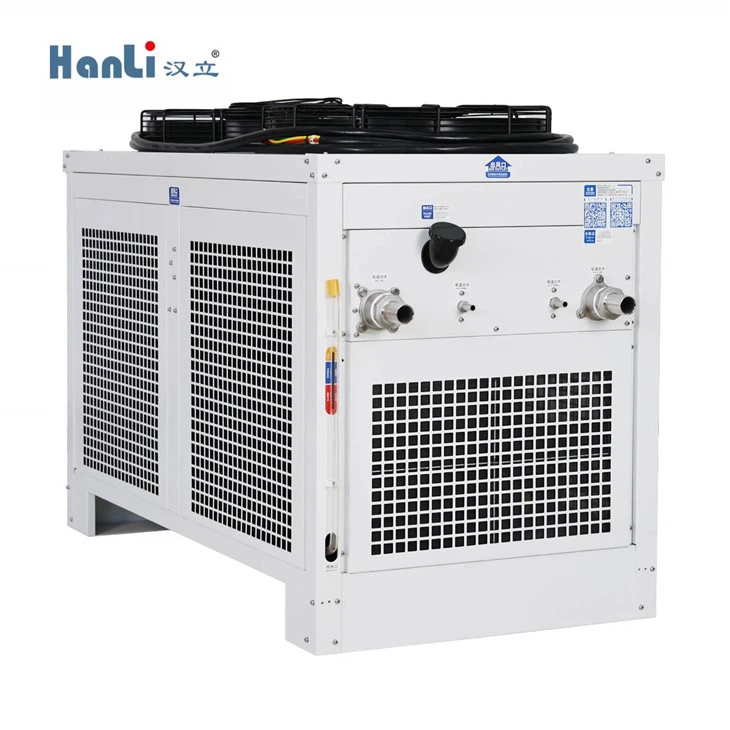

Large Cooling Capacity Water Chiler 20000W
A laser chiller is a cooling system used to regulate the temperature of a fiber laser source. A 20,000W laser chiller is able to cool a 20,000W fiber laser source, ensuring stable and accurate operation. This is important in laser cutting and welding applications where precision is key. High-powered lasers generate a significant amount of heat, and without sufficient cooling, they can experience a decrease in efficiency and lifespan. The chiller operates by circulating coolant through the laser source and dissipating the heat through a heat exchanger. This helps to maintain the laser's performance and prolong its life.
- Product Introduction
Product Features
A water chiller is a device that uses a refrigerant or coolant to cool water and maintain a constant temperature. Laser machines require constant cooling to prevent overheating during operation. The cooling capacity of a chiller is measured in watts, which describes the amount of heat it can dissipate.
A 20,000W water chiller is a high-capacity unit suitable for large industrial laser machines. It can cool the water quickly and efficiently, preventing any damage to the laser tube and extending the life of the machine. The efficiency of the chiller is determined by its operating temperature range, cooling rate, and energy consumption.
When selecting a water chiller for a laser machine, it's essential to consider the specific requirements of the machine to ensure optimal performance. Additionally, regular maintenance is critical for the longevity of the chiller and laser machine.
|
|
Uint |
HL-20000-QG2/2 |
HL-20000-EH-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
3p 380V/60Hz |
|
|
Rated power |
kW |
20.0 |
20.0 |
|
maximum current |
A |
40.0 |
40.0 |
|
Cooling capacity |
kW |
50.0 |
50.0 |
|
Compressor power |
kW |
9.820 |
9.303 |
|
Electric heating power |
kW |
3.0/5.0 |
|
|
Pump power |
kW |
3.0 |
3.0 |
|
Fan power |
kW |
0.55×2 |
0.75×2 |
|
Maximum air volume of the fan |
m³/h |
8400×2 |
8450×2 |
|
Rated Flow of the low temperature end |
L/min |
≥200 |
|
|
Rated pressure of the low temperature end |
bar |
5.0 |
|
|
Maximum pressure of low temperature end |
bar |
6.6 |
|
|
Dimensions of the low temperature end interface |
G2-Φ32mm Pagoda joints*2 |
||
|
Water temperature setting range of low temperature end |
℃ |
21-32 |
|
|
Rated Flow of the high temperature end |
L/min |
4.5 |
|
|
Rated pressure of the high temperature end |
bar |
5.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ13mm quick connector*2 |
||
|
Water temperature setting range of high temperature end |
℃ |
26-35 |
|
|
Water temperature control accuracy |
℃ |
±1 |
|
|
Water Tank |
L |
160 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
247 |
|
|
Net Weight |
kg |
1590×750×1010 |
|
|
Packing dimension |
mm |
256 |
|
|
Gross Weight |
kg |
1670×815× 1060 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
