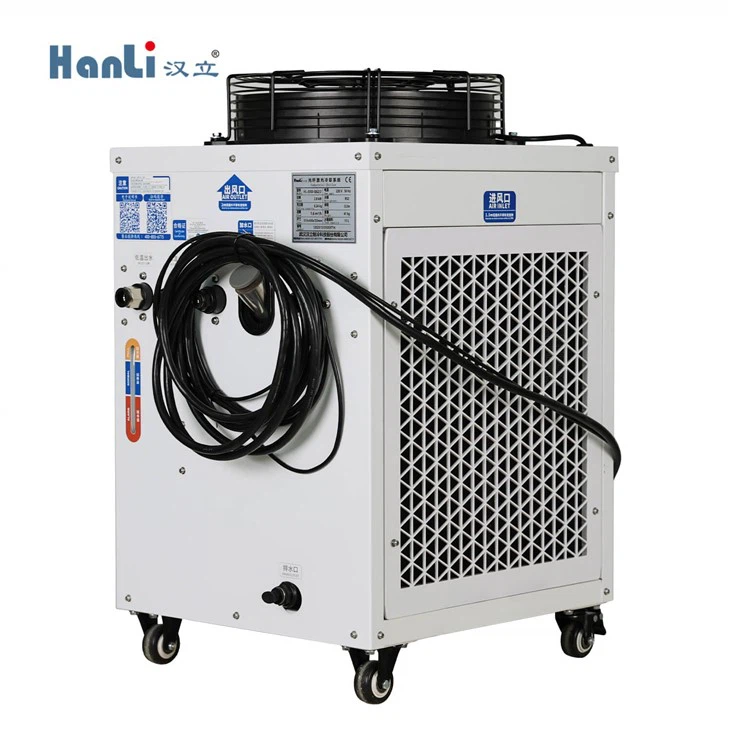

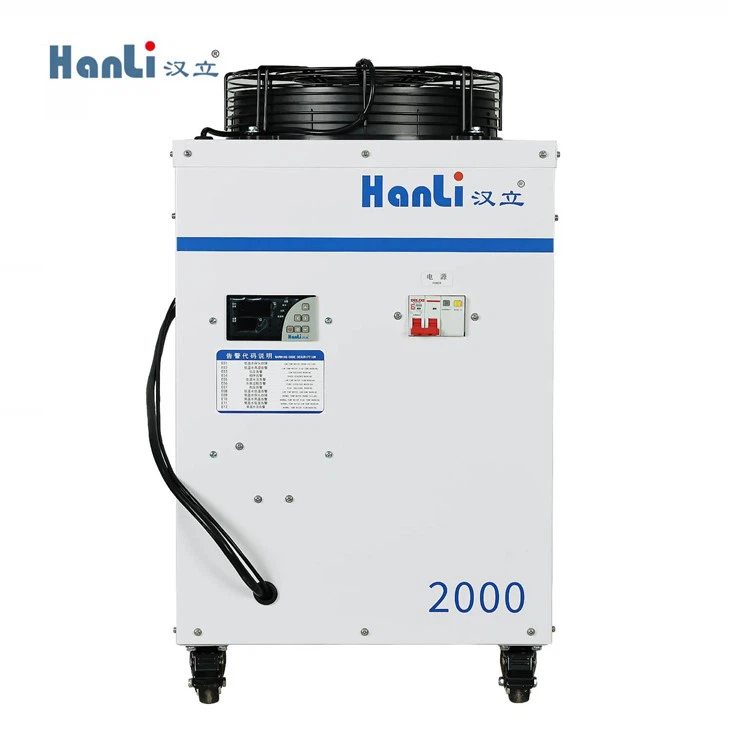

Laser Cutter Chiller 2000w K Model
A laser chiller is the main component and the most important device used in managing laser temperature to insure high quality performance and long life of industrial lasers, medical lasers, military lasers and other laser systems. Laser chillers, Portable Chillers, Rack Mounted Chillers, Water Chillers and Heat Exchangers are completely self-contained devices, able to remove heat from laser heat-dissipating components.
- Product Introduction
Product Features
Water chillers are essential components for maintaining precision cooling in various industrial settings. Among them, laser chillers are the most crucial devices used for managing the temperature of lasers. These chillers ensure high-quality laser performance and long life for industrial, medical, military, and other laser systems.
Laser chillers come in various types such as portable chillers, rack-mounted chillers, and water chillers, all of which are self-contained devices capable of removing heat from laser heat-dissipating components. For instance, a 1500W laser cutting chiller can quickly cool down a 1500W laser source to operating temperature in just a few minutes.
Overall, water chillers play a significant role in enhancing the performance and longevity of laser devices.
|
|
Uint |
|
HL-2000-QG2/2 |
|
Voltage & Frequency |
1p 220V/50Hz |
||
|
Rated power |
kW |
2.8 |
|
|
maximum current |
A |
12.8 |
|
|
Cooling capacity |
kW |
6.7 |
|
|
Compressor power |
kW |
1.32 |
|
|
Electric heating power |
kW |
0.9 |
|
|
Pump power |
kW |
0.36 |
|
|
Fan power |
kW |
0.1 |
|
|
Maximum air volume of the fan |
m³/h |
1920 |
|
|
Rated Flow of the low temperature end |
L/min |
22～24 |
|
|
Rated pressure of the low temperature end |
bar |
3.0 |
|
|
Maximum pressure of low temperature end |
bar |
5.6 |
|
|
Dimensions of the low temperature end interface |
G1/2-Φ16mm quick connector |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
1.2～1.5 |
|
|
Rated pressure of the high temperature end |
bar |
3.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ10mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5℃ |
|
|
Water Tank |
L |
15 |
|
|
Application environment |
℃ |
-20～40℃ |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈64 |
|
|
Machine dimension |
mm |
515×430×725 |
|
|
Net Weight |
kg |
41 |
|
|
Packing dimension |
mm |
555×490×870 |
|
|
Gross Weight |
kg |
47 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
