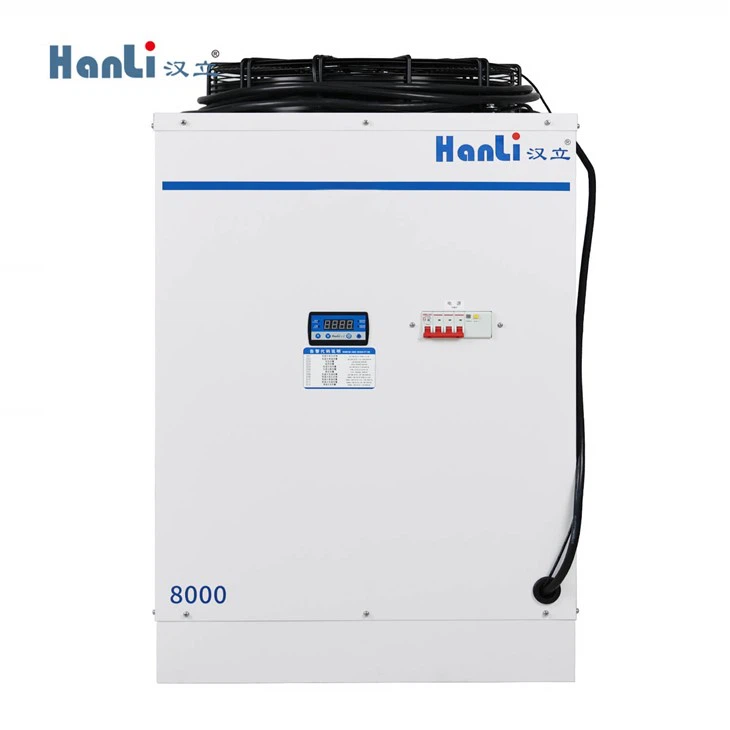

8000w Fiber Laser Cutting Machine Chiller
making it more reliable and efficient. The HL-8000 also comes equipped with advanced safety features such as automatic power-off in case of overheating, high and low-pressure protection, and water flow alarm to ensure that the chiller runs smoothly and to prevent any damage to the laser system. Additionally, the chiller is designed with a user-friendly interface, allowing for easy operation and maintenance. Its compact size and portability make it suitable for a wide range of applications in industries such as medical, cosmetic, electronics, and more. With its superior performance and advanced features, the HL-8000 chiller is an excellent choice for any laser system.
- Product Introduction
Product Features
To meet the different cooling needs for the fiber laser body and head, a dual temperature and dual control design can be implemented.
The design involves two separate cooling systems, each with its own temperature control mechanism. The first system is designed to cool the laser body, which typically requires a lower temperature range. The second system is designed to cool the laser head, which requires a higher temperature range.
Each system can have its own cooling medium and control mechanism, such as a refrigeration unit or a water cooling system. The two systems can be connected in parallel or in series, depending on the specific cooling requirements.
The dual temperature and dual control design ensures that the fiber laser body and head are maintained at their optimal operating temperatures, reducing the risk of damage due to overheating or cooling. It also allows for better temperature control, maximizing the performance and efficiency of the fiber laser system.
The industrial water cooling system HL-8000-QG22 is specifically designed to meet the cooling needs of an 8KW fiber laser cutter. This cooling system is capable of handling high heat loads and ensuring stable performance even under heavy usage.
QUALITY CONTROL
We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
Product Parameters
|
|
Uint |
|
HL-8000-QG2/2 |
|
Voltage & Frequency |
3p 380V/50Hz |
||
|
Rated power |
kW |
9.7 |
|
|
maximum current |
A |
18.5 |
|
|
Cooling capacity |
kW |
15.2 |
|
|
Compressor power |
kW |
4.15 |
|
|
Electric heating power |
kW |
1.6/1.4 |
|
|
Pump power |
kW |
1.85 |
|
|
Fan power |
kW |
0.75 |
|
|
Maximum air volume of the fan |
m³/h |
8400 |
|
|
Rated Flow of the low temperature end |
L/min |
80～88 |
|
|
Rated pressure of the low temperature end |
bar |
4.0 |
|
|
Maximum pressure of low temperature end |
bar |
5.2 |
|
|
Dimensions of the low temperature end interface |
G1-Φ25mm Pagoda joints |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
2.3 |
|
|
Rated pressure of the high temperature end |
bar |
4.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ12mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5 |
|
|
Water Tank |
L |
55 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
70 |
|
|
Net Weight |
kg |
610×665× 1000 |
|
|
Packing dimension |
mm |
76 |
|
|
Gross Weight |
kg |
725×670×1035 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
