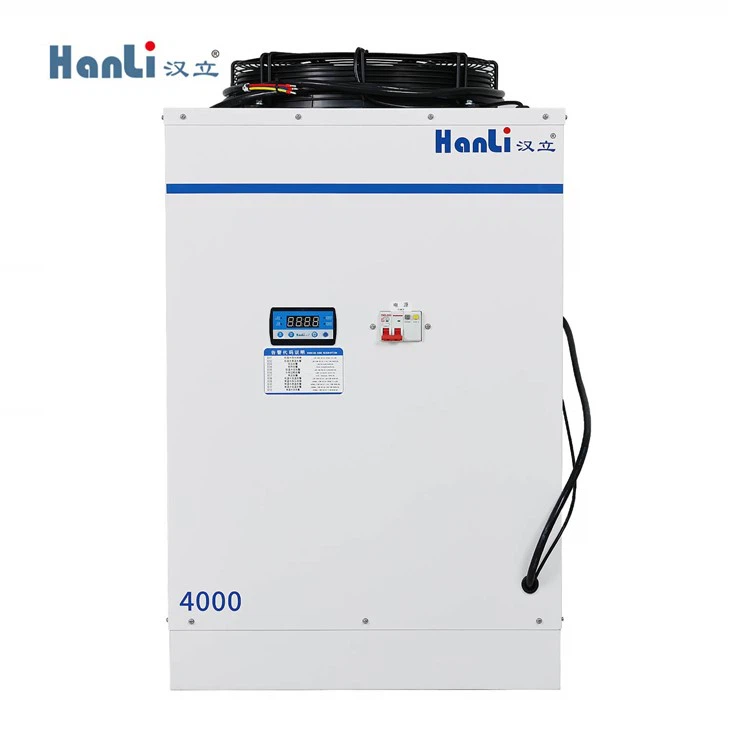

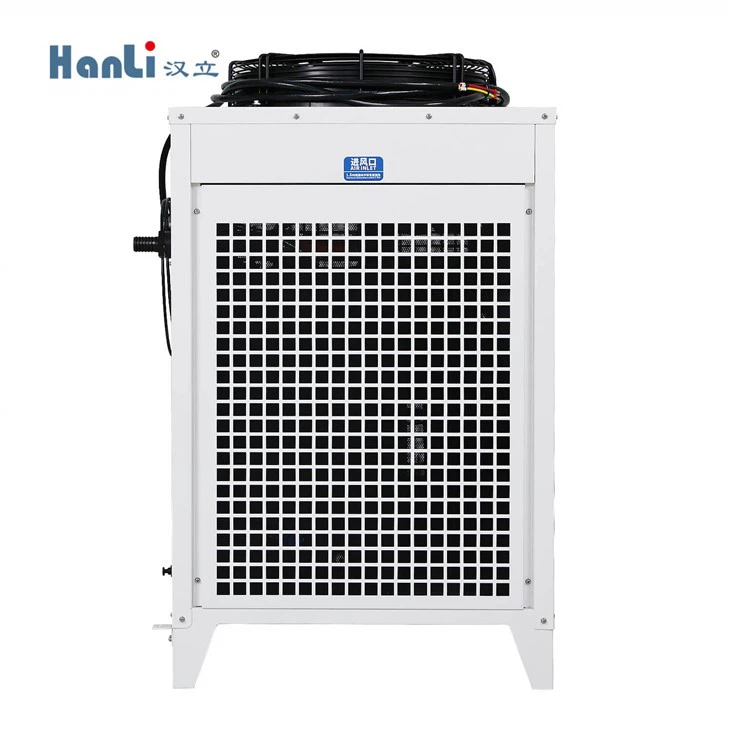

Water Chiller Laser Cutting Machine
Standard laser water chillers possess a refrigeration unit that channels coolant to the process laser tube where heat exchange occurs cooling the laser to optimal temperatures.
- Product Introduction
Product Features
Additionally, the laser water chiller is equipped with a pump that circulates the coolant through the chiller and the laser system. This pump provides a continuous flow of coolant to ensure that the laser system is operating at a consistent temperature.
the chiller has a compact size and a user-friendly interface for easy operation and maintenance. The advanced compressor and cooling system ensure stable and precise temperature control, which is crucial for the performance and longevity of the laser equipment. The HL-4000 chiller also has multiple protection functions to ensure the safety of the system, including high/low-pressure protection, water flow protection, and overheat protection. Overall, this chiller is a reliable and high-performance solution for cooling fiber laser equipment.
|
|
Uint |
|
HL-4000-QG2/2 |
|
Voltage & Frequency |
1p 220V/50Hz |
||
|
Rated power |
kW |
4.5 |
|
|
maximum current |
A |
20.5 |
|
|
Cooling capacity |
kW |
11.3 |
|
|
Compressor power |
kW |
1.94 |
|
|
Electric heating power |
kW |
1.25/0.8 |
|
|
Pump power |
kW |
0.88 |
|
|
Fan power |
kW |
0.18 |
|
|
Maximum air volume of the fan |
m³/h |
4500 |
|
|
Rated Flow of the low temperature end |
L/min |
40～44 |
|
|
Rated pressure of the low temperature end |
bar |
3.0～4.0 |
|
|
Maximum pressure of low temperature end |
bar |
4.1 |
|
|
Dimensions of the low temperature end interface |
G1-Φ25mm ,G3/4-Φ25mm Pagoda joints |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
1.5～2.0 |
|
|
Rated pressure of the high temperature end |
bar |
3.0～4.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ10mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5 |
|
|
Water Tank |
L |
55 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
70 |
|
|
Net Weight |
kg |
610×665× 1000 |
|
|
Packing dimension |
mm |
76 |
|
|
Gross Weight |
kg |
725×670×1035 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
|
|
Uint |
|
HL-4000-QG2/2 |
|
Voltage & Frequency |
1p 220V/50Hz |
||
|
Rated power |
kW |
4.5 |
|
|
maximum current |
A |
20.5 |
|
|
Cooling capacity |
kW |
11.3 |
|
|
Compressor power |
kW |
1.94 |
|
|
Electric heating power |
kW |
1.25/0.8 |
|
|
Pump power |
kW |
0.88 |
|
|
Fan power |
kW |
0.18 |
|
|
Maximum air volume of the fan |
m³/h |
4500 |
|
|
Rated Flow of the low temperature end |
L/min |
40～44 |
|
|
Rated pressure of the low temperature end |
bar |
3.0～4.0 |
|
|
Maximum pressure of low temperature end |
bar |
4.1 |
|
|
Dimensions of the low temperature end interface |
G1-Φ25mm ,G3/4-Φ25mm Pagoda joints |
||
|
Water temperature setting range of low temperature end |
℃ |
21～32 |
|
|
Rated Flow of the high temperature end |
L/min |
1.5～2.0 |
|
|
Rated pressure of the high temperature end |
bar |
3.0～4.0 |
|
|
Dimensions of the high temperature end interface |
G1/2-Φ10mm quick connector |
||
|
Water temperature setting range of high temperature end |
℃ |
26～35 |
|
|
Water temperature control accuracy |
℃ |
22～29.5 |
|
|
Water Tank |
L |
55 |
|
|
Application environment |
℃ |
-20～40 |
|
|
Coolant |
R32 |
||
|
Noise Level |
dB(A) |
≈75 |
|
|
Machine dimension |
mm |
70 |
|
|
Net Weight |
kg |
610×665× 1000 |
|
|
Packing dimension |
mm |
76 |
|
|
Gross Weight |
kg |
725×670×1035 |
|
|
Suitable cooling medium |
Pure water , glycol solution(concentration ≤ 30%) |
||
