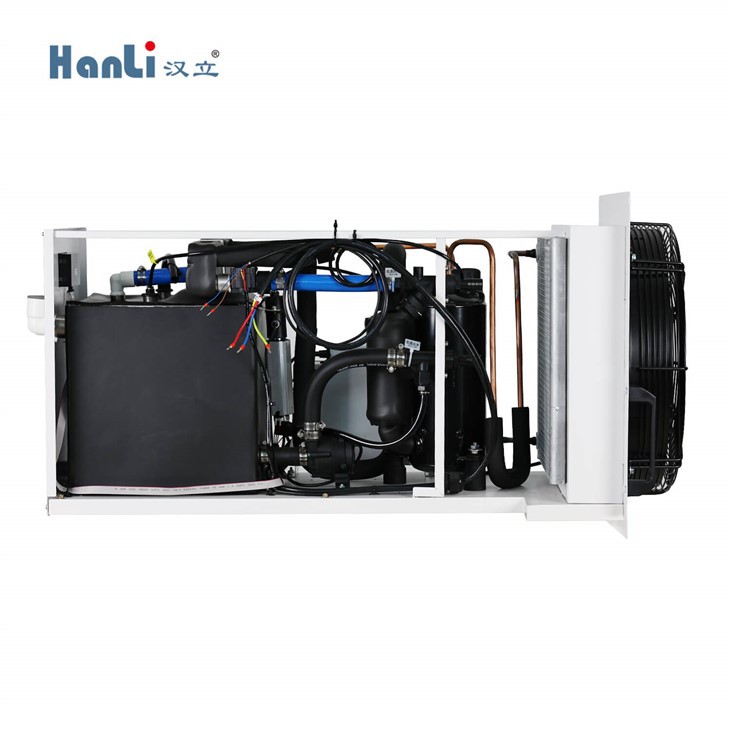

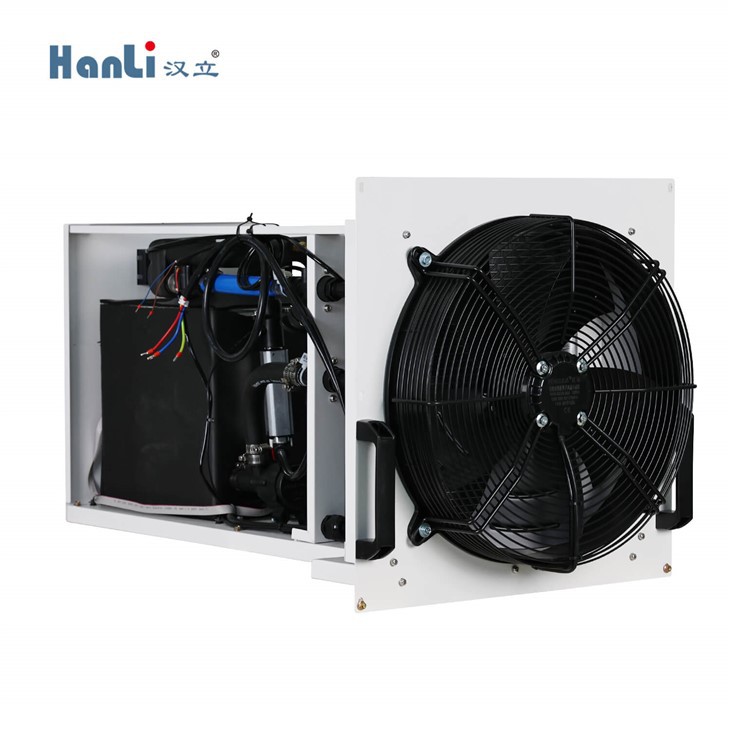

Handheld Laser Welder Chiller 3000w
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Application environment: 0°C ~45°C
- Product Introduction
Product Features
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Application environment: 0°C ~45°C
* Refrigerant: R32
* User-friendly controller interface
* Integrated alarm functions
* Back mounted fill port and visual water level
* Optimized for high performance at low temperatures
* Ready for immediate use
* Efficiency & Environmental protection
The SCL-3000 Rackmount Laser Cooler is designed to provide efficient cooling for fiber lasers and optics laser guns. It features a high-performance water pump and dual temperature control that allows you to achieve precise and reliable cooling for your laser equipment. With a water fill port and drain port mounted on the front and a water level check, this cooler is easy to use and maintain.
The intelligent digital control panel displays the temperature and built-in alarm codes to keep you informed about the cooling process. The SCL-3000 provides a high level of flexibility and mobility, making it an ideal cooling solution for handheld laser equipment, scientific research, and industrial applications. With its rackmount design, this cooler is easy to install and integrate into your existing equipment setup.
Overall, the SCL-3000 Rackmount Laser Cooler is a reliable and efficient cooling solution for your laser equipment. With its high-performance water pump, dual temperature control, and intelligent digital control panel, you can be sure that your laser equipment will always be cool and ready for action.
|
Model |
SCL-3000 |
|
Voltage & Frequency |
AC 1P 220 V |
|
Working power |
50Hz |
|
Working current |
12 A |
|
Machine power |
3.9 kW |
|
Application environment |
0℃<Environment temperature<45℃ , Relative humidity<95% |
|
Tempe.control accuracy |
±1 ℃ |
|
Coolant |
R32 |
|
Cooling capacity |
7.1 kW |
|
Electric heating power |
600W (room temperature) |
|
Rated flow of water pump |
1.2 m³/h |
|
Max.pump lift |
40 m |
|
Pump power |
0.48 kW |
|
Tank volume |
13 L |
|
Laser nozzle interface |
G1/2*φ20mm Pagoda hose connector |
|
QBH head nozzle interface |
G1/2*Φ6mm Quick connector |
|
Dimension |
1060×522×525 (mm) |
|
N.W |
44.5 kg |
|
Packing size |
1200×960×696 (mm) |
|
G.W |
100 kg (two sets packing) |
|
Matching laser source |
3000W Continuous fiber lase (Matching BWT,Max,Raycus ,RECI laser) |
