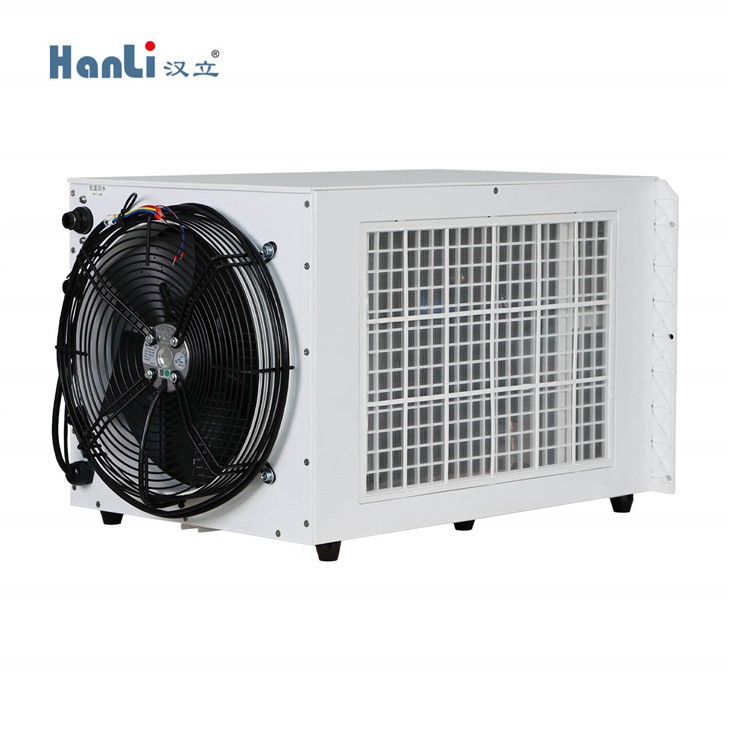

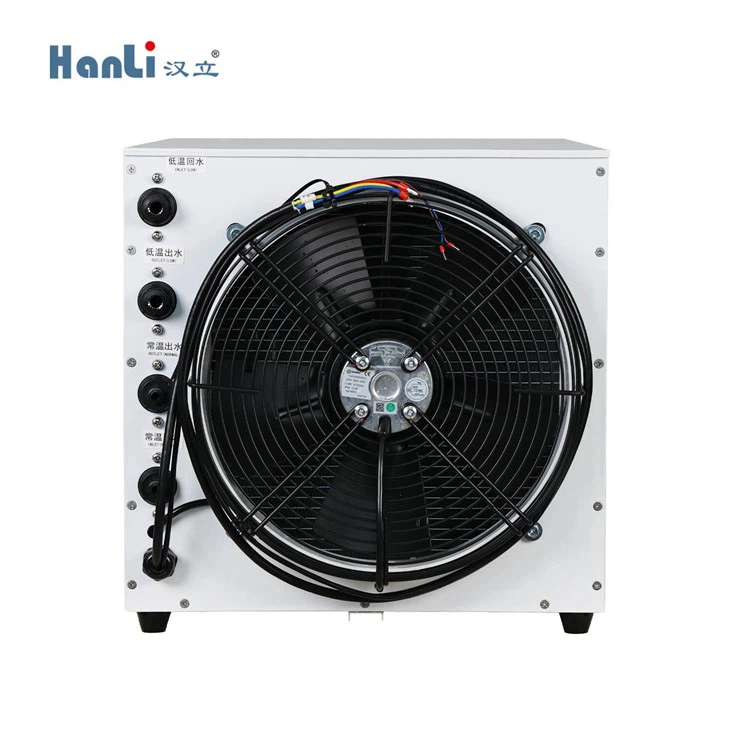

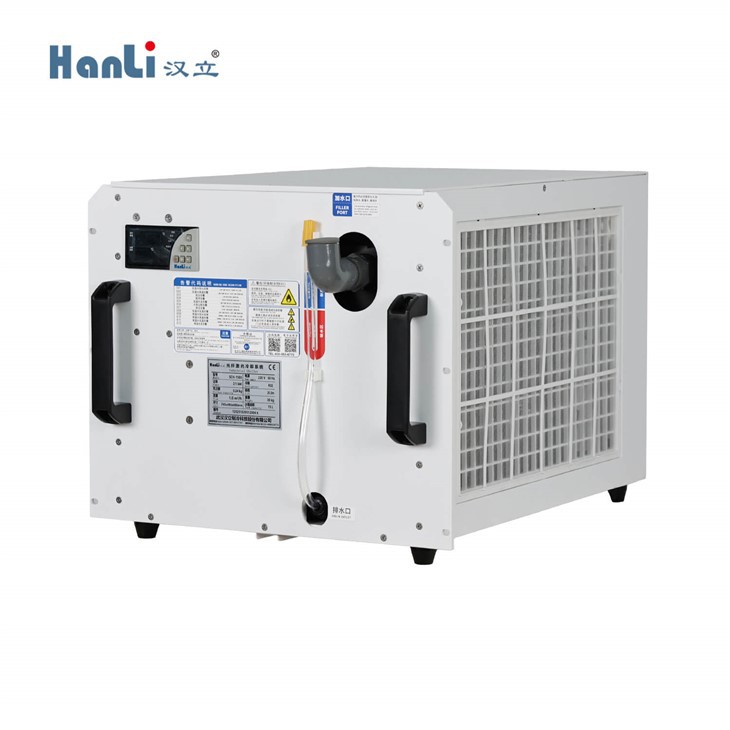

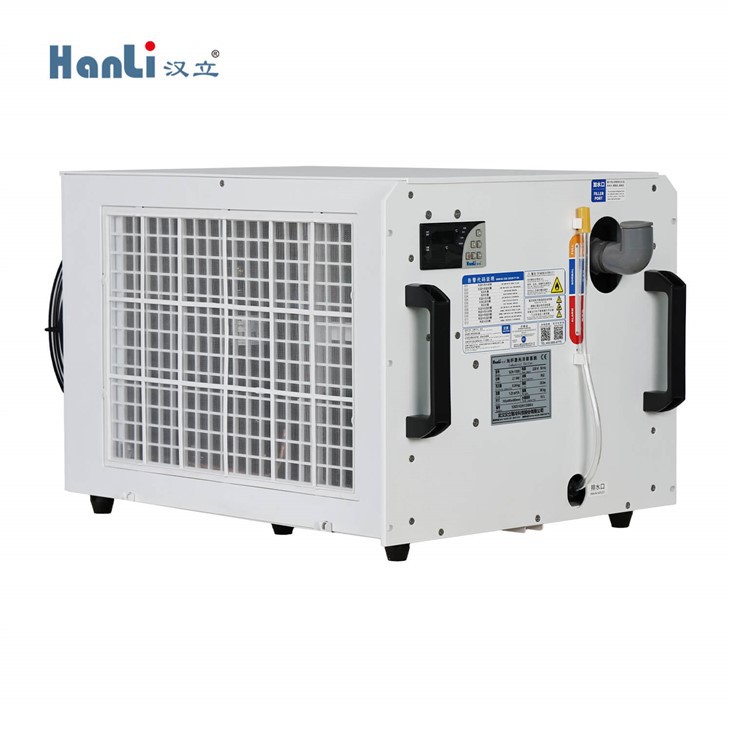

Welding Chiller Sch-1500
Rack Mount Water Chiller SCH-1500 for 1.5KW Handheld Laser Welding Machine
Rack Mount Water Chiller SCH-2000 for 2KW Handheld Laser welder
*Movable, space-saving，Lightweight
*Lightweight
- Product Introduction
Product Features
Rack Mount Water Chiller SCH-1500 for 1.5KW Handheld Laser Welding Machine
Rack Mount Water Chiller SCH-2000 for 2KW Handheld Laser welder
*Movable, space-saving,Lightweight
*Lightweight
|
Model |
SCH-1500 |
SCH-2000 |
||||
|
Voltage & Frequency |
AC 1P 220 V |
|||||
|
Working power |
50Hz |
60Hz |
50Hz |
60Hz |
||
|
Working current |
9.5 A |
10.9 A |
10.5 A |
10.9 A |
||
|
Machine power |
2.1 kW |
2.4 kW |
2.3 kW |
2.4 kW |
||
|
Application environment |
-20℃<Ambient temperature＜40℃, Relative humidity< 95% |
|||||
|
Tempe.control accuracy |
± 1.5℃ |
|||||
|
Coolant |
R32 |
|||||
|
Cooling capacity |
4.5 kW |
5.6 kW |
||||
|
Electric heating power |
800W (Low temperature) |
800W (Normal temperature) |
||||
|
Rated flow of water pump |
1.2 m³/h |
1.6 m³/h |
||||
|
Max.pump lift |
40 m |
68 m |
68 m |
|||
|
Pump power |
0.26 kW |
0.32 kW |
0.32 kW |
|||
|
Tank volume |
15 L |
|||||
|
Laser nozzle interface |
Φ12mm Pneumatic PU tubing |
|||||
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
|||||
|
Dimension |
745×485×430 (mm) |
745×485×430 (mm) |
||||
|
N.W |
27 kg |
27 kg |
29 kg |
27 kg |
||
|
Packing size |
800×515×580 (mm) |
800×515×580 (mm) |
||||
|
G.W |
35 kg |
35 kg |
37 kg |
35 kg |
||
|
Matching laser source |
1500W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
2000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
||||
