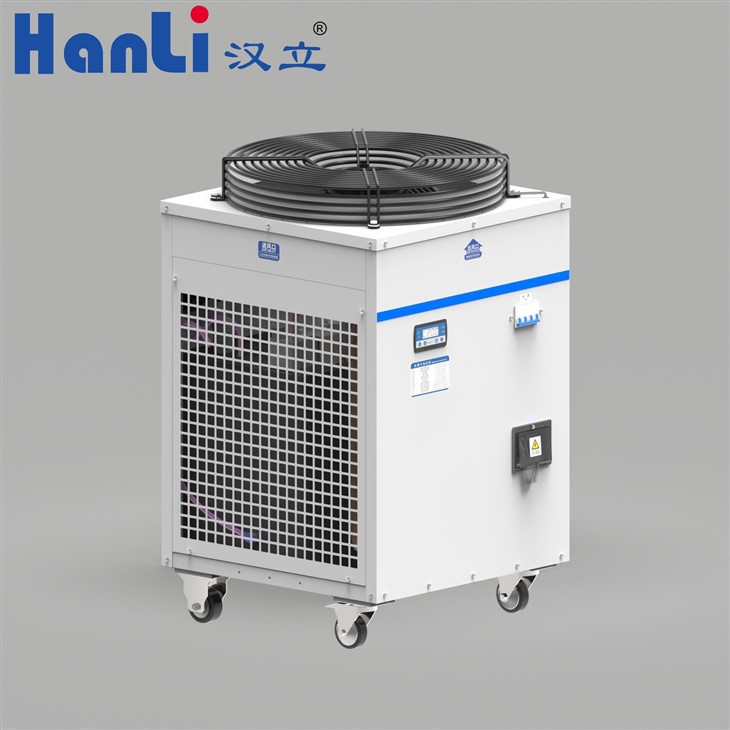

Hanli Energy-Saving Induction Heating Cooler 5hp

	GYH-05-QG
Voltage&Frequency	3p380V/50Hz
maximumcurrent	9.1A
Ratedpower	6.0kW
Horsepower	5hp
Compressorpower	3.64kw
Pumppower	0.75kw
Fanpower	0.65kw
Maximumairvolumeofthefan	8400m³./h
RatedWaterFlow	60--66L/min
Maximumpressure	4.5bar
Dimensionsoftheinterface	G3/4-Φ25mmquick connector
Watertemperaturesettingrange	21-32℃
Watertemperaturecontrolaccuracy	±1℃
WaterTank	38L
Applicationenvironment	5-40℃
Coolant	R32
NoiseLevel	≈75dB(A)
NetWeight	90KG
Grossweight	102KG
Machinedimension	665×610×990mm
Packingdimension	710×670×1160mm
Suitablecoolingmedium	Purewater,glycol solution(concentration≤30%)v

Thermal induction welding is a technology that uses high-frequency induction current to generate heat to achieve welding. The following is a detailed introduction:

Principle

An alternating magnetic field is generated by a high-frequency induction coil. When the weldment is placed in the magnetic field, an induced current will be generated inside the weldment. Since the weldment itself has resistance, heat will be generated when the current passes through, causing the connection part of the weldment to quickly heat up to a molten state, and welding will be achieved under pressure.

Features

- Fast heating speed: The weldment can reach the required welding temperature in a short time, improving production efficiency.

- High welding quality: The heat is concentrated in the welding part, the heat-affected zone is small, the deformation and structural changes of the weldment can be reduced, and the weld quality is good.

- Easy to control: The welding temperature and heating area can be accurately controlled by adjusting the parameters such as the size, frequency and time of the induction current.

- Clean and environmentally friendly: There is no open flame, smoke and harmful gas emissions, and the working environment is good.

Application

Widely used in electronics, automobiles, aerospace, medical equipment and other fields. For example, in the electronics industry, it is used to weld the pins of electronic components; in automobile manufacturing, it can be used to weld automobile parts such as radiators, filters, etc.; in the aerospace field, it is used to weld some metal parts with high precision and high performance requirements.
