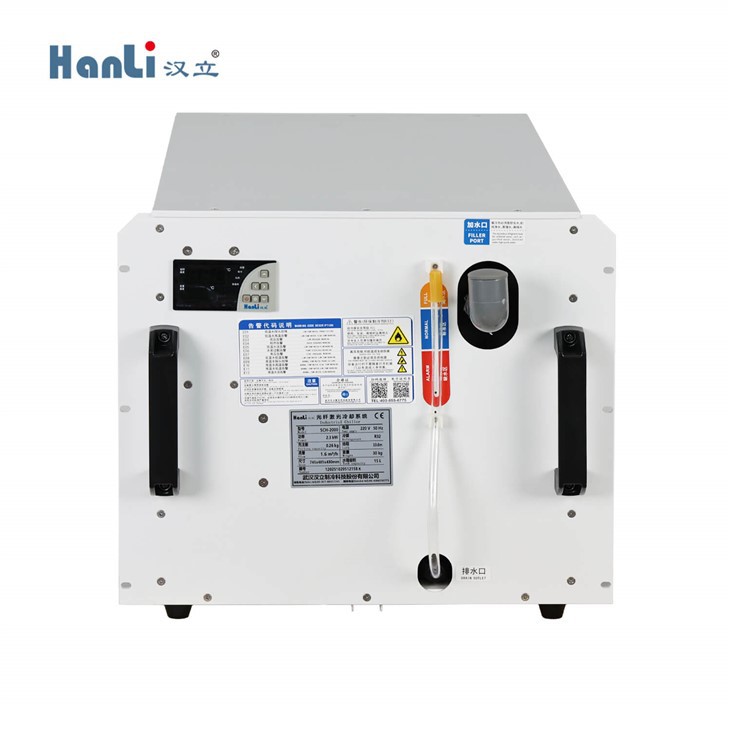

Rack Mount Water Chiller 2kw
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Application environment: 0°C ~45°C
- Product Introduction
Product Features
The dual cooling circuit and active cooling technology ensure temperature stability with an accuracy of ±1°C. This makes it suitable for use in environments with temperatures ranging from 0°C to 45°C. The refrigerant used is R32, which is environmentally friendly. The user-friendly controller interface comes with integrated alarm functions to warn of any deviations from the desired temperature. Additionally, the back-mounted fill port and visual water level make it easy to use. It is optimized for high performance at low temperatures and is ready for immediate use. Overall, it offers high efficiency and environmental protection.
|
Model |
SCH-1500 |
SCH-2000 |
|||||
|
Voltage & Frequency |
AC 1P 220 V |
||||||
|
Working power |
50Hz |
60Hz |
50Hz |
60Hz |
|||
|
Working current |
9.5 A |
10.9 A |
10.5 A |
10.9 A |
|||
|
Machine power |
2.1 kW |
2.4 kW |
2.3 kW |
2.4 kW |
|||
|
Application environment |
-20℃＜Ambient temperature＜40℃, Relative humidity＜95% |
||||||
|
Tempe.control accuracy |
±1.5℃ |
||||||
|
Coolant |
R32 |
||||||
|
Cooling capacity |
4.5 kW |
5.6 kW |
|||||
|
Electric heating power |
800W (Low temperature) |
800W (Normal temperature) |
|||||
|
Rated flow of water pump |
1.2 m³/h |
1.6 m³/h |
|||||
|
Max.pump lift |
40 m |
68 m |
68 m |
||||
|
Pump power |
0.26 kW |
0.32 kW |
0.32 kW |
||||
|
Tank volume |
15 L |
||||||
|
Laser nozzle interface |
Φ12mm Pneumatic PU tubing |
||||||
|
QBH head nozzle interface |
Φ6mm Pneumatic Quick connector |
||||||
|
Dimension |
745×485 ×430 (mm) |
745×485 ×430 (mm) |
|||||
|
N.W |
27 kg |
27 kg |
29 kg |
27 kg |
|||
|
Packing size |
800 ×515 ×580 (mm) |
800 ×515 ×580 (mm) |
|||||
|
G.W |
35 kg |
35 kg |
37 kg |
35 kg |
|||
|
Matching laser source |
1500W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
2000W Continuous fiber laser (Matching BWT,Max,Raycus ,RECI laser) |
|||||
